Eaton / Westinghouse JA3225N - 225A 3 Pole Molded Case Switch

Brand Eaton / Westinghouse
SKU JA3225N
4.5
Rated 4.5 out of 5 stars
2 Reviews

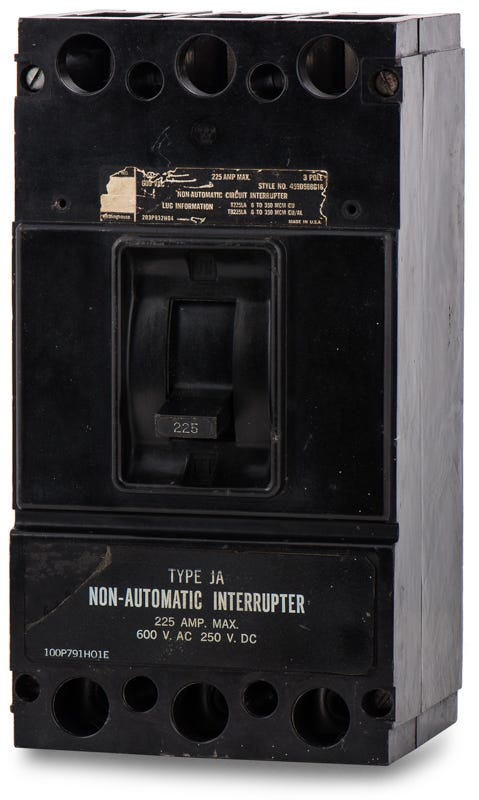

Westinghouse JA3225N 3 Pole Circuit Breaker
Free Shipping Over $99
Westinghouse JA3225N 3 Pole Circuit Breaker

Eaton / Westinghouse JA3225N - 225A 3 Pole Molded Case Switch

Brand Eaton / Westinghouse
SKU JA3225N
4.5
Rated 4.5 out of 5 stars
2 Reviews
Select Item Condition
Earn 566 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more
Westinghouse JA3225N 3 Pole Circuit Breaker

Eaton / Westinghouse JA3225N - 225A 3 Pole Molded Case Switch

Re-Certified

$566.23 No stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Part of the legacy J-Frame series, the Eaton JA3225N is a 3-pole, 225A molded case switch. It functions as a non-automatic disconnect, providing safe circuit isolation without overcurrent protection. This bolt-on unit installs into older Westinghouse panelboards and motor control centers. It serves as an exact replacement, though it is officially replaced by the JDB3250K. Rated for up to 600VAC, it delivers a 22kAIC withstand rating at 480V when protected by an upstream device.

Specifications

Brand Eaton / Westinghouse
Series JA
Part Number JA3225N-R
Amperage 225A
Voltage 240VAC, 480VAC, 600VAC, 250VDC
Poles 3
Phase 3
AIC Rating 25kA @ 240VAC, 22kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Westinghouse Panelboards, Switchboards, Motor Control Centers
Trip Technology Magnetic Only
Wire Gauge 4 AWG - 350 kcmil
Max Wire 350 kcmil
Min Wire 4 AWG
Available Options Auxiliary Switch, Shunt Trip, Undervoltage Release
Accessories Lugs
Standards NEMA AB-1, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features Molded Case Switch, Non-Automatic
