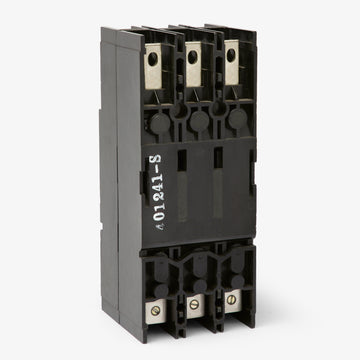

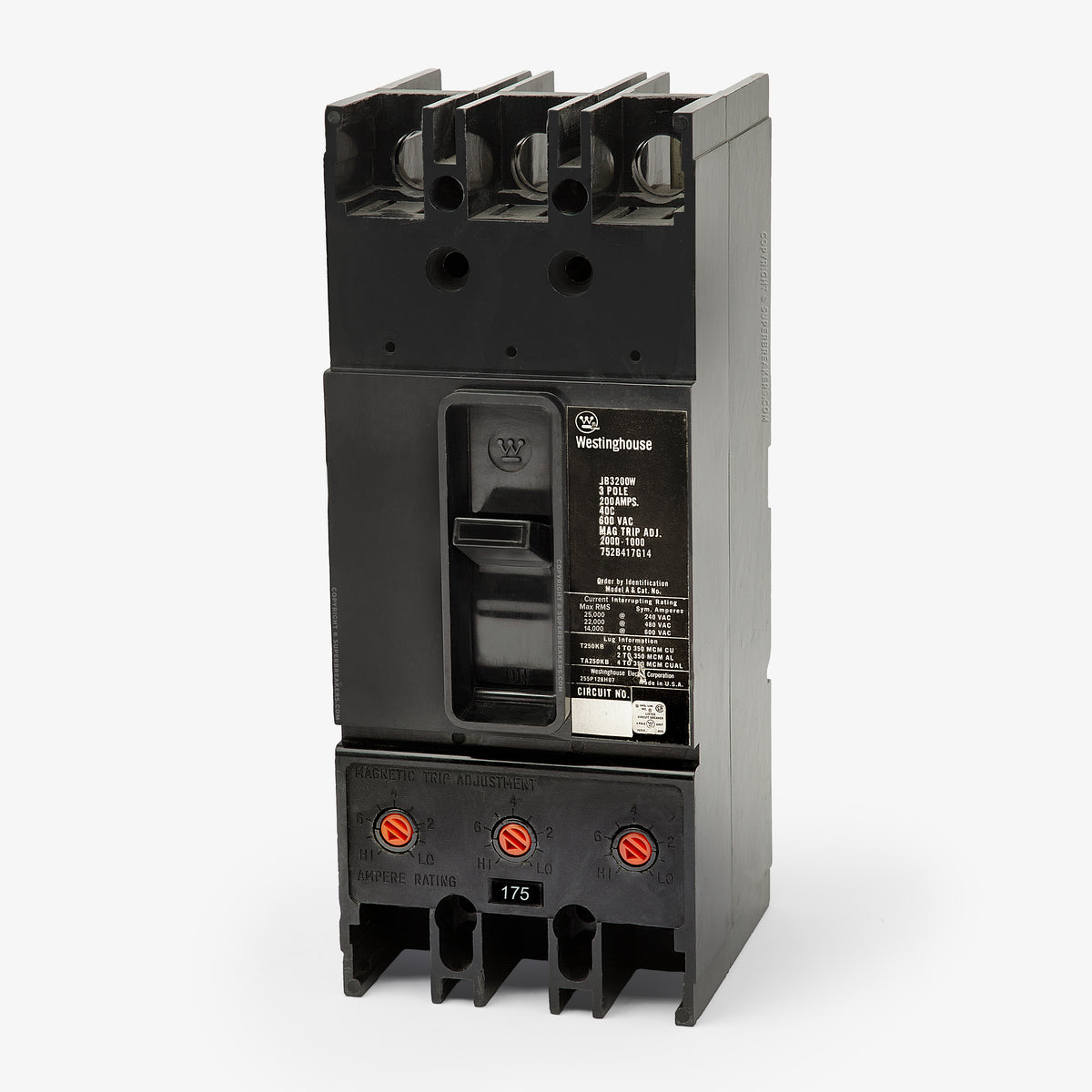

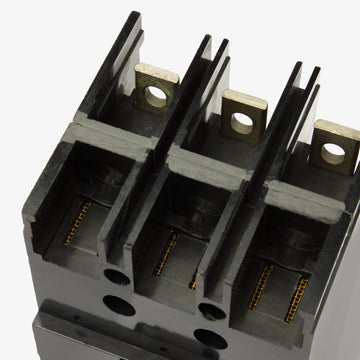

Eaton / Westinghouse JB3175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
JB3175
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
JB3175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse JB3175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
150A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial facilities, the Eaton JB3175 is a 3-pole, 175A molded case circuit breaker. Belonging to the proven Series C J-Frame line, it delivers robust protection for heavy-duty switchboards. Designed for seamless compatibility, this bolt-on breaker mounts into Westinghouse and Eaton Pow-R-Line panelboards. It is an exact substitute for JD3175 units and has been succeeded by the JDB3175. Delivering 22 kAIC at 480VAC, it includes an adjustable magnetic trip.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Series | JB |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | JB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse Panelboards, Eaton Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489, Federal Specification W-C-375b |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersIs the JB3175 interchangeable with the JD3175 or JDB3175?
Yes. The JB3175 is an exact substitute for JD3175 units in compatible panelboards. It has also been succeeded by the newer JDB3175 catalog number, which can be used as a direct replacement.
How do I set the adjustable magnetic trip on the JB3175?
The magnetic trip dial allows you to adjust the instantaneous short-circuit pickup from 5 to 10 times the continuous amp rating. For this 175A breaker, the trip range can be set anywhere between 875A and 1750A to coordinate with downstream devices.

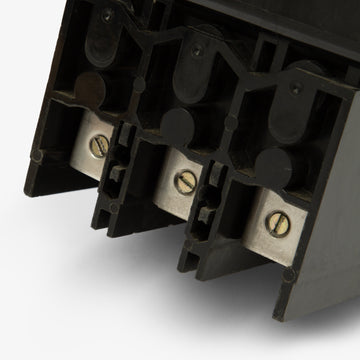

What type of wire connections does the JB3175 support?
The breaker includes feed-thru lug terminals that accept either copper or aluminum conductors. The supported wire gauge range is 4 AWG to 350 kcmil.
What equipment is the JB3175 designed to mount in?
This bolt-on J-frame breaker is engineered specifically for Eaton Pow-R-Line panelboards, legacy Westinghouse panelboards, switchboards, and motor control centers.
Can the thermal trip point be adjusted on this breaker?
No. The JB3175 features a fixed thermal element for long-time overload protection at 175A. Only the instantaneous magnetic trip function is adjustable.
Can the JB3175 be used in DC applications?
Yes, this breaker is rated for use in DC circuits up to 250VDC, where it provides an interrupting capacity of 10kA.
