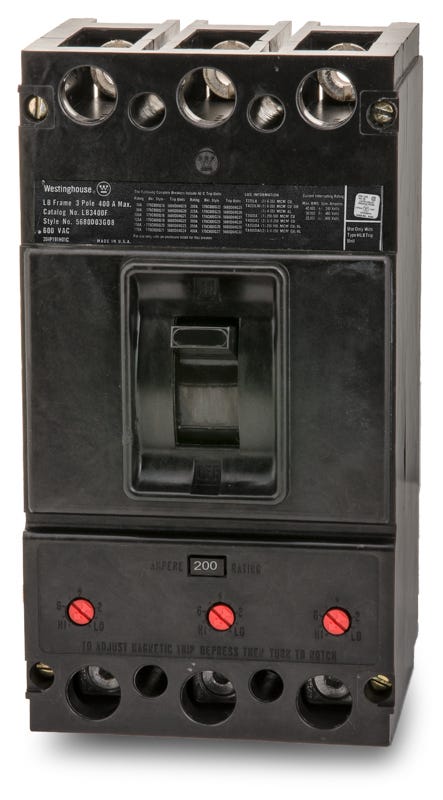

Eaton / Westinghouse LB3200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
LB3200
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
LB3200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse LB3200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
250A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Eaton LB3200 is a 200A, three-pole molded case circuit breaker from the legacy L-Frame series. It provides reliable thermal-magnetic protection for heavy-duty distribution systems. This bolt-on MCCB installs into older Westinghouse panelboards, switchboards, and motor control centers. It serves as an exact physical match for obsolete units, avoiding the need for a JD3200 adapter kit. Rated 42kAIC at 240V, it features an interchangeable trip unit.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | LB3200-R |
| Series | LB |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | #6 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | #6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Product FAQs
5 answersWhat types of enclosures is the LB3200 compatible with?
This breaker is designed for installation in legacy Westinghouse panelboards, switchboards, and motor control centers.
Can the LB3200 be used for reverse feed applications?
Yes, this three-pole molded case circuit breaker supports reverse feed applications.
Does the LB3200 require an adapter kit to replace older L-Frame breakers?
No, it serves as an exact physical match for obsolete Westinghouse L-Frame units, eliminating the need for a JD3200 adapter kit during replacement.
How does the trip adjustability work on the LB3200?
The breaker features a fixed thermal trip for overload protection and an adjustable magnetic trip, which allows electricians to set the instantaneous short-circuit response threshold to match specific load requirements.
Is the trip unit on the LB3200 interchangeable?
Yes, this breaker is constructed with an interchangeable trip unit, meaning the trip mechanism can be replaced or upgraded without needing to remove the entire breaker frame from the panel.
