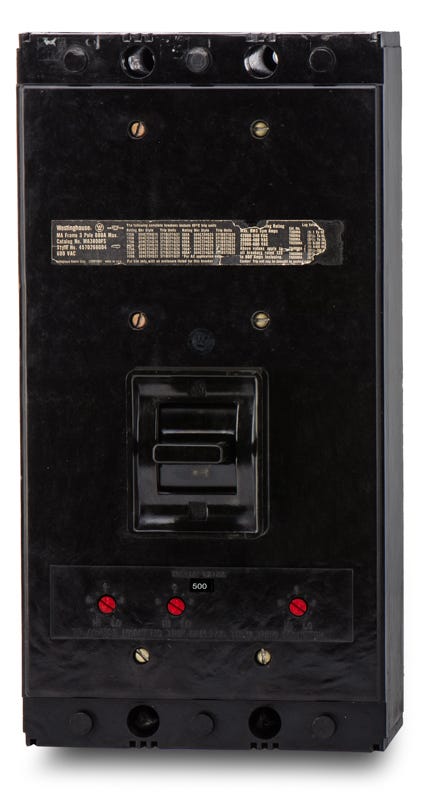

Eaton / Westinghouse MA3500S Molded Case Circuit Breaker
- 500A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
MA3500S
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
MA3500S
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse MA3500S-R - 500A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
600A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
700A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy Westinghouse M-Frame series, this 500A MCCB delivers robust overcurrent protection. The 3-pole breaker utilizes proven thermal-magnetic trip technology. Designed to fit older infrastructure, it bolts into Westinghouse PRL4 panelboards and motor control centers. It provides an exact cross-reference for HMA3500 and MDL3500 replacements. Capable of handling 42kAIC at 240V, the unit includes an interchangeable trip unit and a Saf-T-Vue window for enhanced safety.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | MA3500S-R |
| Series | MA |
| Amperage | 500A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse PRL4 Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Product FAQs
5 answersIs the Westinghouse MA3500S still in active production?
No, the MA3500S is an obsolete legacy M-Frame circuit breaker originally manufactured by Westinghouse (now Eaton). For new installations or direct modern replacements, Eaton recommends the Series C MDL3500.
What enclosures and panelboards are compatible with the MA3500S?
This bolt-on breaker is specifically designed to fit into vintage Westinghouse PRL4 panelboards, switchboards, and motor control centers.
How is the trip unit configured on this breaker?
The MA3500S features an interchangeable thermal-magnetic trip unit. It provides fixed thermal protection for overloads (Long-Time) and an adjustable magnetic dial for short-circuit (Instantaneous) protection.
Can the MA3500S replace an HMA3500 breaker?
Both breakers share the same physical M-Frame dimensions and mounting footprint. However, the HMA3500 is a high-interrupting version. You can only use the MA3500S as a replacement if your system's available fault current does not exceed its standard interrupting ratings.
How are the wire connections made on the MA3500S?
As a bolt-on breaker, the line side typically bolts directly to the panelboard bus. The load side is equipped with mechanical lug terminals to accept the outgoing conductors.
