Eaton / Westinghouse MCP0358RC Motor Circuit Protector
- 7A
- 3 Pole
- Unit Mount
Quantity

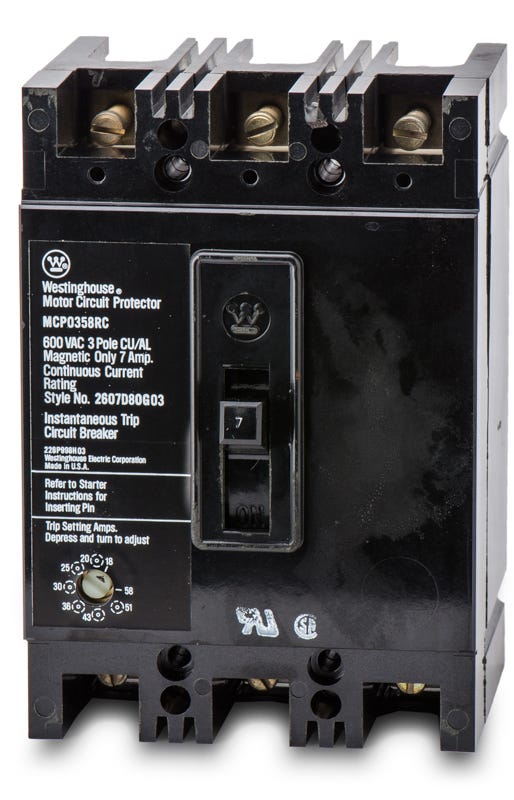

Eaton / Westinghouse MCP0358RC - 7A 3 Pole Motor Circuit Protector
New
Quantity
Description
Built specifically for heavy-duty motor circuits, this 7-amp magnetic-only protector delivers reliable short-circuit interruption. It works in tandem with separate overload relays to ensure complete motor safety. This unit-mount component integrates into NEMA Size 0 combination starters and motor control centers. It acts as an exact replacement for the HMCP007C0C, ensuring a perfect fit for older enclosures. An 18-58A adjustable trip and factory-installed shunt trip provide advanced control.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | MCP0358RC |
| Series | MCP |
| Amperage | 7A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 14kA @ 240VAC, 14kA @ 480VAC, 10kA @ 600VAC |
| Amperage Range | 18-58A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Combination Starters, Motor Control Centers, NEMA Size 0 Motor Starters |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Pin |
|---|---|
| Accessories | Copper Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5.1, IEC 157-1, NEMA AB 1, UL 489 |
| Approval | CSA, UR |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector |
