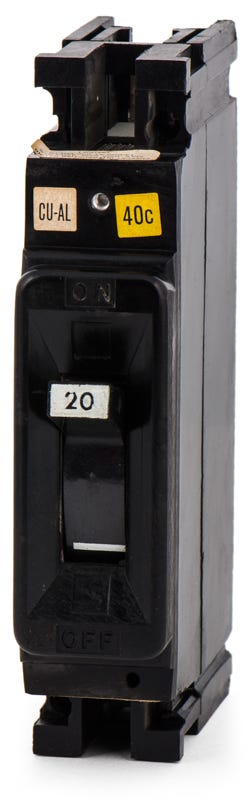

Federal Pacific NEF213020 Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Federal Pacific
NEF213020
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NEF213020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

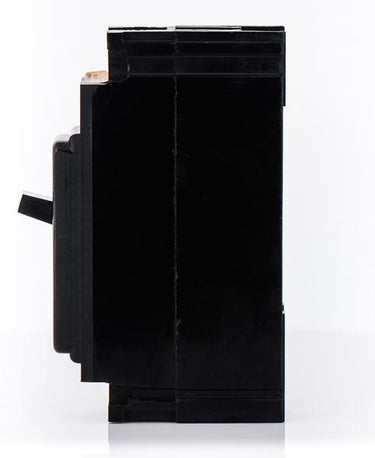

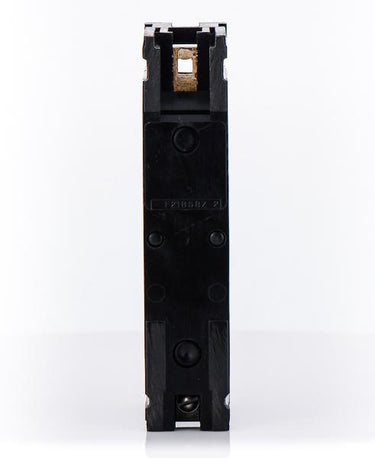

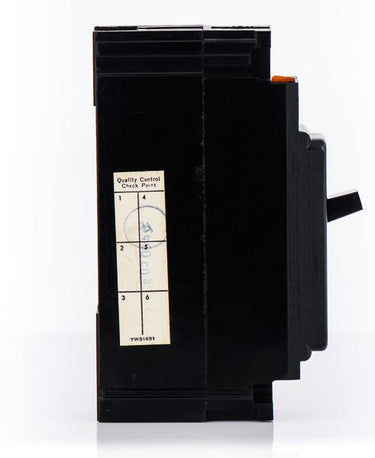

Federal Pacific NEF213020 - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
30A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial facilities, the NEF213020 ensures continuous protection for 277VAC branch circuits. This 20-amp, single-pole breaker integrates seamlessly into legacy Federal Pacific NEF panelboards, offering a reliable bolt-on connection that resists vibration. Delivering a 14 kAIC interrupting rating at 277V and 25 kAIC at 120V, it utilizes non-interchangeable thermal-magnetic trip technology.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NEF213020-R |
| Series | NEF |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 14kA @ 277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NEF Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed, Vibration Tested |
Product FAQs
6 answersWhat type of panelboard requires the NEF213020 circuit breaker?
This specific breaker is engineered exclusively for legacy Federal Pacific NEF commercial panelboards. It utilizes a bolt-on connection and will not fit in standard residential FPE Stab-Lok load centers.
How is the NEF213020 secured inside the panel?
It features a bolt-on mounting style that fastens directly to the panelboard bus. This provides a secure, vibration-resistant connection commonly required in commercial and industrial environments.
What wire sizes are compatible with the terminal lugs on this 20A breaker?
The integrated load-side lugs accommodate a wide range of wire sizes from 14 AWG to 2 AWG, allowing flexibility for voltage drop considerations on long commercial wire runs.
Can the NEF213020 be used in DC control circuits?
Yes, while primarily used for 120V or 277V AC branch circuits, this thermal-magnetic breaker is also rated for up to 125V DC applications.
How does the trip unit on the NEF213020 operate?
It utilizes a fixed thermal-magnetic (LI) trip mechanism. The thermal element provides a long-time delay for standard overloads, while the magnetic element offers instantaneous tripping during severe short circuits.
Is the Federal Pacific NEF213020 still actively manufactured?
Federal Pacific Electric (FPE) is no longer in operation. The NEF213020 is a legacy replacement part sourced to maintain and service existing NEF series panelboards without requiring a full system retrofit.
