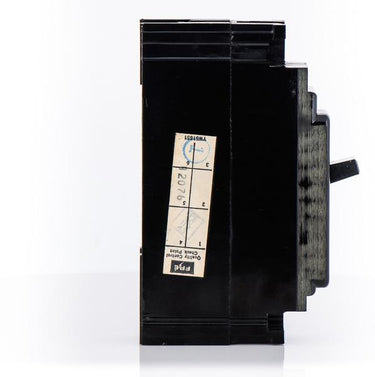

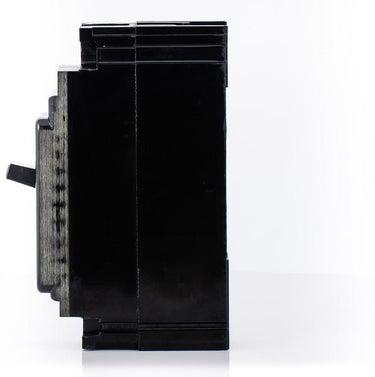

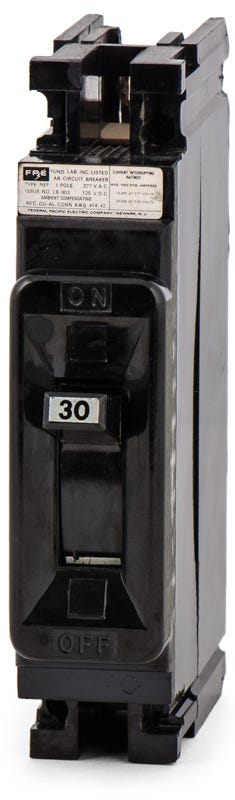

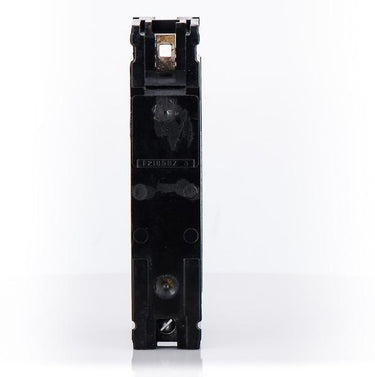

Federal Pacific NEF213030 Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Federal Pacific
NEF213030
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NEF213030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NEF213030 - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the Federal Pacific NEF213030 delivers 30 amps of reliable overcurrent protection. This single-pole molded case circuit breaker provides essential long-time and instantaneous fault clearing for aging electrical systems without requiring panel upgrades. The unit mounts into discontinued Federal Pacific NEF and CDP panelboards using a standard bolt-on configuration.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NEF213030-R |
| Series | NEF |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 14kA @ 277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NEF Panelboards, CDP Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm, Undervoltage Release |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Vibration Tested, Reverse Feed Suitable |
Product FAQs
6 answersCan I install the NEF213030 in a standard residential load center?
No. The NEF213030 is a commercial-grade N-frame molded case circuit breaker designed specifically for Federal Pacific NEF and CDP panelboards. It features a bolt-on connection and will not fit in standard residential plug-on load centers.
Is the Federal Pacific NEF213030 still in active production?
Federal Pacific Electric (FPE) is no longer in business, making original NEF series breakers legacy components. However, exact-fit replacements and verified original units are used to maintain existing NEF and CDP panelboards without requiring a full system upgrade.
What type of trip unit is used in the NEF213030?
This breaker utilizes a fixed thermal-magnetic trip unit with factory-set long-time and instantaneous (LI) trip functions. It provides reliable overcurrent and short-circuit protection but cannot be adjusted in the field.
Does the NEF213030 require a specific mounting hardware kit?
It mounts directly into compatible Federal Pacific NEF and CDP panelboards using a standard bolt-on configuration. Ensure the panel busbars are de-energized and in good condition before bolting the breaker into place.
Can the NEF213030 be used in 480V systems?
No. This specific 1-pole breaker is rated for a maximum of 277VAC. It is typically used for 277V single-phase lighting or equipment circuits and is not suitable for 480V applications.
Is the NEF213030 rated for DC applications?
Yes, in addition to its AC ratings, this 1-pole breaker is rated for up to 125VDC, making it suitable for specific direct current control or equipment circuits.
