Federal Pacific NEF214070 Molded Case Circuit Breaker
- 70A
- 1 Pole
- Bolt-On
Federal Pacific
NEF214070
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NEF214070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

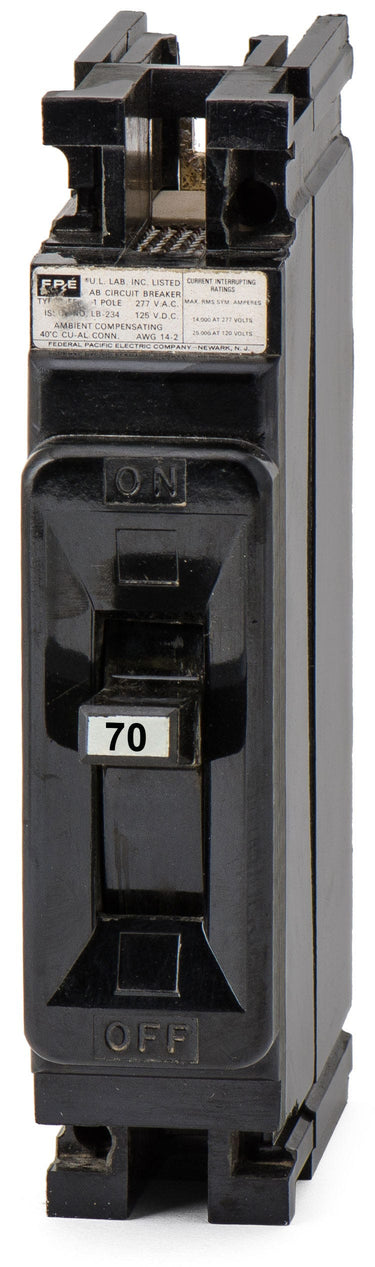

Federal Pacific NEF214070 - 70A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
90A 1 Pole Molded Case Circuit Breaker
100A 1 Pole Molded Case Circuit Breaker
30A 1 Pole Molded Case Circuit Breaker
Description
Designed for heavy-duty commercial use, the Federal Pacific NEF214070 is a 70-amp, single-pole MCCB. It utilizes thermal-magnetic technology to safeguard circuits against overloads. As a dedicated legacy replacement, this bolt-on unit restores functionality to older systems. It installs perfectly into Federal Pacific NEF and CDP panelboards, serving as a direct cross-reference for the UBIF070N. Delivering 14kAIC at 277VAC, this breaker features a non-interchangeable trip and is HACR rated.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NEF214070 |
| Series | NEF |
| Amperage | 70A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | NEF |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NEF Panelboards, CDP Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed, Vibration Tested |
Product FAQs
6 answersWhich panelboards accept the NEF214070 circuit breaker?
This N-Frame breaker is designed as a direct fit for legacy Federal Pacific NEF panelboards and CDP panelboards.
What is the direct cross-reference for the Federal Pacific NEF214070?
The UBIF070N serves as an exact cross-reference and replacement for this legacy Federal Pacific breaker, offering the same physical dimensions and electrical ratings.
Is the NEF214070 breaker HACR rated?
Yes, this breaker is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
Can the NEF214070 be used in direct current systems?
Yes, alongside its standard AC ratings, this breaker is rated for 125VDC applications with a 10kA interrupting capacity.
Does this breaker support interchangeable trip units?
No, the NEF214070 features a non-interchangeable trip design with fixed thermal and fixed magnetic elements.
Is this breaker suitable for reverse feed applications?
Yes, the construction features of this breaker allow it to be safely used in reverse feed configurations.
