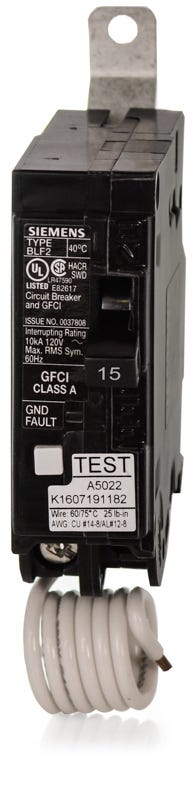

Siemens BF115A GFCI Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Siemens
BF115A
GFCI Molded Case Circuit Breaker
Brand
Siemens
SKU
BF115A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

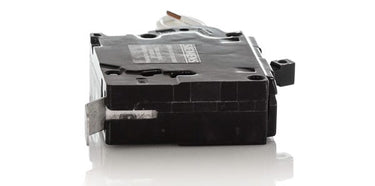

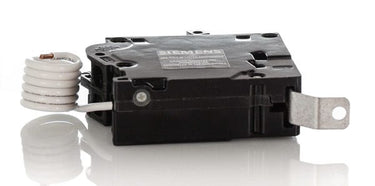

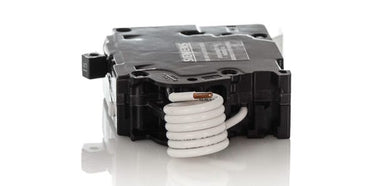

Siemens BF115A - 15A GFCI Molded Case Circuit Breaker
New
Quantity
Similar Items
20A GFCI Molded Case Circuit Breaker
20A GFCI Molded Case Circuit Breaker
20A GFCI Molded Case Circuit Breaker
Description
The Siemens BF115A is a 1-pole, 15A ground fault circuit breaker designed for commercial power distribution. It delivers 5mA Class A personnel protection to prevent electrical shocks in areas prone to moisture. Engineered with a bolt-on mounting style, it installs into Siemens P1, P2, and P3 panelboards. This model replaces the older BF115 breaker, offering an upgraded self-test feature. Featuring a 10kAIC rating, it is HACR, SWD, and HID rated to safely control HVAC and lighting circuits.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BF115A |
| Series | BF |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, HID Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the Siemens BF115A circuit breaker?
This bolt-on breaker is designed for installation in Siemens P1, P2, and P3 panelboards.
How is the neutral connection wired on this GFCI breaker?
The BF115A features a pigtail neutral connection. This pigtail wire must be connected directly to the neutral bus bar in the panelboard to ensure the ground fault detection operates correctly.
What wire gauges are accepted by the terminals on the BF115A?
The load-side lugs accept 14 to 10 AWG copper wire or 12 to 10 AWG aluminum wire.
What level of ground fault protection does this breaker provide?
The BF115A provides Class A ground fault protection, which is designed for personnel safety. It will trip when it detects a ground fault current of 5mA.

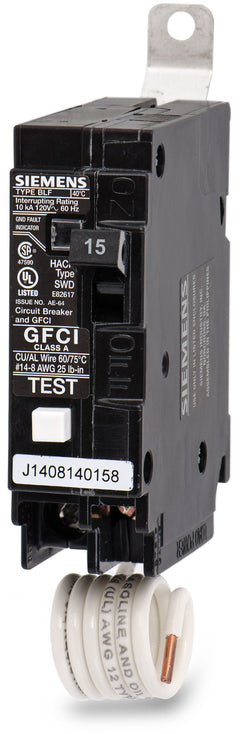

Does the BF115A replace any older Siemens breaker models?
Yes, the BF115A is the direct replacement for the older Siemens BF115 GFCI breaker, updated to include modern self-test features required by current UL standards.
What types of loads is this breaker rated to handle?
In addition to standard thermal-magnetic protection, the BF115A is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
