Square D FA14090C Molded Case Circuit Breaker
- 90A
- 1 Pole
- I-Line
Square D
FA14090C
Molded Case Circuit Breaker
Brand
Square D
SKU
FA14090C
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

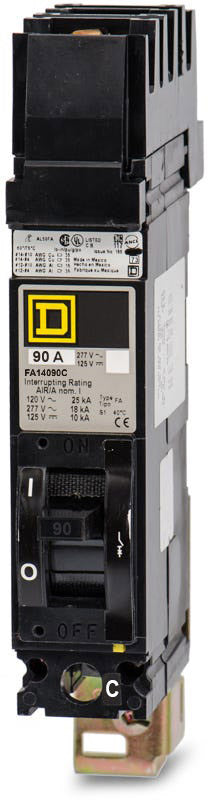

Square D FA14090C - 90A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 1 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial environments, this 90A F-Frame breaker provides essential long-time and instantaneous trip functions. The device installs into Square D I-Line panelboards utilizing a specific Phase C connection. For future upgrades, this legacy component is officially replaced by the modern PowerPacT BDA140903 model. Rated for 18kAIC at 277VAC, the unit includes HACR certification. A built-in Visi-Trip indicator allows personnel to quickly spot tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA14090C |
| Series | FA |
| Amperage | 90A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
8 answersWhat does the C suffix indicate on the FA14090C catalog number?
The C suffix specifies that this 1-pole breaker is factory-configured for a Phase C connection on the I-Line bus. It will only draw power from the C phase of the panelboard.
Will the FA14090C fit in a standard Square D NQ or NF panelboard?
No, this breaker features an I-Line style plug-in connection. It is exclusively compatible with Square D I-Line panelboards and switchboards, and cannot be installed in NQ, NF, or QO load centers.
Is this breaker suitable for direct current (DC) power systems?
Yes, in addition to its AC ratings, the FA14090C is rated for DC applications up to 125VDC, providing a 10kA interrupting capacity for DC circuits.
Is the Square D FA frame series still manufactured, or has it been replaced?
The FA series is a legacy F-Frame breaker. While exact replacements like the FA14090C remain available for existing I-Line panels, Schneider Electric has introduced the PowerPact B-Frame and H-Frame series as the modern equivalents for new installations and upgrades.
Can the thermal or magnetic trip points be adjusted in the field?
No, the FA14090C features fixed thermal and fixed magnetic trip elements. The long-time and instantaneous protection settings are factory-calibrated and cannot be modified.
Does this breaker include a Visi-Trip indicator?
Yes, Square D FA frame breakers feature a Visi-Trip indicator. When the breaker trips due to an overload or short circuit, the handle snaps to a center position and a highly visible red indicator appears, allowing personnel to quickly identify the faulted circuit.
What does the LI trip function code mean for this breaker?
The LI designation indicates that the thermal-magnetic trip unit provides Long-Time (L) protection against mild, sustained overloads and Instantaneous (I) protection against severe short circuits.
Is the FA14090C HACR rated for HVAC applications?
Yes, this breaker carries an HACR certification, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires specialized circuit protection.
