Square D FA14015A Molded Case Circuit Breaker
- 15A
- 1 Pole
- I-Line
Square D
FA14015A
Molded Case Circuit Breaker
Brand
Square D
SKU
FA14015A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA14015A - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 2 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description

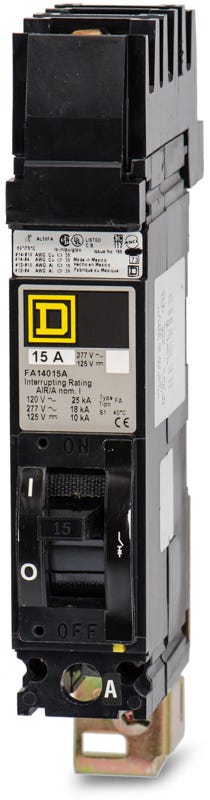

Built for commercial applications, the Square D FA14015A delivers reliable thermal-magnetic overcurrent protection as a 1-pole, 15A legacy F-Frame circuit breaker. It installs into Square D I-Line panelboards, utilizing a factory-configured Phase A jaw connection. For modern upgrades, it is replaced by the PowerPacT BDA14015Y1. Rated at 18 kAIC at 277VAC, it includes long-time and instantaneous (LI) trip functions. The breaker is HACR rated and features a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA14015A |
| Series | FA |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Phase A Jaws (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489, W-C-375B/GEN |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
5 answersWhat does the "A" suffix indicate on the FA14015A catalog number?
The "A" suffix specifies that this 1-pole breaker is factory-configured for a Phase A connection on the busbar of an I-Line panelboard. If you need to connect to a different phase, you would require the B or C suffix variant.
What is the direct replacement for the discontinued FA14015A?
The FA14015A is a legacy F-frame breaker. Its modern equivalent is the PowerPact B-frame BDA140151, which offers the same 15A rating, 18kAIC at 277V, and Phase A I-Line connection.
Will a newer PowerPact B-frame replacement fit into my existing I-Line panelboard?
Yes, Schneider Electric designed the PowerPact B-frame I-Line breakers to be fully backwards compatible with older legacy I-Line panelboards and switchboards that originally housed F-frame breakers.
Can I adjust the trip settings on this circuit breaker?
No, the FA14015A features fixed thermal and fixed magnetic trip elements. The long-time and instantaneous trip points are factory-set and cannot be adjusted in the field.
Does the FA14015A require a separate mounting bracket or hardware?
No additional mounting hardware is required. The I-Line style plug-in connection allows the breaker to snap securely and directly onto the panelboard bus assembly.
