Square D QO125GFI GFCI Miniature Circuit Breaker
- 25A
- 1 Pole
- Plug-On
Square D
QO125GFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QO125GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

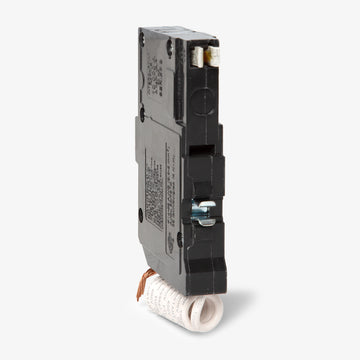

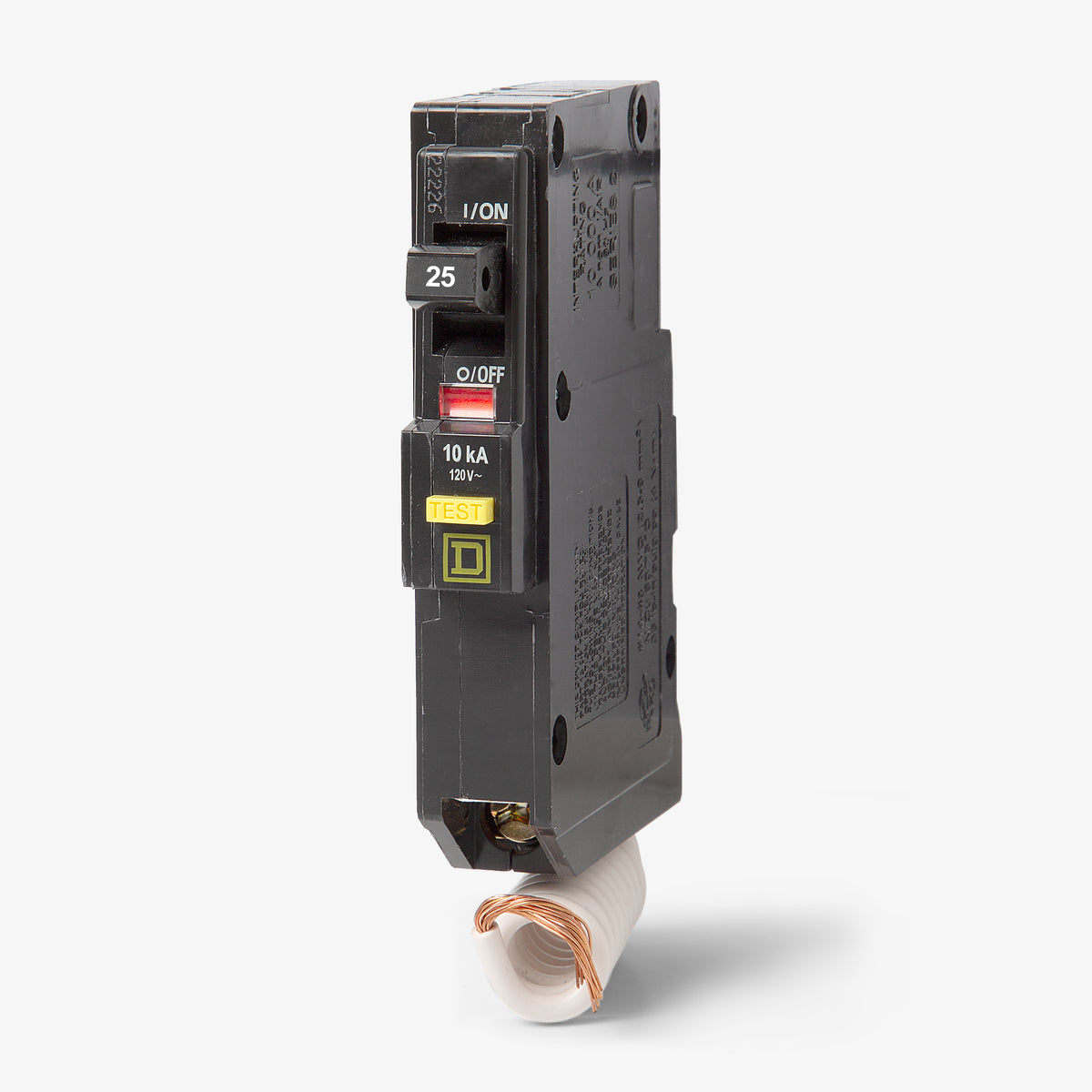

Square D QO125GFI - 25A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
20A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
Description
Accommodating unique 25A circuit requirements, this ground-fault circuit interrupter provides essential personnel protection against electrical shocks. The QO125GFI features a standard pigtail neutral and thermal-magnetic trip technology for reliable overload mitigation. It mounts seamlessly into QO load centers and NQ panelboards for residential or commercial use. The built-in Visi-Trip indicator clearly flags tripped conditions to minimize downtime.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO125GFI |
| Series | QO |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No 144, HACR, RoHS, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Mercury Free |
Product FAQs
6 answersCan I install this 25A GFCI breaker in a Square D Homeline panel?
No. Square D QO breakers are not interchangeable with Homeline breakers. This unit is designed exclusively for QO load centers and NQ panelboards.
Does this breaker require a neutral connection?
Yes. It features a pigtail neutral wire that must be connected directly to the neutral bus bar in your panel to ensure proper ground fault detection.
Can I use this 1-pole breaker for a 240V circuit?
No. This is a single-pole breaker rated for 120VAC applications only. A 2-pole breaker is required for 240V circuits.

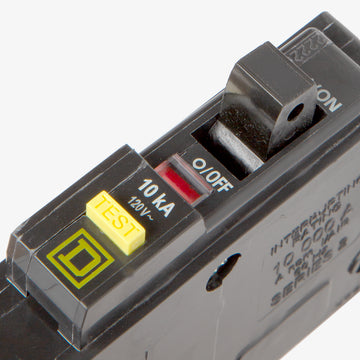

How can I tell if this breaker has tripped?
This unit features the Square D Visi-Trip indicator. When the breaker trips, the handle moves to a center position and a highly visible red indicator appears, making it easy to identify the tripped circuit in your panel.
What level of ground fault protection does the QO125GFI provide?
This breaker provides Class A ground fault protection. It is designed to trip when a ground fault of 5mA is detected, offering personnel protection against electrical shock.
What are the alternate catalog numbers for the QO125GFI?
This breaker is also commonly referenced under alternate part numbers QO125GF, QO125GFIC, and QO125GFCI.
