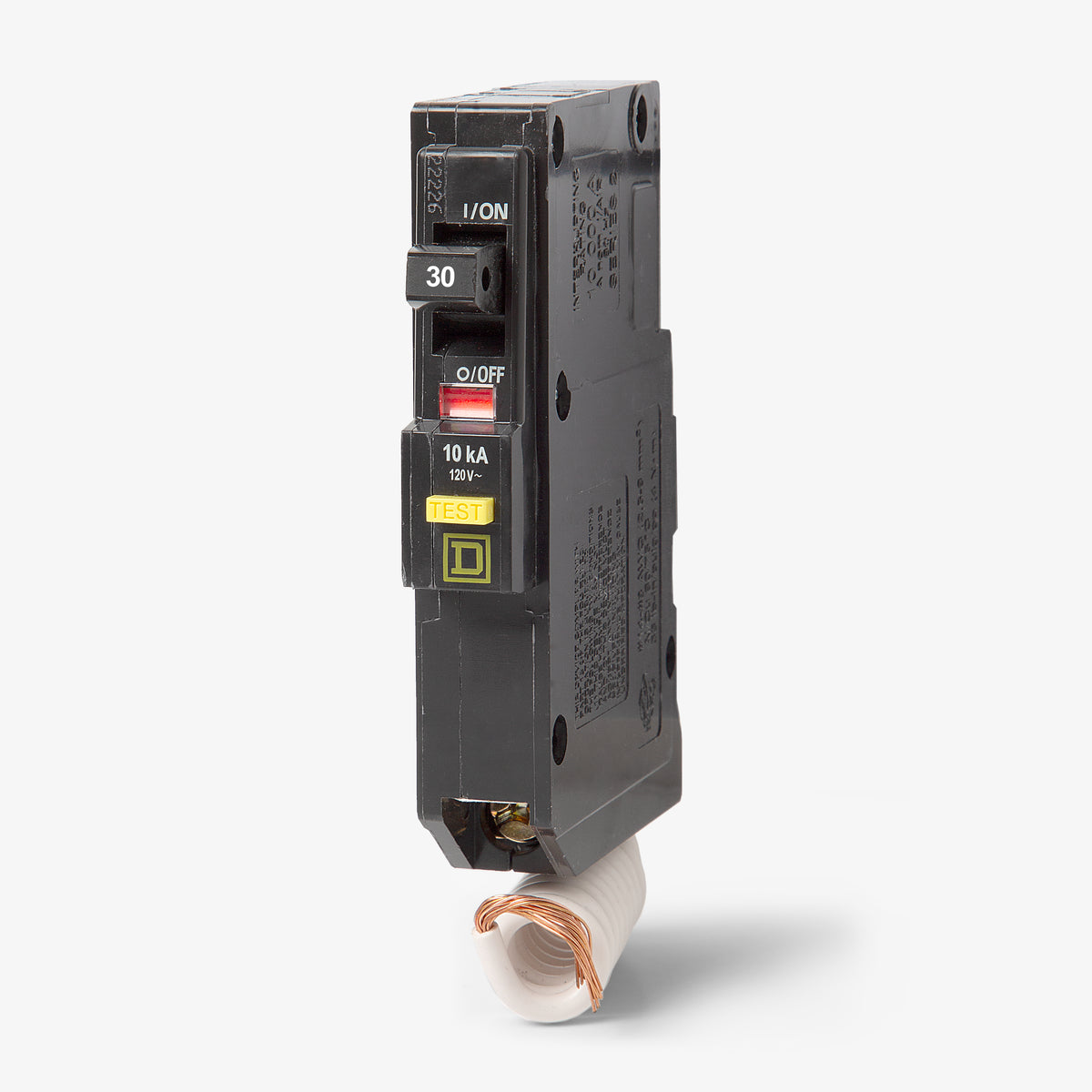

Square D QO130GFI GFCI Miniature Circuit Breaker
- 30A
- 1 Pole
- Plug-On
Square D
QO130GFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QO130GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO130GFI - 30A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Square D QO130GFI - 30A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO130GFI |
| Series | QO |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Mercury Free |
Sold out
Quantity
Square D QO130GFI - 30A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO130GFI-R |
| Series | QO |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Mercury Free |
Similar Items
20A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
Description
Providing advanced Class A 6mA ground fault protection, this 30-amp breaker ensures maximum safety for personnel. It is an essential component for bathrooms, kitchens, and outdoor circuits requiring strict NEC compliance. The unit mounts into Square D QO load centers and NQ panelboards via a standard plug-on connection. It features a factory-installed pigtail neutral wire to complete the circuit installation. This mercury-free model includes the highly visible Visi-Trip red indicator flag.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO130GFI |
| Series | QO |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Mercury Free |
Product FAQs
7 answersAt what fault current level does the GFCI trip on this breaker?
This unit provides Class A ground fault protection. It is designed to trip when a fault current to ground is 6 mA or greater, which provides personnel protection against electrical shock.
How do I wire the pigtail neutral during installation?
The white pigtail wire must be connected directly to the neutral bus bar in your QO or NQ panelboard. The load neutral wire then connects to the neutral lug on the circuit breaker itself.
Will this breaker install in a Square D Homeline load center?
No. QO series breakers have a 3/4 inch width format and are not compatible with Homeline panels, which require 1 inch format circuit breakers.
Does this model require a Plug-On Neutral (PON) panelboard?
No. Because this breaker includes a factory installed pigtail neutral, it can be installed in legacy QO and NQ panels that do not feature plug-on neutral bus bars. It can also be used in modern PON panels by securely landing the pigtail on the neutral bar.
Can I use this 1-pole GFCI breaker for a multi-wire branch circuit (MWBC)?
No. A single pole GFCI breaker cannot be used on a shared neutral multi-wire branch circuit. A 2-pole GFCI circuit breaker is required for those specific applications.

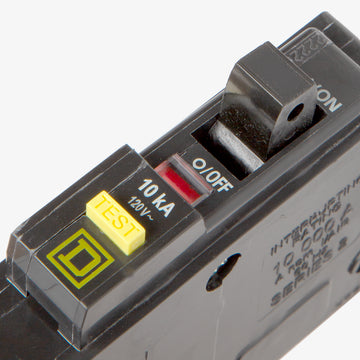

How can I visually identify if this breaker has tripped in the panel?
This model features a Visi-Trip indicator. When the breaker trips due to an overload, short circuit, or ground fault, a highly visible red flag appears in the indicator window.
Does the GFCI circuit require regular testing?
Yes. The manufacturer recommends testing the ground fault function monthly by pressing the test button on the face of the breaker to verify the internal electronics are operating correctly.
