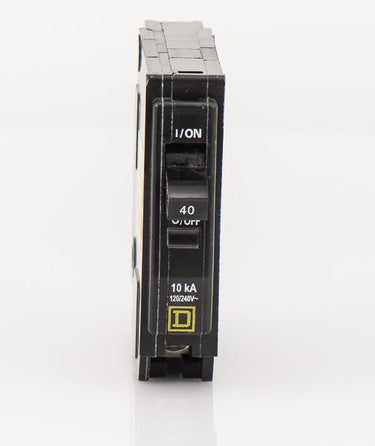

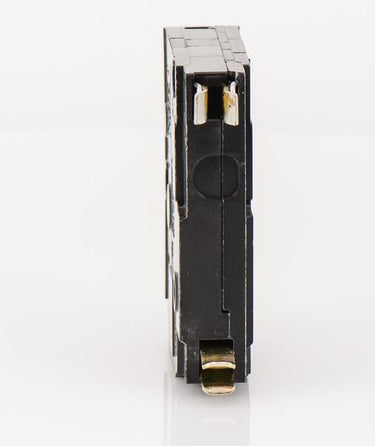

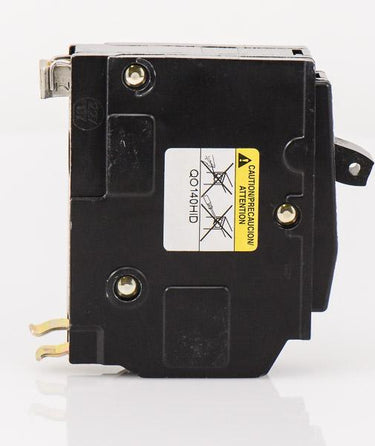

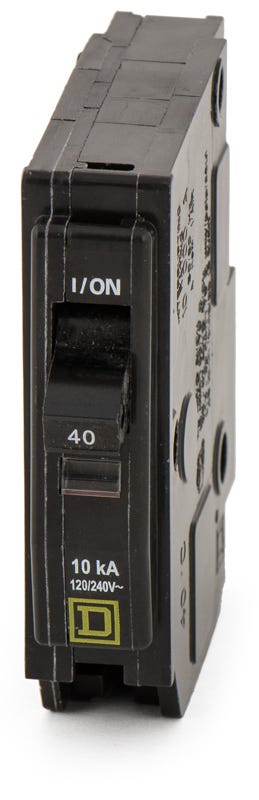

Square D QO140HID Miniature Circuit Breaker
- 40A
- 1 Pole
- Plug-On
Square D
QO140HID
Miniature Circuit Breaker
Brand
Square D
SKU
QO140HID
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO140HID - 40A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
35A 1 Pole Miniature Circuit Breaker
50A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial applications, this 40A miniature circuit breaker handles high-intensity discharge (HID) lighting circuits with ease. The unit incorporates Square D's signature Visi-Trip indicator, allowing facility managers to quickly spot tripped circuits in busy electrical rooms. It installs into standard QO load centers, as well as NQ and NQOD panelboards. The plug-on mounting style ensures a secure connection for reliable power distribution. It is also HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO140HID |
| Series | QO |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, HID Rated |
Product FAQs
5 answersWhat does the HID suffix indicate on this circuit breaker?
The HID designation means this breaker is specifically rated for high-intensity discharge lighting loads, such as metal halide, mercury vapor, and high-pressure sodium lighting systems. It is designed to safely handle the high inrush currents associated with these fixtures.
Can the QO140HID be used in place of a standard QO140 breaker?
Yes, QO-HID circuit breakers are fully interchangeable with standard QO circuit breakers of the same amperage and pole configuration. They fit into the same panel spaces while providing the added rating for high-intensity discharge lighting.
Is the QO140HID suitable for heating, air conditioning, and refrigeration equipment?
Yes, this breaker is HACR rated, making it suitable for use with compatible heating, air conditioning, and refrigeration equipment that requires a 40A overcurrent protection device.
Does this breaker include a Visi-Trip indicator?
Yes, like standard QO breakers, the QO140HID features the Square D Visi-Trip indicator. This provides a clear visual cue when the breaker has tripped, allowing for rapid identification of faulted circuits in busy electrical panels.
What is the bolt-on equivalent of the QO140HID?
If your panelboard requires a bolt-on connection, the equivalent breaker is the QOB140HID.
