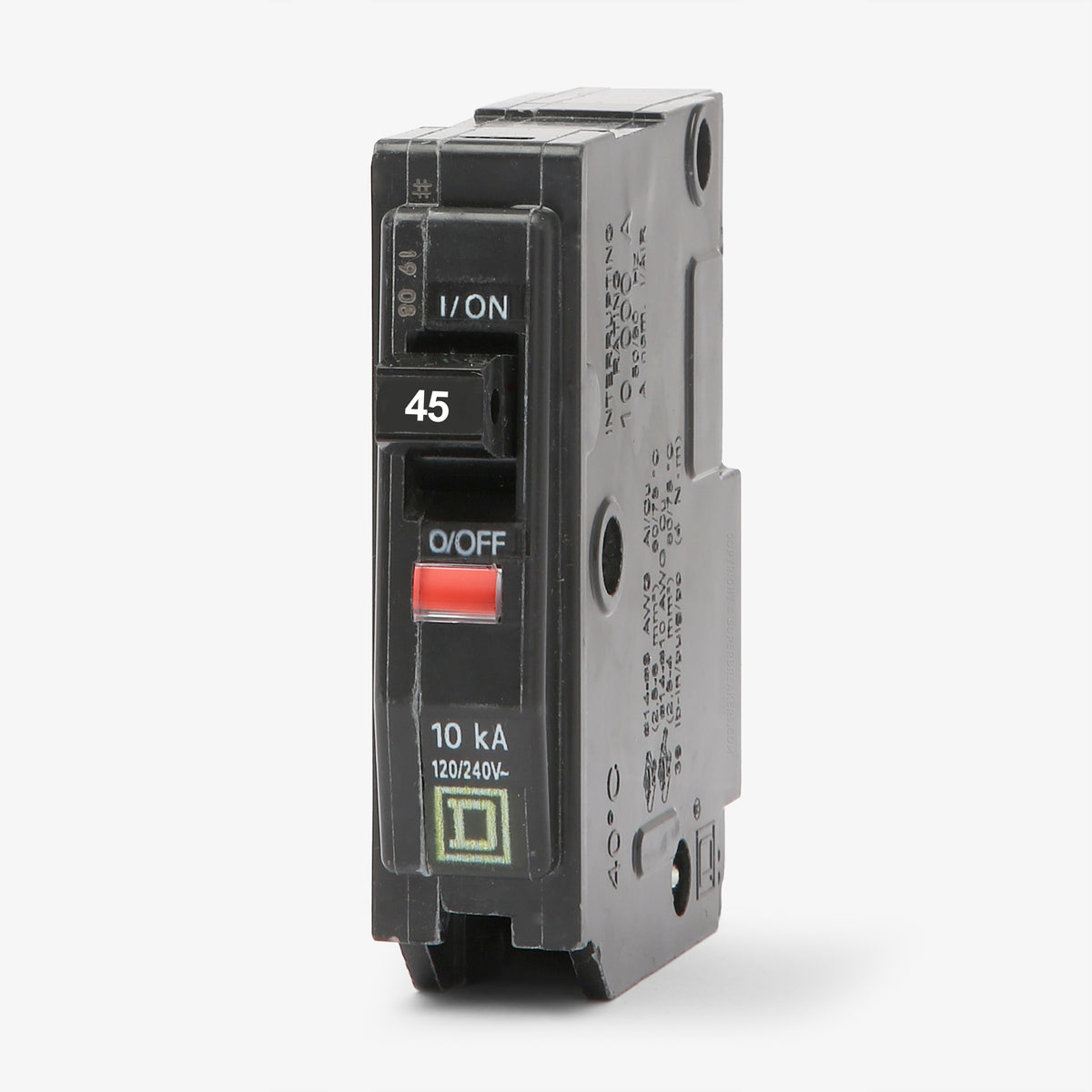

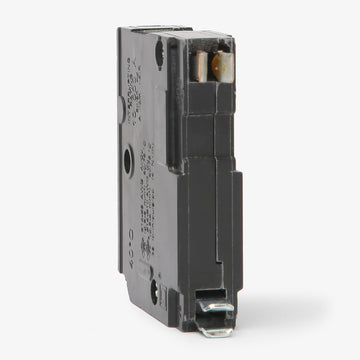

Square D QO145 Miniature Circuit Breaker
- 45A
- 1 Pole

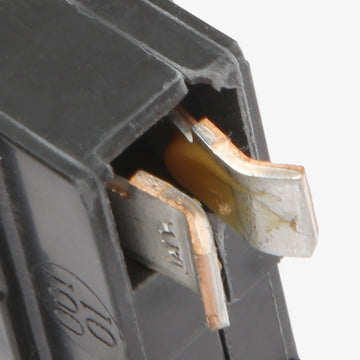

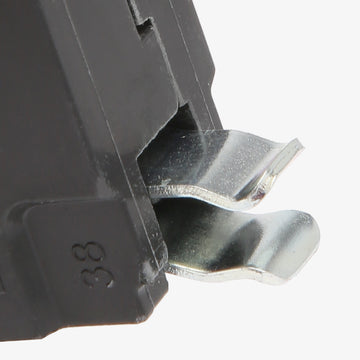

- Plug-On
Square D
QO145
Miniature Circuit Breaker
Brand
Square D
SKU
QO145
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO145 - 45A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Similar Items
40A 1 Pole Miniature Circuit Breaker
35A 1 Pole Miniature Circuit Breaker
60A 1 Pole Miniature Circuit Breaker
Description
Manufactured for dependable power distribution, this 45A miniature breaker utilizes a proven thermal-magnetic trip unit to prevent overloads and short circuits. The highly visible red Visi-Trip flag alerts users instantly when the circuit trips, reducing troubleshooting time. It easily installs into any standard QO load center, as well as commercial NQ and NQOD panelboards. The plug-on connection ensures a tight, secure fit. It is HACR rated for use with heating and cooling equipment.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO145-R |
| Series | QO |
| Amperage | 45A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhich panelboards and load centers are compatible with the QO145?
This breaker installs in Square D QO load centers, as well as NQ and NQOD panelboards. It is not compatible with Homeline (HOM) load centers.
Can the QO145 be installed in a bolt-on panelboard?
No, this is a plug-on breaker. For bolt-on applications in NQ or NQOD panelboards, you must use the QOB equivalent, catalog number QOB145.
Does the QO145 include a tripped breaker indicator?
Yes, standard QO breakers feature the Visi-Trip indicator. A highly visible red flag appears in the window when the breaker has tripped, allowing for quick fault identification.
Is the QO145 HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific rating.
Does this breaker require a plug-on neutral panel?
No, the QO145 is a standard thermal magnetic breaker, not a GFCI or AFCI breaker. It does not require a neutral connection to the breaker itself and can be installed in both standard and plug-on neutral panels.
Will this breaker fit in a tandem or space-saver slot?
No, the QO145 is a standard full-size, single-pole breaker that requires one full 0.75-inch space in the panel. Square D does not manufacture 45A tandem breakers.
