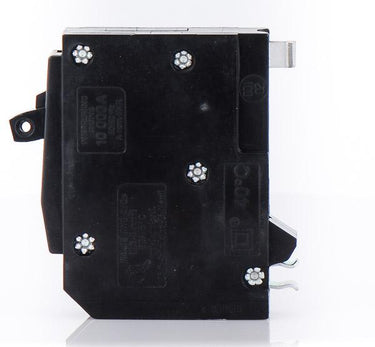

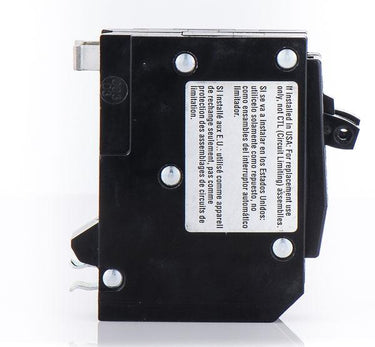

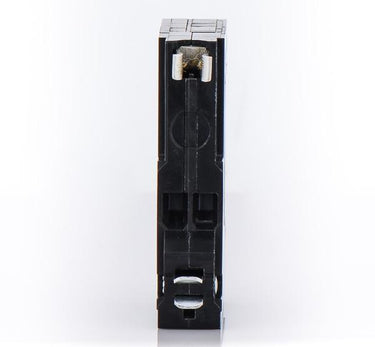

Square D QO2020CP 20/20A Tandem Miniature Circuit Breaker
- 20/20A
- 1 Pole
- Plug-On
Square D
QO2020CP
20/20A Tandem Miniature Circuit Breaker
Brand
Square D
SKU
QO2020CP
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO2020CP - 20/20A Tandem Miniature Circuit Breaker
New
Quantity
Similar Items
15/20A Tandem Miniature Circuit Breaker
15/15A Tandem Miniature Circuit Breaker
15/15A Tandem Miniature Circuit Breaker
Description
Engineered as a direct replacement for legacy systems, the Square D QO2020CP is a non-CTL tandem breaker delivering two 20A circuits from one space. It provides essential protection for older electrical setups. Lacking a rejection clip, this unit mounts into pre-1968 Square D QO load centers without pan rail slots. It is the correct choice for expanding capacity in older, non-notched panels. The breaker features the exclusive Visi-Trip visual indicator for rapid fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO2020 |
| Series | QO |
| Amperage | 20/20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | Old Non-Class CTL QO Load Centers |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Tandem, HACR Rated, Mercury Free |
Product FAQs
8 answersWhat is the difference between the QO2020 and QO2020CP?
The QO2020 and QO2020CP are the exact same circuit breaker. The CP suffix indicates commercial packaging, typically a blister pack, rather than standard bulk packaging.
What is the difference between the QO2020CP and QOT2020?
The QO2020CP is a non-CTL tandem breaker without a mounting hook, designed for older legacy panels. The QOT2020 is a Class CTL tandem breaker that includes a rejection clip to prevent installation in panel spaces not rated for tandem breakers.
Which load centers are compatible with the QO2020CP tandem breaker?
This non-CTL breaker is designed exclusively for older Square D QO load centers built before 1968 that do not feature notched pan rails. It will not fit in modern Class CTL panels that require a rejection clip.
Can I install the QO2020CP in a Square D Homeline panel?
No. QO and Homeline breakers are not interchangeable. The QO2020CP is designed only for QO load centers. For a Homeline panel, you would need a Homeline tandem breaker such as the HOMT2020CP.
How many panel spaces does the QO2020CP require?
This tandem breaker provides two independent 20-amp circuits while occupying only one standard 3/4-inch space in a QO load center.
Can I use the QO2020CP to supply a 240V circuit?
No. The QO2020CP is a tandem breaker that provides two independent 120V circuits on the same phase. It cannot be used for 240V applications that require a two-pole breaker across two phases.
Does the QO2020CP feature a visual trip indicator?
Yes, it includes the Square D Visi-Trip indicator. When the breaker trips, a highly visible red flag appears in the indicator window, allowing for rapid fault identification in the panel.
Is the QO2020CP HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific overcurrent protection rating.
