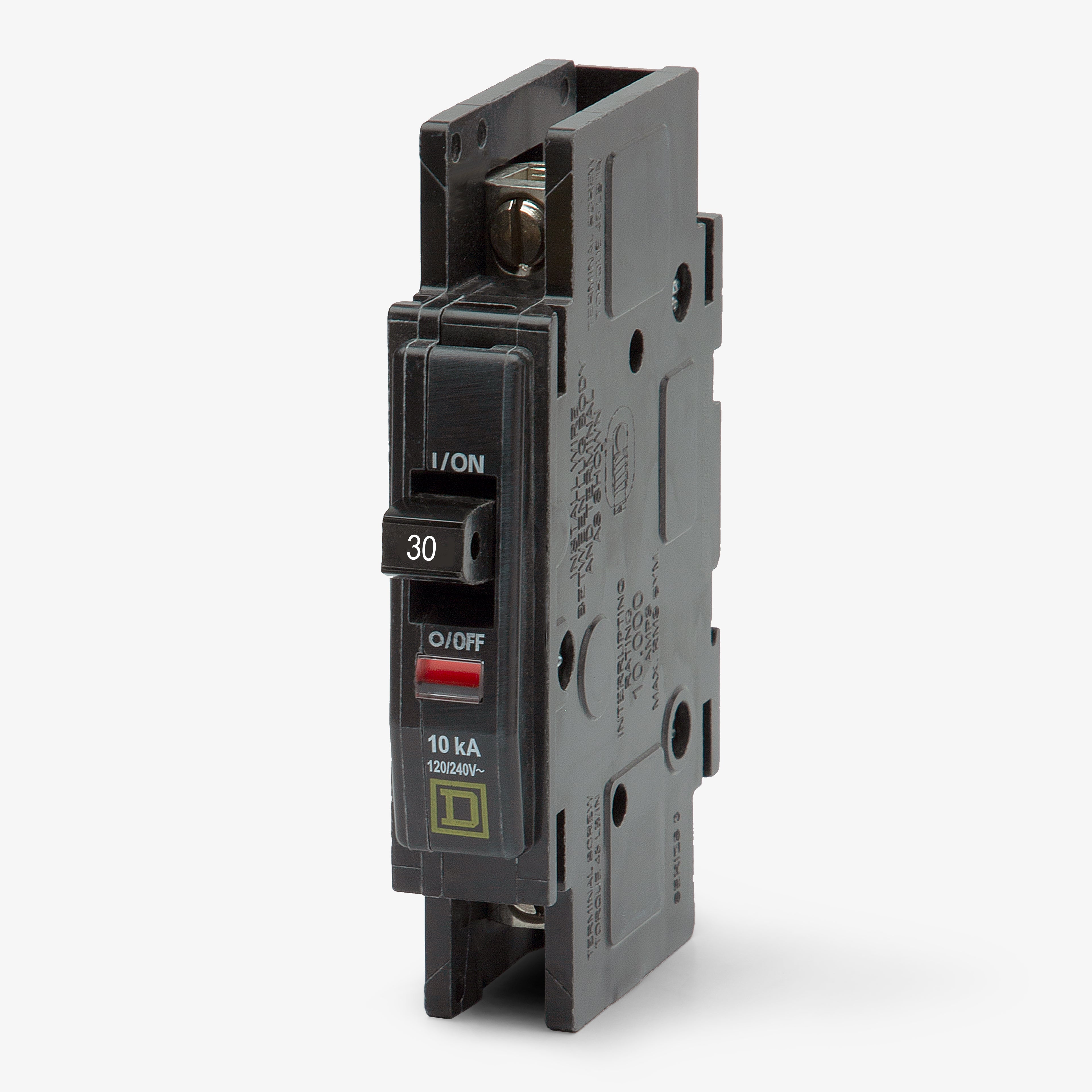

Square D QOU130 - 30A 1 Pole Miniature Circuit Breaker

Brand Square D
SKU QOU130
5.0
Rated 5.0 out of 5 stars
94 Reviews
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Square D QOU130 - 30A 1 Pole Miniature Circuit Breaker

Brand Square D
SKU QOU130
5.0
Rated 5.0 out of 5 stars
94 Reviews
Select Item Condition
Earn 18 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Square D QOU130 - 30A 1 Pole Miniature Circuit Breaker

New

$18.61 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
The Square D QOU130 is a 1-pole, 30A miniature circuit breaker designed for versatile application in commercial and industrial settings. Operating at 120/240VAC or 48VDC, it provides reliable thermal-magnetic protection. Built for unit-mount configurations, it installs easily into OEM panels and custom enclosures via flush, surface, or DIN rail mounting. Featuring a 10 kAIC rating, it includes a Visi-Trip indicator and reversible lugs for flexible wiring without restrictive line/load markings.

Specifications

Brand Square D
Series QOU
Part Number QOU130
Amperage 30A
Voltage 120/240VAC, 48VDC
Poles 1
Phase 1
AIC Rating 10kA @ 120/240VAC, 5kA @ 48VDC
Mounting Style Unit Mount
Terminal Type Box Lugs
For Use With DIN Rail Systems, OEM Panels, Control Panels, Enclosures
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14-2 AWG (Al/Cu)
Max Wire 2 AWG
Min Wire 14 AWG
Available Options Padlock Attachment, Mounting Feet, Shunt Trip, Auxiliary Switch, Alarm Switch
Accessories Line and Load Lugs Included, Mounting Hardware
Standards CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489
Approval CSA, HACR, IEC, UL
Temp Rating 40C
Construction Features HACR Rated, Visual Trip Indicator
