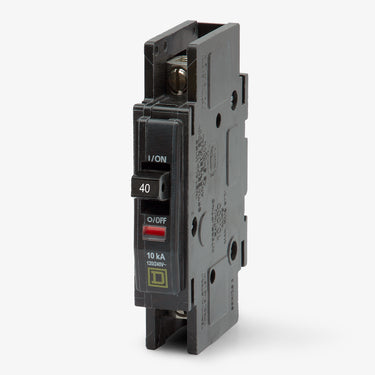

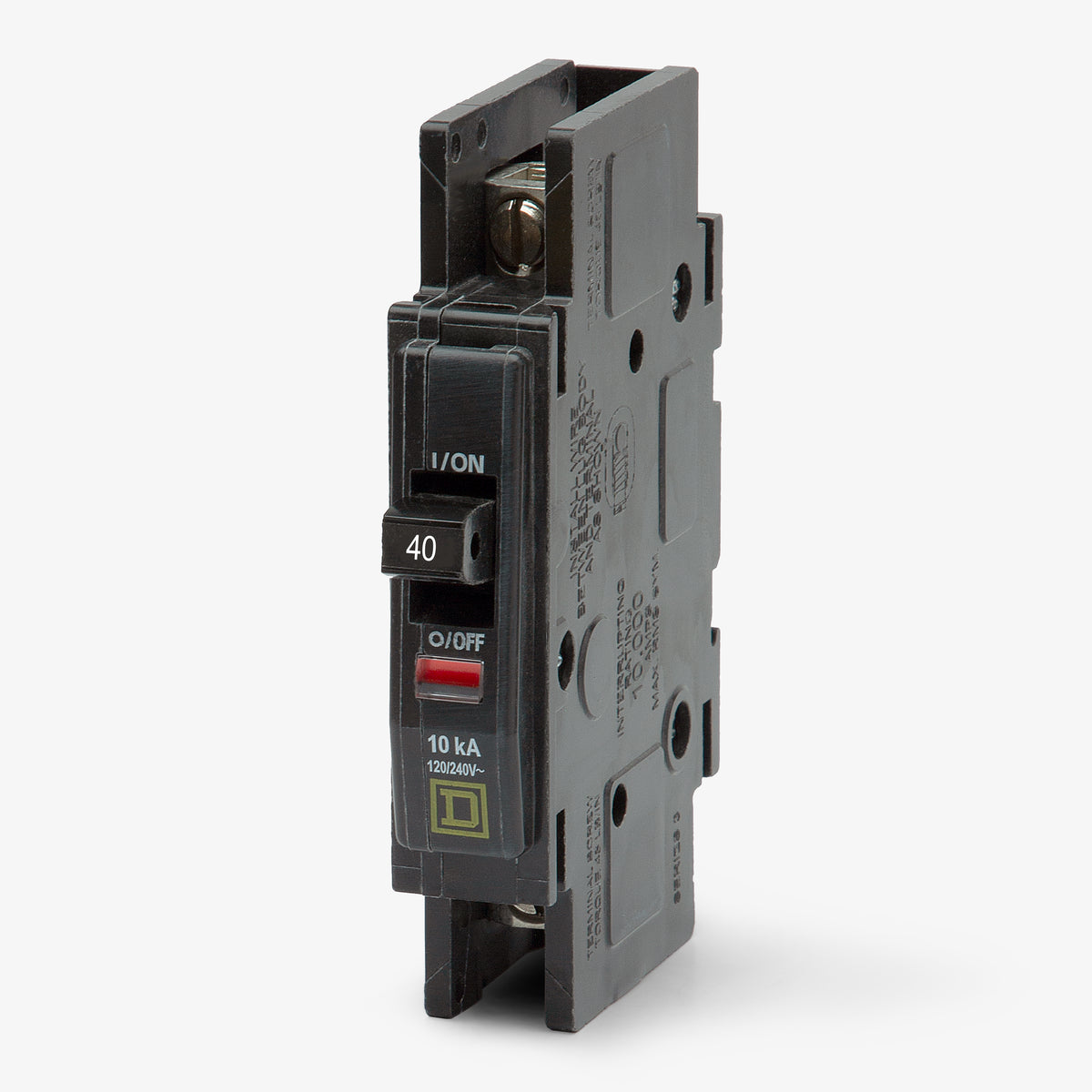

Square D QOU140 Miniature Circuit Breaker
- 40A
- 1 Pole
- Unit Mount
Square D
QOU140
Miniature Circuit Breaker
Brand
Square D
SKU
QOU140
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOU140 - 40A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
50A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
25A 1 Pole Miniature Circuit Breaker
Description
Built for residential, commercial, and industrial applications, the QOU140 delivers reliable overcurrent protection. This 1-pole, 40A miniature circuit breaker is rated for 120/240VAC and 48VDC systems. It installs into DIN rail systems, OEM panels, and control enclosures using a versatile unit mount design. The breaker accepts 14-2 AWG aluminum or copper wire via slotted box lugs. Featuring a 10kAIC rating, this HACR-rated breaker includes reversible lugs and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOU140 |
| Series | QOU |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures, Control Panels |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Mounting Feet, Padlock Attachment, Terminal Shields |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed |
Product FAQs
5 answersHow is the Square D QOU140 circuit breaker mounted?
The QOU140 is a unit-mount breaker that can be surface-mounted, flush-mounted, or installed on a standard 35mm DIN rail using a compatible mounting bracket.
Is the QOU140 circuit breaker HACR rated?
Yes, this breaker is HACR (Heating, Air Conditioning, and Refrigeration) and Switching Duty rated, making it suitable for HVAC equipment and control panels.
Can the QOU140 breaker be reverse-fed?

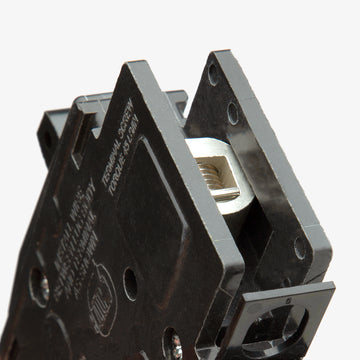

Yes, because it does not have specific Line and Load markings, the QOU140 can be reverse-fed (back-fed). It features reversible slotted box lugs for flexible wiring.
How can I tell if the QOU140 has tripped?

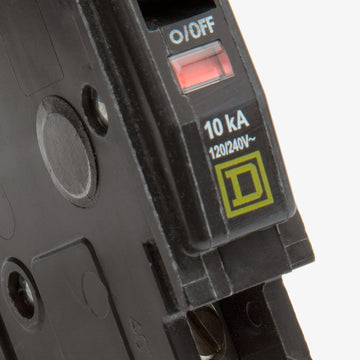

The breaker features Square D's Visi-Trip indicator, which provides a highly visible red signal when the breaker has tripped due to an overcurrent or short circuit.
What accessories are compatible with the QOU140?
Compatible accessories include padlock attachments for lockout/tagout procedures, as well as DIN rail mounting brackets and jumper bars for multi-breaker configurations.
