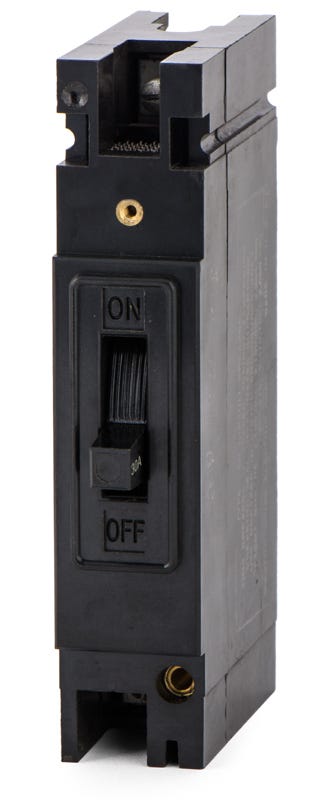

Eaton / Westinghouse E1030 Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Eaton / Westinghouse
E1030
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
E1030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse E1030 - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Eaton E1030 provides reliable thermal-magnetic protection for 120VAC and 125VDC systems. This 30-amp, single-pole molded case circuit breaker serves as an exact drop-in replacement for aging infrastructure. It installs into legacy Westinghouse, AB De-Ion, and Eaton Pow-R-Line panelboards without requiring modifications.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | E1030-R |
| Series | E |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 7kA @ 120VAC, 5kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards, Eaton Pow-R-Line Panelboards, AB De-Ion Panels |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Standard Interrupting Capacity |
Product FAQs
5 answersWhich panelboards accept the E1030 circuit breaker?
This bolt-on breaker is compatible with legacy Westinghouse panelboards, AB De-Ion panels, and modern Eaton Pow-R-Line panelboards that accept E-frame breakers.
Are Eaton, Cutler-Hammer, and Westinghouse E1030 breakers interchangeable?
Yes. Eaton acquired the Westinghouse electrical distribution division. An E1030 breaker labeled under the Eaton, Cutler-Hammer, or Westinghouse brand shares the exact same physical dimensions, bolt-on mounting, and electrical characteristics.
Is the E1030 rated for direct current (DC) systems?
Yes, in addition to its standard AC rating, this breaker is rated for DC applications. It provides a 5kA interrupting capacity at 125VDC.
What are the lug wire size limits for the E1030?
The standard lugs accept wire gauges from 14 AWG up to 1/0 AWG. The terminals are dual-rated for terminating either copper or aluminum conductors.
Does the E1030 offer adjustable trip settings?
No. This breaker features a fixed thermal-magnetic trip unit. Both the long-time overload protection and the instantaneous short-circuit protection are factory set and cannot be adjusted in the field.
