Eaton / Westinghouse EB1015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Eaton / Westinghouse
EB1015
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
EB1015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

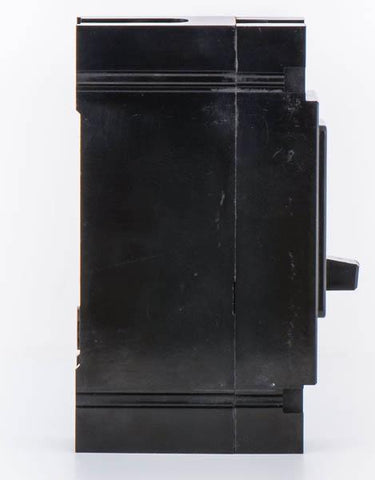

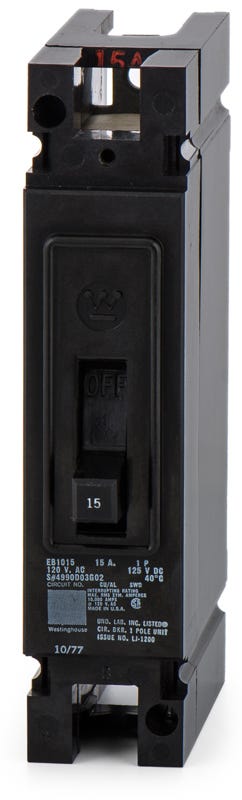

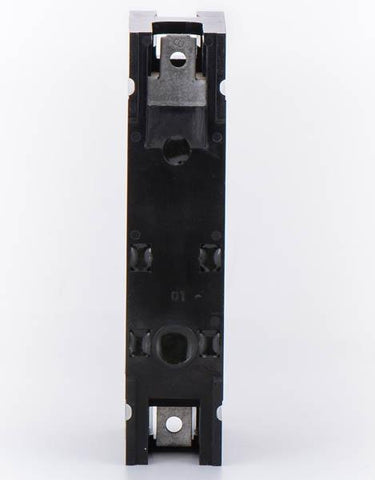

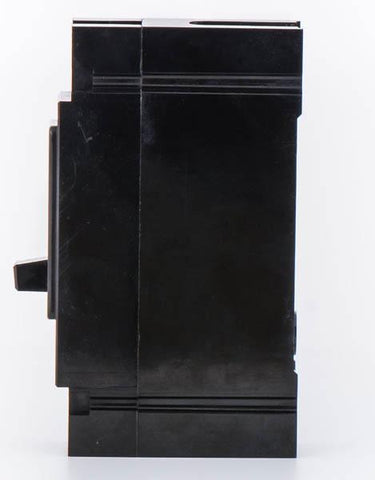

Eaton / Westinghouse EB1015 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
15A 3 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
Serving as an exact fit for commercial and industrial electrical systems, this 15-amp single-pole unit delivers standard interrupting capacity. It features a non-interchangeable thermal-magnetic trip mechanism for consistent performance. Designed to mount into Eaton Pow-R-Line C and classic Westinghouse F-Frame panelboards without modifications. This component serves as a reliable substitute for the EHD1015 series. Switching duty rated for fluorescent lighting, it handles 10kA fault currents.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EB1015-R |
| Series | EB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | EB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Westinghouse F-Frame Panelboards |
| Wire Gauge | 14-10 AWG (Al/Cu) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the EB1015 circuit breaker?
The EB1015 is designed for installation in Eaton Pow-R-Line C panelboards and legacy Westinghouse F-Frame panelboards. Verify your panelboard interior labeling to confirm EB frame breakers are permitted.
Can the EB1015 be used in DC electrical applications?
Yes, this 1-pole breaker is rated for DC systems up to 125VDC, where it provides an interrupting capacity of 5kAIC. For standard AC applications, it is rated 10kAIC at 120VAC.
What wire sizes are accepted by the EB1015 terminals?
The factory-installed lugs accept 14 AWG to 10 AWG conductors. The terminals are dual-rated for both aluminum and copper wiring.
What trip functions are included in the EB1015?
This breaker utilizes a fixed thermal-magnetic trip unit. It provides standard Long-Time (thermal) and Instantaneous (magnetic) protection, commonly referred to as an LI trip profile.
Are Eaton, Cutler-Hammer, and Westinghouse EB1015 breakers interchangeable?
Yes. Following Eaton's acquisition of the Westinghouse electrical distribution line, the EB1015 catalog number was retained. Breakers branded as Eaton, Cutler-Hammer, or Westinghouse with this part number share the same E-Frame dimensions and specifications.
How does the EB1015 connect to the panelboard bus?
The EB1015 is a bolt-on molded case circuit breaker. It requires a bolted connection to the panelboard buswork, ensuring a secure and high-conductivity joint compared to plug-on alternatives.
