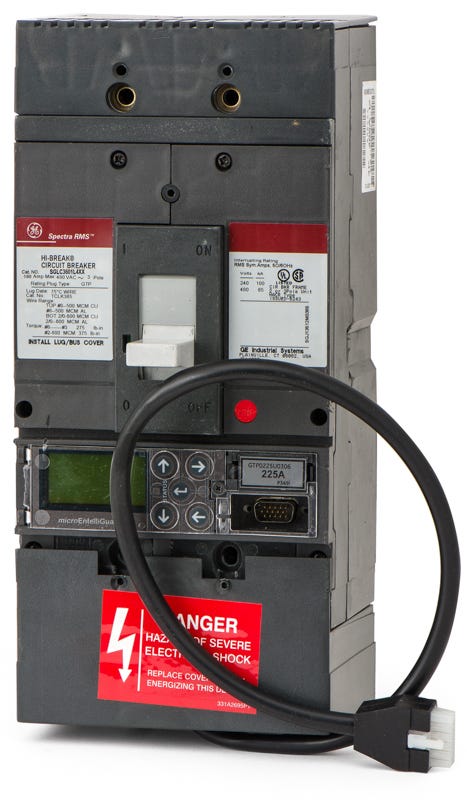

ABB / General Electric SGLC3601L4XX Molded Case Circuit Breaker
- 150A
- 3 Pole
- Unit Mount
ABB / General Electric
SGLC3601L4XX
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
SGLC3601L4XX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric SGLC3601L4XX - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricSGLC3604L5XX
400A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSGLC3604L7XX
400A 3 Pole Molded Case Circuit Breaker
Description
Engineered for advanced system coordination, this 150A molded case circuit breaker features integrated ground fault protection for industrial facilities. The unit mount breaker integrates seamlessly into GE Spectra Series panelboards, switchboards, and motor control centers. It comes with an interchangeable rating plug and offers fully adjustable long-time, short-time, instantaneous, and ground fault (LSIG) settings, backed by a robust 65kAIC interrupt rating at 480VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SGLC3601L4XX |
| Series | SGLC |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 277VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480VAC, 65kA @ 600VAC |
| Frame Type | SGLC |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (2) 2/0 AWG-500 kcmil or (1) 8 AWG-600 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 8 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Trip Unit Model | microEntelliGuard |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kit |
|---|---|
| Accessories | Rating Plug Included, Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, True RMS Sensing, Interchangeable Rating Plug |
Product FAQs
6 answersWhich panelboards and switchboards are compatible with the SGLC3601L4XX?
This SG-frame circuit breaker is designed for use in GE Spectra Series panelboards, switchboards, and motor control centers.
What wire sizes are accepted by the lugs on this 150A breaker?
The included lugs accept either one 8 AWG to 600 kcmil conductor or two 2/0 AWG to 500 kcmil conductors. Both copper and aluminum wires are supported.
What does the LSIG trip function provide on this Spectra RMS breaker?
The electronic trip unit features adjustable Long-Time, Short-Time, Instantaneous, and Ground-Fault protection. This allows for precise coordination in commercial and industrial power systems.
Can the SGLC3601L4XX be reverse fed?
Yes. Spectra RMS circuit breakers are suitable for reverse feed applications and do not have specific line or load markings. Incoming power cables or busbars can be connected to either the upper or lower terminals.
Does this SG-frame breaker require a rating plug?
Yes, Spectra RMS SG-frame circuit breakers require an interchangeable rating plug to establish the continuous current rating for the specific application.
Why might this breaker arrive with ABB branding instead of General Electric?
ABB acquired GE Industrial Solutions. As a result, Spectra RMS breakers like the SGLC3601L4XX may carry either GE or ABB branding, but they remain physically and electrically identical.
