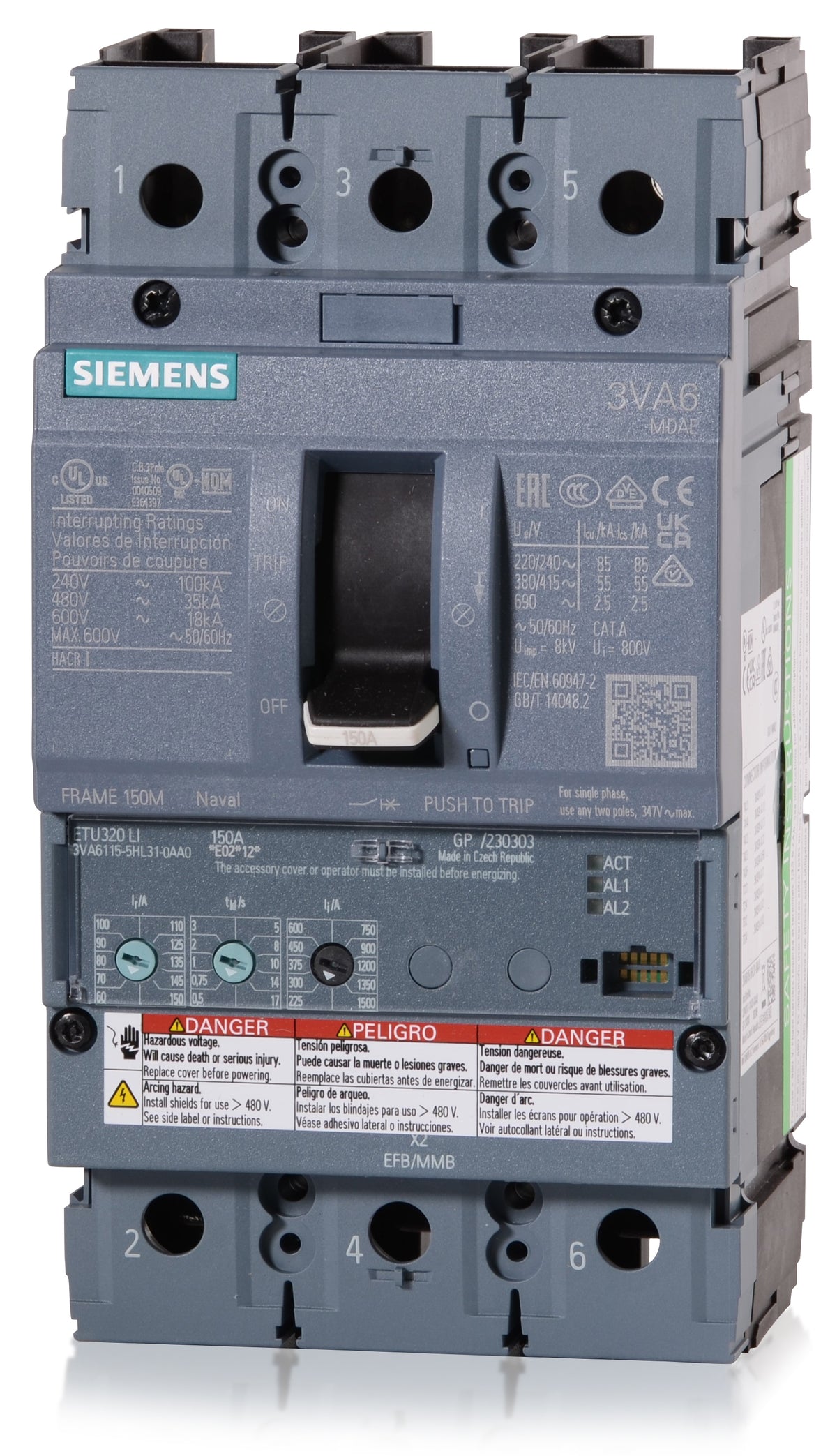

Siemens 3VA6115-5HL31-0AA0 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Panel Mount
Siemens
3VA6115-5HL31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA6115-5HL31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA6115-5HL31-0AA0 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
150A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the Siemens 3VA6115-5HL31-0AA0 is a 150A, 3-pole electronic trip circuit breaker from the Sentron 3VA6 family. This panel-mount MCCB is engineered for use with Siemens P2, P3, P4, and P5 panelboards and switchboards. Rated for 35 kAIC at 480V, it features an ETU320 LI solid-state trip unit that provides configurable long-time and instantaneous protection, offering superior coordination advantages over traditional thermal-magnetic alternatives.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA6115-5HL31-0AA0 |
| Series | 3VA6 |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 60-150A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P2, P3, P4, P5 Panelboards, Switchboards |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Nut Keeper Kit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, EAC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Product FAQs
6 answersWhat does the LI designation mean on the ETU320 trip unit?
The LI designation indicates that the solid-state electronic trip unit provides adjustable Long-Time (L) overload protection and adjustable Instantaneous (I) short-circuit protection.
Is the 3VA6115-5HL31-0AA0 rated for reverse feed applications?
Yes, Siemens 3VA6 electronic trip circuit breakers are UL listed for reverse feed applications.
What frame size does this circuit breaker use?
The 3VA6115-5HL31-0AA0 is built on the specific Siemens 3VA61 150A frame, which falls under the broader SENTRON 3VA frame group.
What interrupting class does the 3VA6115-5HL31-0AA0 fall under?
This breaker belongs to the Siemens M-Interrupting Class, which designates its 35kA short-circuit current rating at 480VAC.
How are the protection settings configured on this breaker?
The ETU320 LI electronic trip unit features rotary dials on the front faceplate, allowing you to manually adjust the continuous current and instantaneous pickup settings.
What UL standard does the 3VA6115-5HL31-0AA0 meet?
This molded case circuit breaker is certified to the UL 489 standard for use in commercial and industrial power distribution systems.
