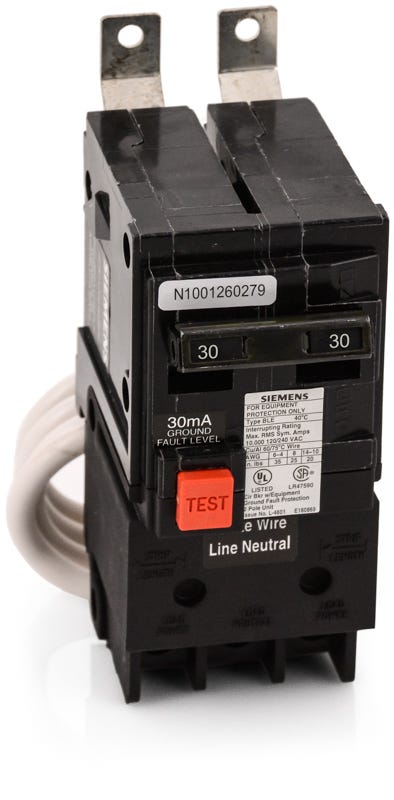

Siemens BE230 - 30A GFEP Molded Case Circuit Breaker

Brand Siemens
SKU BE230
Siemens BE230 2 Pole Circuit Breaker
Free Shipping Over $99
Siemens BE230 2 Pole Circuit Breaker

Siemens BE230 - 30A GFEP Molded Case Circuit Breaker

Brand Siemens
SKU BE230
Select Item Condition
Earn 246 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more
Siemens BE230 2 Pole Circuit Breaker

Siemens BE230 - 30A GFEP Molded Case Circuit Breaker

New

$246.05 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Engineered for commercial applications, the Siemens BE230 provides reliable ground-fault equipment protection (GFEP). This 2-pole, 30A molded case circuit breaker protects machinery from damaging line-to-ground faults. Featuring a secure bolt-on mounting style, this breaker installs into Siemens P1, P2, and P3 panelboards. It serves as a predecessor to the newer B230EG model. Rated for 120/240VAC with a 10kAIC capacity, the unit features a 30mA trip sensitivity and is HACR rated.

Specifications

Brand Siemens
Series BE
Part Number BE230
Amperage 30A
Voltage 120/240VAC
Poles 2
Phase 1
AIC Rating 10kA @ 120/240VAC
Special Classification GFEP
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Siemens P1, P2, P3 Panelboards
Trip Technology Thermal Magnetic
Trip Function Code LIG
Trip Function Long-Time, Instantaneous, Ground Fault
Trip Adjustability Fixed
Wire Gauge 10-8 AWG (Cu), 10-6 AWG (Al)
Max Wire 6 AWG
Min Wire 10 AWG
Available Options Padlock Attachment
Accessories Load Side Lugs
Standards CSA C22.2 No. 5, HACR, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features Ground Fault Equipment Protection, HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism
