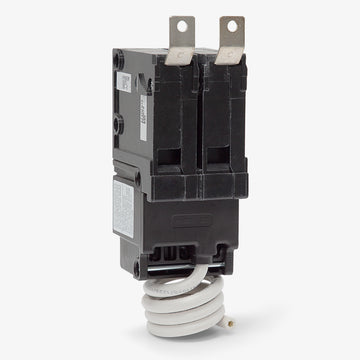

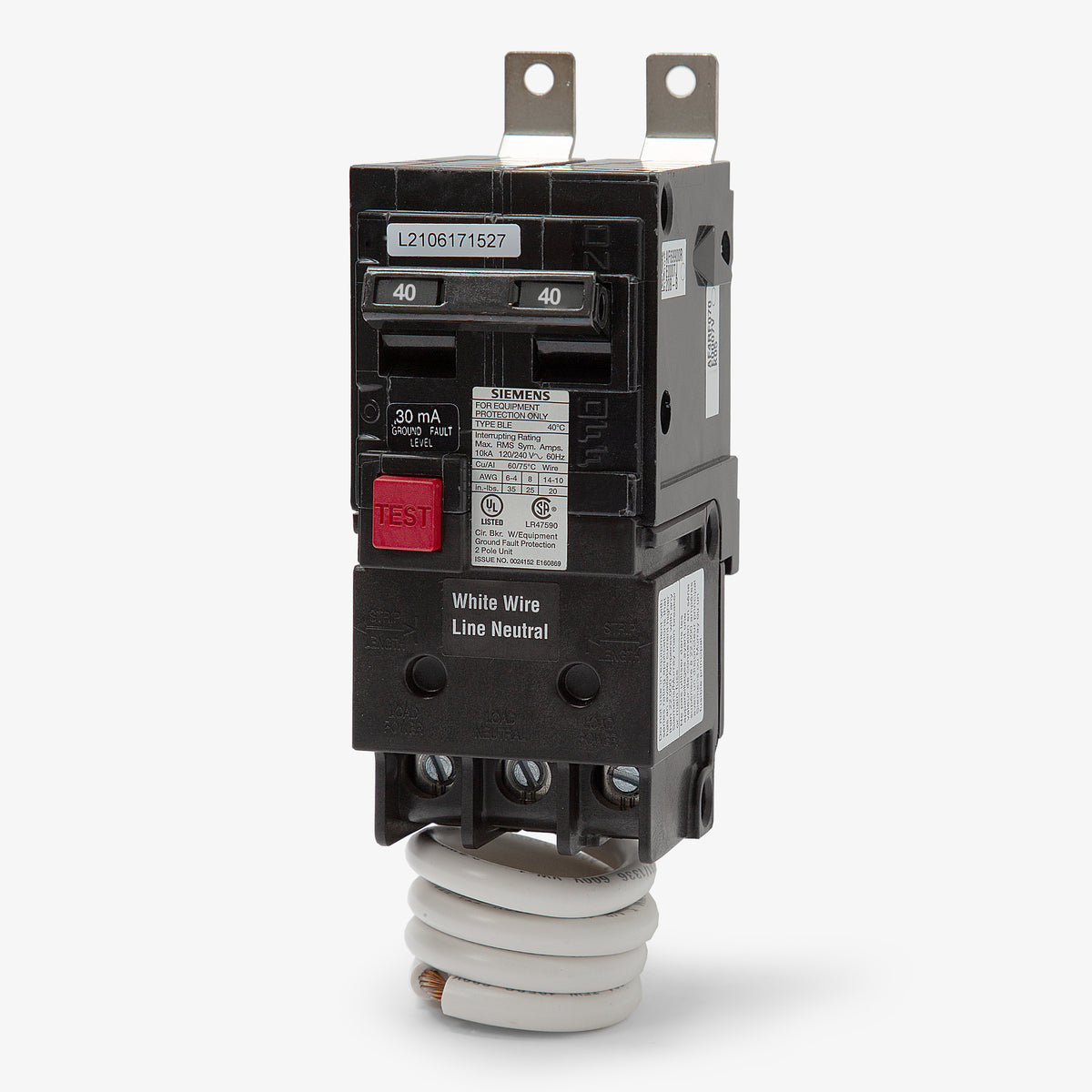

Siemens BE240H GFEP Molded Case Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
Siemens
BE240H
GFEP Molded Case Circuit Breaker
Brand
Siemens
SKU
BE240H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BE240H - 40A GFEP Molded Case Circuit Breaker
New
Quantity
Similar Items
60A GFEP Molded Case Circuit Breaker
20A GFEP Molded Case Circuit Breaker
15A GFEP Molded Case Circuit Breaker
Description

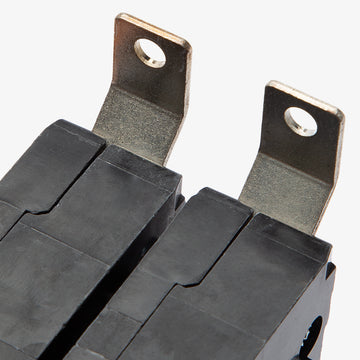

Engineered for commercial applications, the Siemens BE240H delivers reliable ground fault equipment protection (GFEP). It features a 30mA trip sensitivity designed to safeguard machinery and heat trace cables from damaging line-to-ground faults. This 40A, 2-pole breaker mounts into Siemens P1, P2, and P3 panelboards via a secure bolt-on connection. It serves as a predecessor to the B240EGH model. Rated for 22kAIC at 120/240VAC, this high-interrupting breaker includes HACR certification.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BE240H |
| Series | BE |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhich panelboards are compatible with the BE240H circuit breaker?
The BE240H is a bolt-on breaker designed exclusively for use in Siemens P1, P2, and P3 panelboards. It is not compatible with standard residential load centers that require plug-on connections.
What is the ground fault trip sensitivity for the BE240H?
This breaker provides Ground Fault Equipment Protection (GFEP) with a 30mA trip sensitivity. It is designed to protect equipment, rather than providing the 5mA personnel protection found in standard GFCI breakers.
Does the BE240H require a neutral connection for installation?

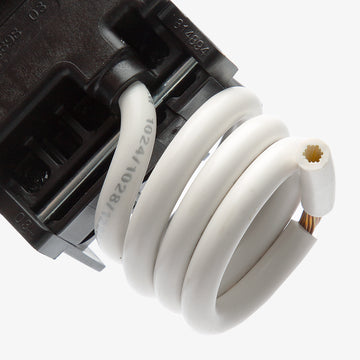

Yes, this breaker includes a pigtail neutral wire that must be connected to the panelboard neutral bus to ensure the ground fault equipment protection functions correctly.
What is the difference between the Siemens BE240 and the BE240H?
Both are 40A, 2-pole GFEP breakers, but the BE240H features a higher interrupting rating of 22kAIC at 120/240VAC. The standard BE240 is rated for 10kAIC.
What frame type does the BE240H use?
The BE240H utilizes the BLEH frame, which is the 22kAIC high-interrupting version of the standard BLE frame bolt-on breaker.
What applications typically require a 30mA GFEP breaker like the BE240H?
A 30mA Ground Fault Equipment Protection breaker is typically required for industrial machinery, snow melting equipment, and heat trace cables where a standard 5mA GFCI would be prone to nuisance tripping.
