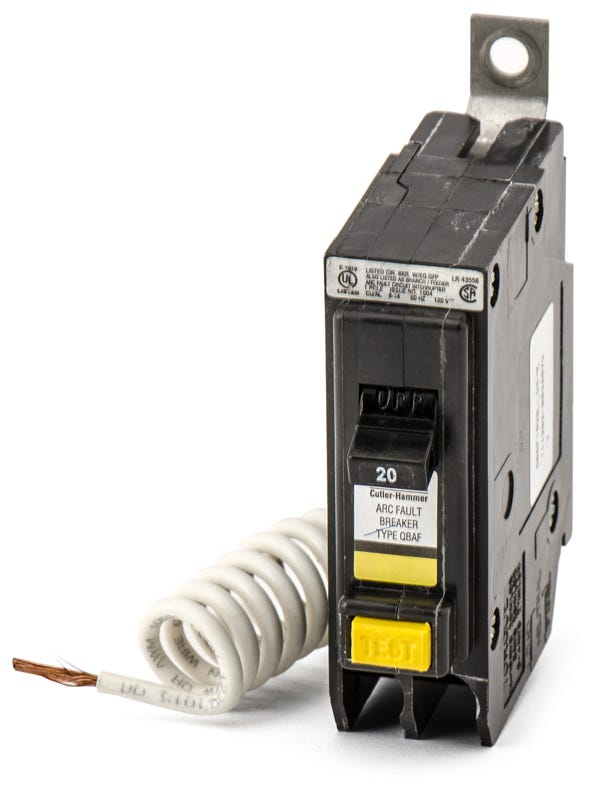

Eaton / Cutler-Hammer QBAF1020 AFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBAF1020
AFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBAF1020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBAF1020 - 20A AFCI Miniature Circuit Breaker
New
Quantity
Similar Items
20A AFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQBCAF1020
20A AFCI Miniature Circuit Breaker
Description
Part of the Quicklag family, this 20A single-pole breaker provides branch/feeder arc fault protection for commercial electrical systems. It operates at 120VAC with a 10kA interrupting capacity to help prevent electrical fires. Engineered for a precise fit, the unit bolts securely into Eaton Pow-R-Line panelboards. It features a pigtail neutral connection. Note that this model is replaced by the newer QB1020CAF. The thermal-magnetic trip mechanism is HACR and SWD rated for switching duty.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBAF1020 |
| Series | QBAF |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Load Side Lugs Included, Pigtail Neutral |
| Standards | HACR, UL 489, UL 1699 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards are compatible with the QBAF1020?
This bolt-on breaker is designed exclusively for use in Eaton Pow-R-Line panelboards that accept Quicklag BAB frame breakers.
What type of arc fault protection does the QBAF1020 provide?
The QBAF1020 is a Branch/Feeder type Arc Fault Circuit Interrupter (AFCI). It is designed to detect parallel arcing faults in branch circuits and feeder wiring.
Is there a newer combination AFCI replacement for the QBAF1020?
Yes. If your local electrical code requires a Combination type AFCI to detect both series and parallel arcs, the direct replacement is the Eaton QB1020CAF.
How is the neutral connection wired on this breaker?
The QBAF1020 features a pigtail neutral wire. This pigtail must be connected directly to the panelboard neutral bus bar to power the internal arc fault detection circuitry.
Can the QBAF1020 be used for switching lighting loads?
Yes, this breaker is SWD (Switching Duty) rated, meaning it is approved for switching 120VAC fluorescent lighting loads on a regular basis.
Is the QBAF1020 suitable for HVAC equipment?
Yes, it is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires a 20A, 120V circuit.
Does the QBAF1020 provide ground fault (GFCI) protection?
No, the QBAF1020 is strictly an Arc Fault Circuit Interrupter (AFCI). It does not provide GFCI protection for personnel. If dual function protection is required, a different breaker model must be used.
