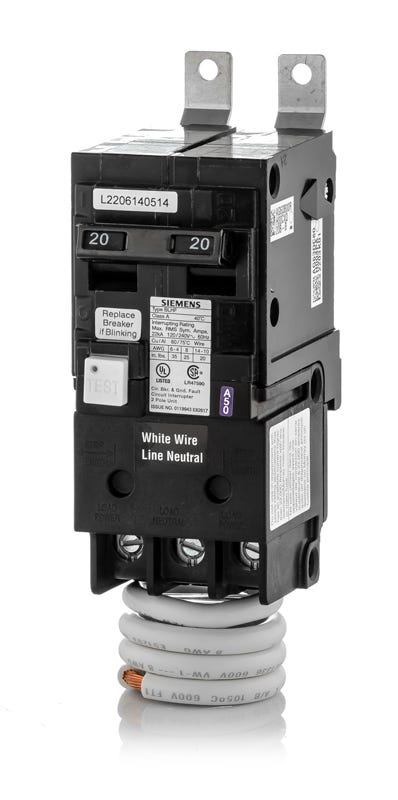

Siemens BF220AH GFCI Molded Case Circuit Breaker
- 20A
- 2 Pole
- Bolt-On
Siemens
BF220AH
GFCI Molded Case Circuit Breaker
Brand
Siemens
SKU
BF220AH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BF220AH - 20A GFCI Molded Case Circuit Breaker
New
Quantity
Similar Items
15A GFCI Molded Case Circuit Breaker
30A GFCI Molded Case Circuit Breaker
40A GFCI Molded Case Circuit Breaker
Description
Designed for systems with higher available fault currents, the Siemens BF220AH offers a robust 22kAIC rating at 120/240VAC. This 2-pole, 20-amp bolt-on breaker provides 5mA Class A ground fault protection with built-in self-testing functionality. It fastens securely into Siemens P1, P2, and P3 panelboards for commercial and industrial applications. While currently being replaced by the B220GFH, it remains an excellent choice for exact component matching.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BF220AH |
| Series | BF |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Self-Test Feature |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test |
Product FAQs
6 answersWhat panelboards are compatible with the Siemens BF220AH?
The BF220AH is a bolt-on molded case circuit breaker designed specifically for installation in Siemens P1, P2, and P3 panelboards.
What does the H in the BF220AH catalog number signify?
The H indicates a high interrupting rating. The BF220AH is rated for 22kAIC at 120/240VAC, compared to the standard 10kAIC rating of the base BF220A model.
What level of ground fault protection does the BF220AH provide?
This breaker provides 5mA Class A ground fault protection, which is designed for personnel safety to prevent severe electrical shock.
How is the neutral connection wired on this GFCI breaker?
The BF220AH features a pigtail neutral wire that must be connected directly to the neutral bus bar of the panelboard to ensure the ground fault detection circuitry operates correctly.
Is there a newer replacement model for the BF220AH?
Yes, the BF220AH is being transitioned to the newer Siemens B220GFH catalog number. However, the BF220AH remains an exact component match for maintaining existing panelboards.
What wire sizes are accepted by the load lugs on the BF220AH?
The load side lugs are rated to accept 14 to 10 AWG copper conductors or 12 to 10 AWG aluminum conductors.
