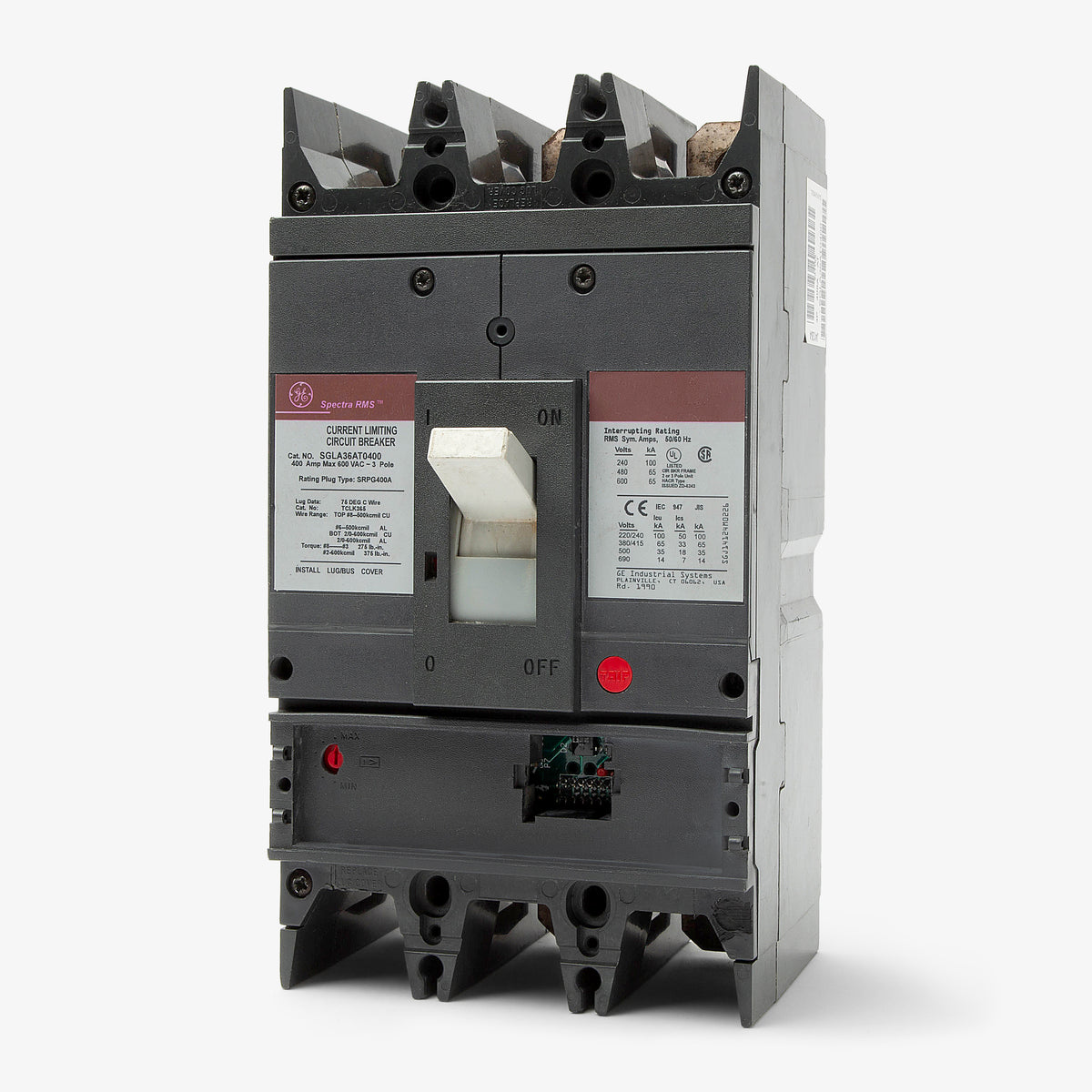

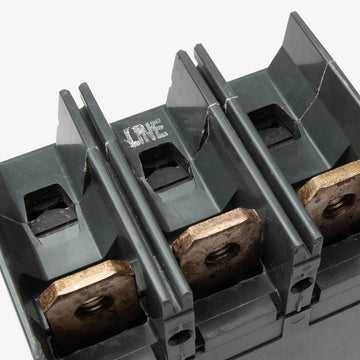

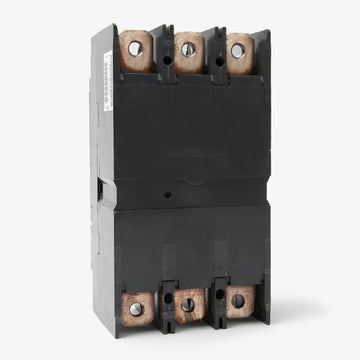

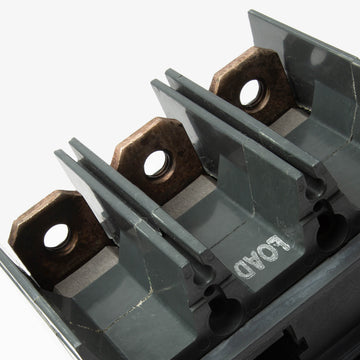

ABB / General Electric SGLA36AT0400 Molded Case Circuit Breaker Frame Only
- 400A
- 3 Pole
- Bolt-On
ABB / General Electric
SGLA36AT0400
Molded Case Circuit Breaker Frame Only
Brand
ABB / General Electric
SKU
SGLA36AT0400
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric SGLA36AT0400 - 400A 3 Pole Molded Case Circuit Breaker Frame Only
New
Quantity
Quantity
ABB / General Electric SGLA36AT0400 - 400A 3 Pole Molded Case Circuit Breaker Frame Only
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | SGLA36AT0400 |
| Series | SGLA |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 65kA @ 600VAC |
| Frame Type | SGLA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 8 AWG - 600 kcmil (Cu/Al) or (2) 2/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 8 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Rating Plugs, Lug Kits, Motor Operator |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, True RMS Sensing, Interchangeable Trip Unit, Reverse Feed, HACR Rated |
Quantity
ABB / General Electric SGLA36AT0400 - 400A 3 Pole Molded Case Circuit Breaker Frame Only
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | SGLA36AT0400-R |
| Series | SGLA |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 65kA @ 600VAC |
| Frame Type | SGLA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 8 AWG - 600 kcmil (Cu/Al) or (2) 2/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 8 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Rating Plugs, Lug Kits, Motor Operator |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, True RMS Sensing, Interchangeable Trip Unit, Reverse Feed, HACR Rated |
Similar Items
ABB / General ElectricSGLC3604L4XX
400A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSGLC3604L5XX
400A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSGLC3604L7XX
400A 3 Pole Molded Case Circuit Breaker
Description
Designed for high-capacity 600V systems, the GE SGLA36AT0400 is a 400-amp, 3-pole molded case circuit breaker frame equipped with solid-state technology. It features true RMS sensing and an interchangeable rating plug to accommodate precise load requirements. This SG frame unit mounts into Spectra Series panelboards and motor control centers to provide reliable current-limiting protection. When replacing legacy equipment, it can be substituted with the ABB XT5H 400 Ekip Dip LS/I via retrofit kit.
Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SGLA36AT0400 |
| Series | SGLA |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 65kA @ 600VAC |
| Frame Type | SGLA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 8 AWG - 600 kcmil (Cu/Al) or (2) 2/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 8 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Rating Plugs, Lug Kits, Motor Operator |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, True RMS Sensing, Interchangeable Trip Unit, Reverse Feed, HACR Rated |
Product FAQs
6 answersIs the SGLA36AT0400 a complete breaker ready for wiring?
No, the SGLA36AT0400 is a frame only. To complete the breaker for installation, you must separately source and install an interchangeable rating plug, line and load lugs, and mounting hardware.
Which rating plugs are compatible with the SGLA36AT0400 frame?
This 400A SG-frame breaker accepts GE SRPG400 series rating plugs. You can use the SRPG400A400 for a full 400-amp rating, or install lower amperage plugs like the SRPG400A300 or SRPG400A225 to establish a lower trip point for your system.
Which lug kit is designed for this 3-pole SG frame?
The TCLK365 3-pole lug kit is typically used for this frame. It accepts either one 8 AWG to 600 kcmil conductor or two 2/0 AWG to 500 kcmil conductors per phase, supporting both copper and aluminum wire.
What adjustments does the LSI trip unit provide?
The electronic LSI unit provides adjustable Long-Time, Short-Time, and Instantaneous trip functions. This solid-state true RMS sensing allows panel builders and electricians to achieve precise selective coordination with upstream and downstream devices.
Can this breaker be used in standard commercial load centers?
No. The SGLA36AT0400 features a bolt-on mounting style specifically engineered for high-capacity industrial applications, including GE and ABB Spectra Series panelboards, switchboards, and motor control centers.
Are GE Spectra RMS breakers now manufactured by ABB?
Yes. Following ABB's acquisition of GE Industrial Solutions, the Spectra RMS line is an ABB platform. You may find the SGLA36AT0400 breaker and its required accessories branded under either the GE or ABB name, but they are fully interchangeable.
