Siemens B3100 Circuit Breaker
- 100
- 3 Pole

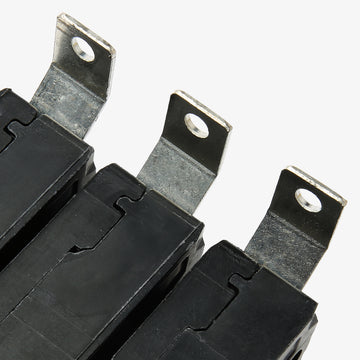

- Bolt-On
Siemens
B3100
Circuit Breaker
Brand
Siemens
SKU
B3100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B3100 3 Pole Circuit Breaker
New
Quantity
Quantity
Siemens B3100 3 Pole Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B3100 |
| Series | BL |
| Amperage | 100 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240V |
| Phase | 3 |
| AIC Rating | 35kAIC at 240V |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | AWG 4 to 1/0, Cu, AWG 2 to AWG 1/0, Al |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip |
Sold out
Quantity
Siemens B3100 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B3100-R |
| Series | BL |
| Amperage | 100 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240V |
| Phase | 3 |
| AIC Rating | 35kAIC at 240V |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | AWG 4 to 1/0, Cu, AWG 2 to AWG 1/0, Al |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip |
Similar Items
100A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description

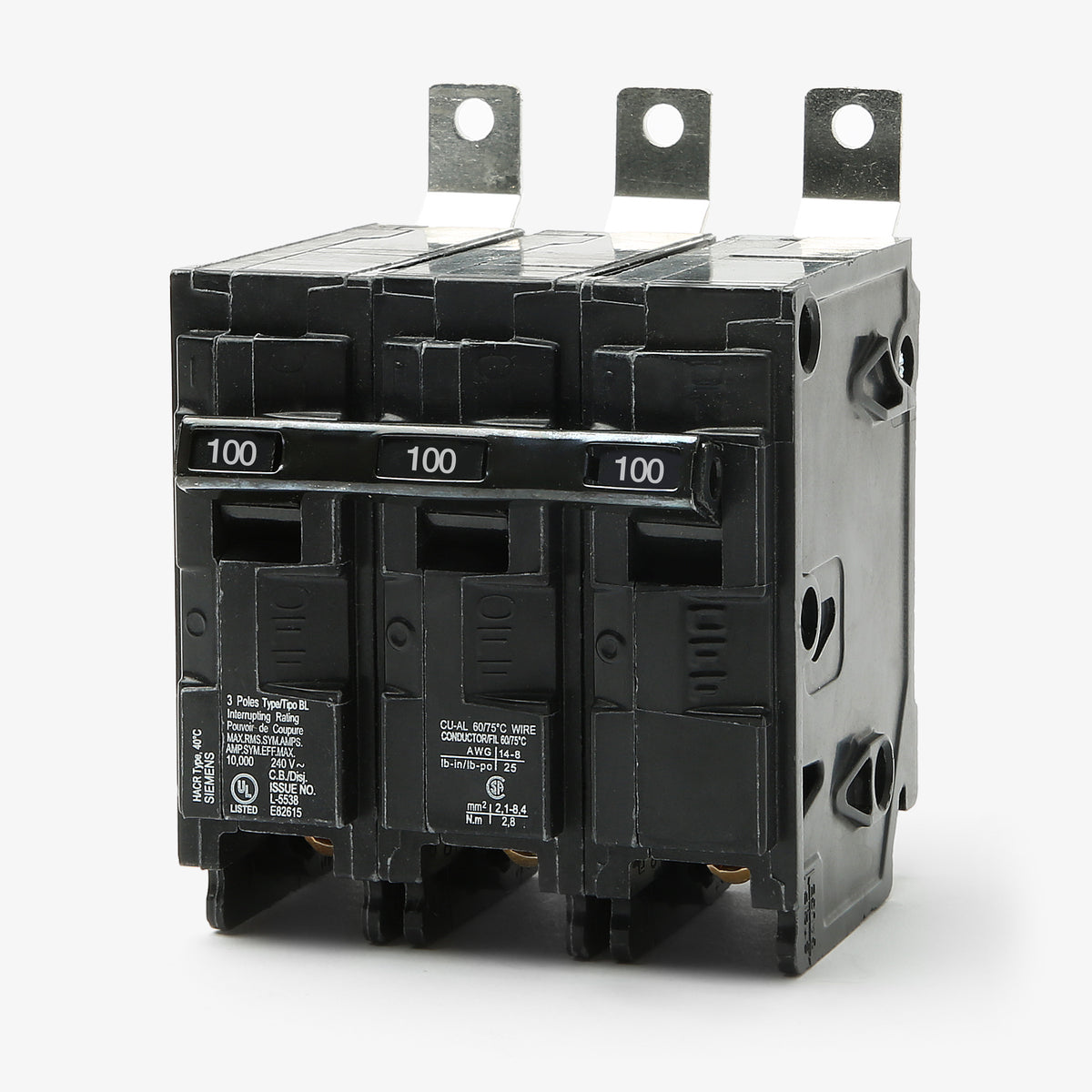

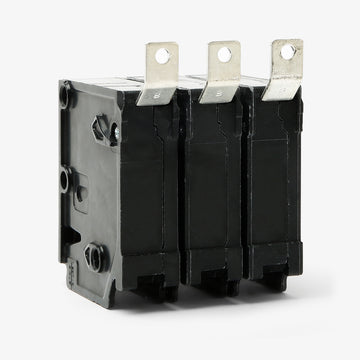

Siemens B3100 3 Pole Circuit Breaker
The Siemens B3100 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 100 Amps and a voltage rating of 240V. It has an interrupting rating of 10kAIC at 240V. The B3100 has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Siemens |
|---|---|
| Part Number | B3100 |
| Series | BL |
| Amperage | 100 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240V |
| Phase | 3 |
| AIC Rating | 35kAIC at 240V |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | AWG 4 to 1/0, Cu, AWG 2 to AWG 1/0, Al |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip |
Product FAQs
5 answersCan the Siemens B3100 be installed in a standard residential plug-on load center?
No. The B3100 is a Type BL bolt-on circuit breaker designed exclusively for commercial and industrial panelboards, including the Siemens P1, P2, P3, P4, and P5 series. It is incompatible with standard residential load centers, which require plug-on breakers like the Type QP.
Are there direct alternatives to the B3100 with higher interrupting ratings?
Yes. The standard B3100 (Type BL) provides a 10kAIC interrupting rating at 240VAC. For applications requiring greater short-circuit protection, Siemens offers the B3100H (Type BLH) rated at 22kAIC, and the B3100HH (Type HBL) rated at 65kAIC at 240VAC.

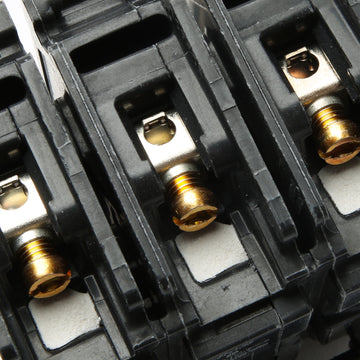

What wire types and sizes are compatible with the B3100 load lugs?
The factory-installed lugs accept both copper and aluminum wiring. For copper conductors, the supported range is 4 AWG to 1/0 AWG. For aluminum conductors, use 2 AWG to 1/0 AWG. Ensure all connections are torqued to the specifications printed directly on the breaker label during installation.
Can the trip settings on the B3100 be modified in the field?
No, the thermal-magnetic trip unit is completely fixed. The Long-Time (L) function for sustained overloads and the Instantaneous (I) function for short-circuit protection are pre-calibrated at the factory and cannot be adjusted.
Is the Siemens B3100 approved for use with HVAC equipment?
Yes, this breaker is HACR rated. It is listed and approved for use with multi-motor and combination loads commonly found in heating, air conditioning, and refrigeration equipment, providing safe overcurrent protection for these specialized systems.
