Siemens B38000S01 Molded Case Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
Siemens
B38000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
B38000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

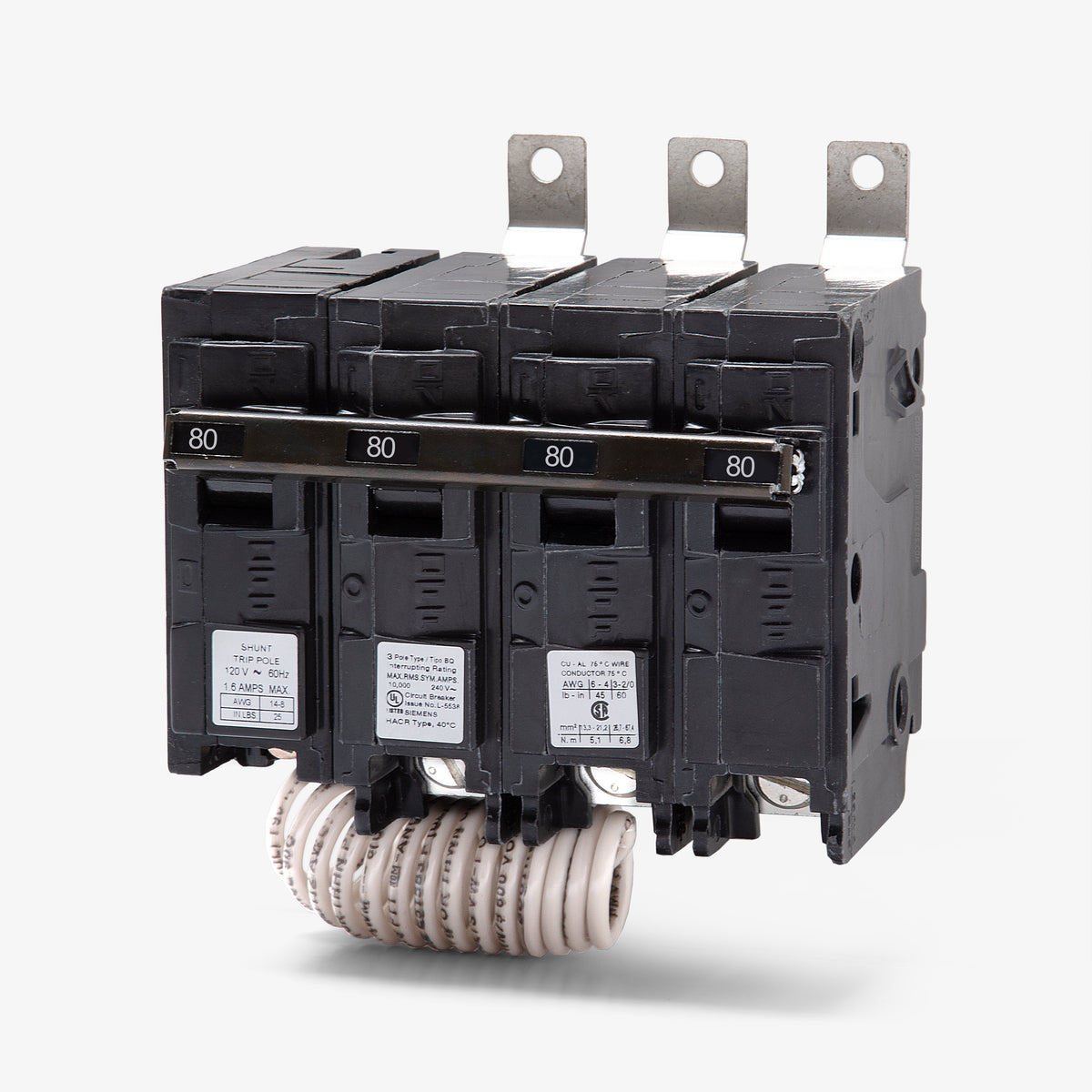

Siemens B38000S01 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
35A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
Description

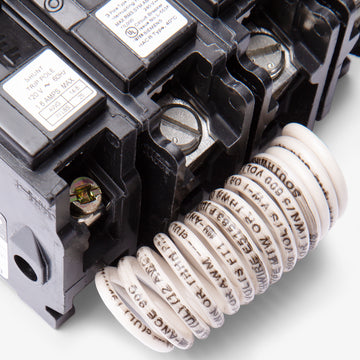

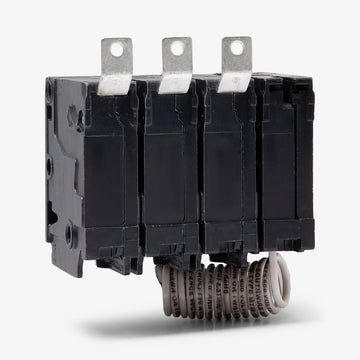

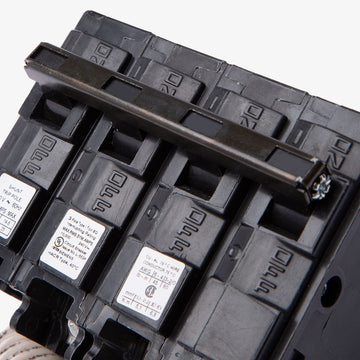

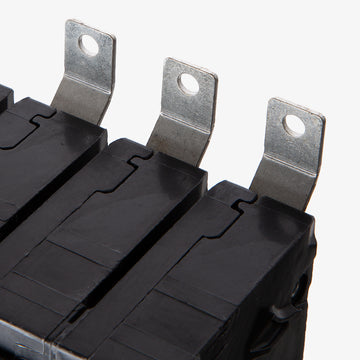

Designed for advanced control, the Siemens B38000S01 is a 3-pole, 80A molded case circuit breaker featuring a factory-installed 120VAC shunt trip. This allows facility managers to remotely open the breaker for emergency shutdowns or automated control. The breaker mounts securely into Siemens P1, P2, and P3 panelboards using a bolt-on connection. It includes standard lug terminals that accept 4-1/0 AWG copper conductors. Delivering 10kAIC at 240VAC, this thermal-magnetic unit is HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B38000S01 |
| Series | B |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
5 answersWhat does the "00S01" suffix mean on the Siemens B38000S01?
The "00S01" suffix indicates that this circuit breaker includes a factory-installed 120VAC shunt trip accessory.
What is the purpose of the integrated shunt trip on this breaker?
The 120VAC shunt trip allows the breaker to be opened remotely via an external control signal. This is commonly used for emergency power-off (EPO) systems, fire alarm integration, or automated load shedding.
Which panelboards are compatible with the B38000S01 circuit breaker?
This bolt-on molded case circuit breaker is designed for direct installation into Siemens P1, P2, and P3 panelboards.
Is the Siemens B38000S01 HACR rated?
Yes, this thermal-magnetic circuit breaker is HACR rated, making it suitable for group motor applications in heating, air conditioning, and refrigeration equipment.
Is the B38000S01 the same as a standard B380 breaker?
It uses the same 80A, 3-pole B-frame (Type BL) base as the standard B380, but the B38000S01 specifically includes the factory-installed 120V shunt trip.
