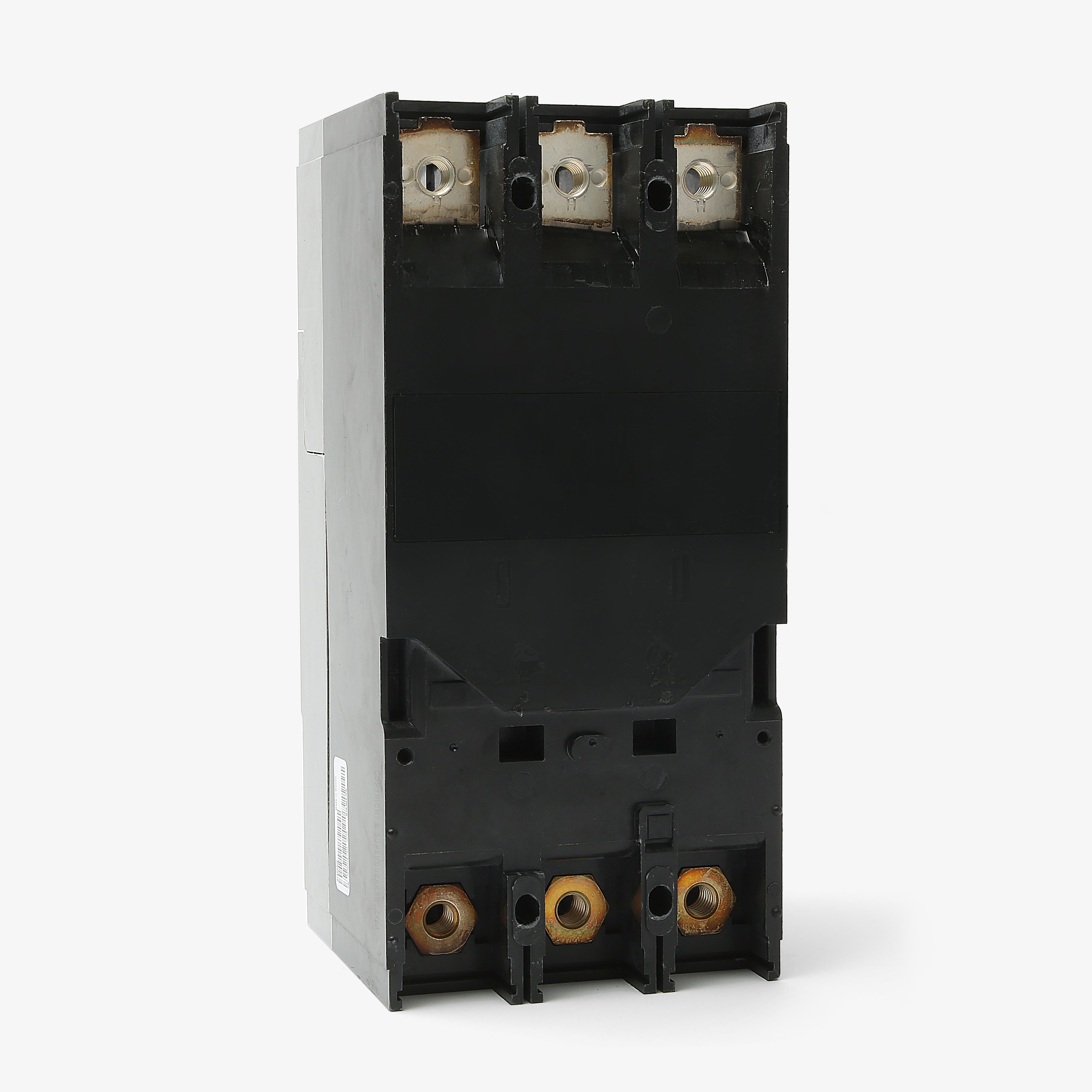

Siemens FXD63B225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Siemens
FXD63B225
Molded Case Circuit Breaker
Brand
Siemens
SKU
FXD63B225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens FXD63B225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens FXD63B225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | FXD63B225 |
| Series | FXD6 |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC, 18kA @ 500VDC |
| Frame Type | FXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards, Motor Control Centers, Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Not Included (Requires Lug Kit TA1FD350A) |
| Standards | HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens FXD63B225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | FXD63B225-R |
| Series | FXD6 |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC, 18kA @ 500VDC |
| Frame Type | FXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards, Motor Control Centers, Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Not Included (Requires Lug Kit TA1FD350A) |
| Standards | HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
200A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Part of the Sentron FD Frame series, the Siemens FXD63B225 is a 3-pole, 225A molded case circuit breaker built for commercial and industrial applications. It mounts into Siemens P1, P2, and P3 panelboards, motor control centers, and switchboards. This model requires the TA1FD350A lug kit, as lugs are not factory-installed. Featuring fixed thermal and adjustable magnetic trip functions, it delivers 35kAIC at 480VAC. The breaker is HACR rated and suitable for reverse feed installations.Specifications
| Brand | Siemens |
|---|---|
| Part Number | FXD63B225 |
| Series | FXD6 |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC, 18kA @ 500VDC |
| Frame Type | FXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards, Motor Control Centers, Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Not Included (Requires Lug Kit TA1FD350A) |
| Standards | HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards and enclosures are compatible with the FXD63B225 breaker?
This unit-mount FD-frame breaker is designed for Siemens Sentron series panelboards (P1, P2, and P3), switchboards, motor control centers (MCCs), and standalone enclosures designed for FD-frame components.
What type of mounting does the FXD63B225 utilize?
It features a bolt-on connection for unit mounting. Ensure torque specifications listed on the breaker face are followed when connecting the lugs to the bus or conductors.
How do I adjust the trip settings on the FXD63B225?
The FXD63B225 features a thermal-magnetic trip unit with a fixed thermal element (long-time) at 225A and an adjustable magnetic element (instantaneous). The magnetic trip can be adjusted via the dial on the face of the breaker to coordinate with downstream devices and handle specific motor inrush currents.
Can the FXD63B225 be used in DC electrical systems?
Yes, this breaker is rated for both AC and DC systems. It offers a DC interrupting capacity of 30kA at 250VDC and 18kA at 500VDC. Ensure proper series wiring of poles when installing in 500VDC applications.
What is the difference between the FXD63B225 and the HFXD63B225?
Both are 225A, 3-pole, FD-frame breakers. The difference lies in their maximum interrupting capacity. The FXD63B225 is rated for 35kA at 480VAC, whereas the HFXD63B225 is the high-interrupting version rated for 65kA at 480VAC.
What safety functions are provided by the FXD63B225 trip unit?
The LI (Long-Time, Instantaneous) thermal-magnetic trip unit provides foundational circuit protection. The fixed thermal element protects against sustained overloads, while the adjustable magnetic element clears sudden short circuits to protect wiring and electrical equipment.
