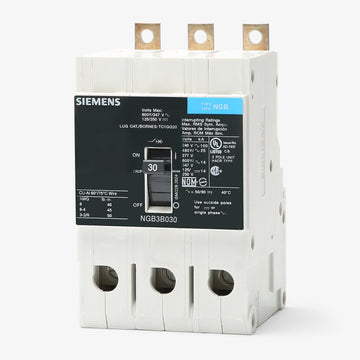

The NGB3B030B is a 3-pole, 30A molded case circuit breaker from Siemens, built for commercial and industrial branch circuits. It delivers dependable long-time and instantaneous thermal-magnetic protection. This bolt-on MCCB installs into Siemens P1, P2, P3, P4, and P5 panelboards. It is replaced by the 3VA5130-4ED36-0AA0, which requires a mounting kit for legacy panels. Rated at 100kAIC at 240VAC and 25kAIC at 480Y/277VAC, it handles high fault currents. It is HACR and HID rated.
What panels are compatible with the Siemens NGB3B030B circuit breaker?
This molded case breaker is designed to bolt directly into the bus bars of Siemens P1, P2, P3, P4, and P5 series panelboards.
Does the NGB3B030B include terminal lugs on both ends?

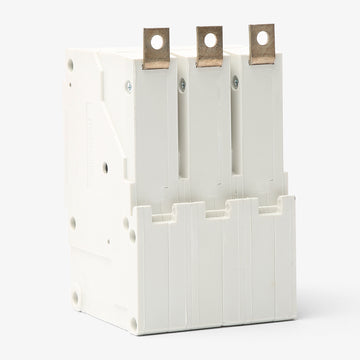

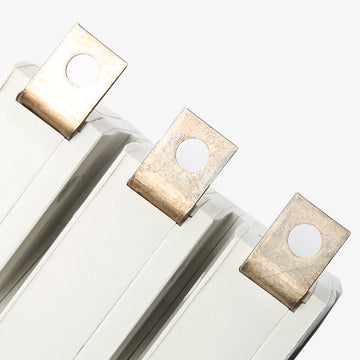

No. Because it is a panelboard-mounted circuit breaker, it utilizes a bolt-on connection for the line side and comes standard with a load-side lug only.
What wire sizes are accepted by the load lug on this breaker?

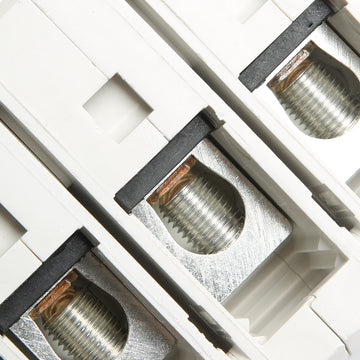

The factory-installed lug accommodates 14 to 6 AWG copper wire or 12 to 6 AWG aluminum conductors.
Can the NGB3B030B be used in reverse-feed applications?
Yes, this Sentron series thermal-magnetic breaker is suitable for reverse-feed configurations because its internal trip unit is not removable or interchangeable. It is also HACR and HID rated for specialized loads.
Is there a direct replacement for the NGB3B030B?
Yes, Siemens has transitioned to the 3VA5130-4ED36-0AA0 as the modern equivalent for this model. If you are installing the newer 3VA breaker into legacy P1 through P5 panelboards, a separate mounting hardware kit will be required.
Does the NGB3B030B feature adjustable trip settings?
No, this model is equipped with a fixed thermal and fixed magnetic trip unit. It delivers dependable long-time and instantaneous (LI) protection that cannot be field-adjusted.
Is this breaker suitable for direct current (DC) electrical systems?
Yes, in addition to standard AC voltages, the NGB3B030B is rated for DC applications. It provides a 14kAIC interrupting capacity when used on 125/250VDC circuits.
