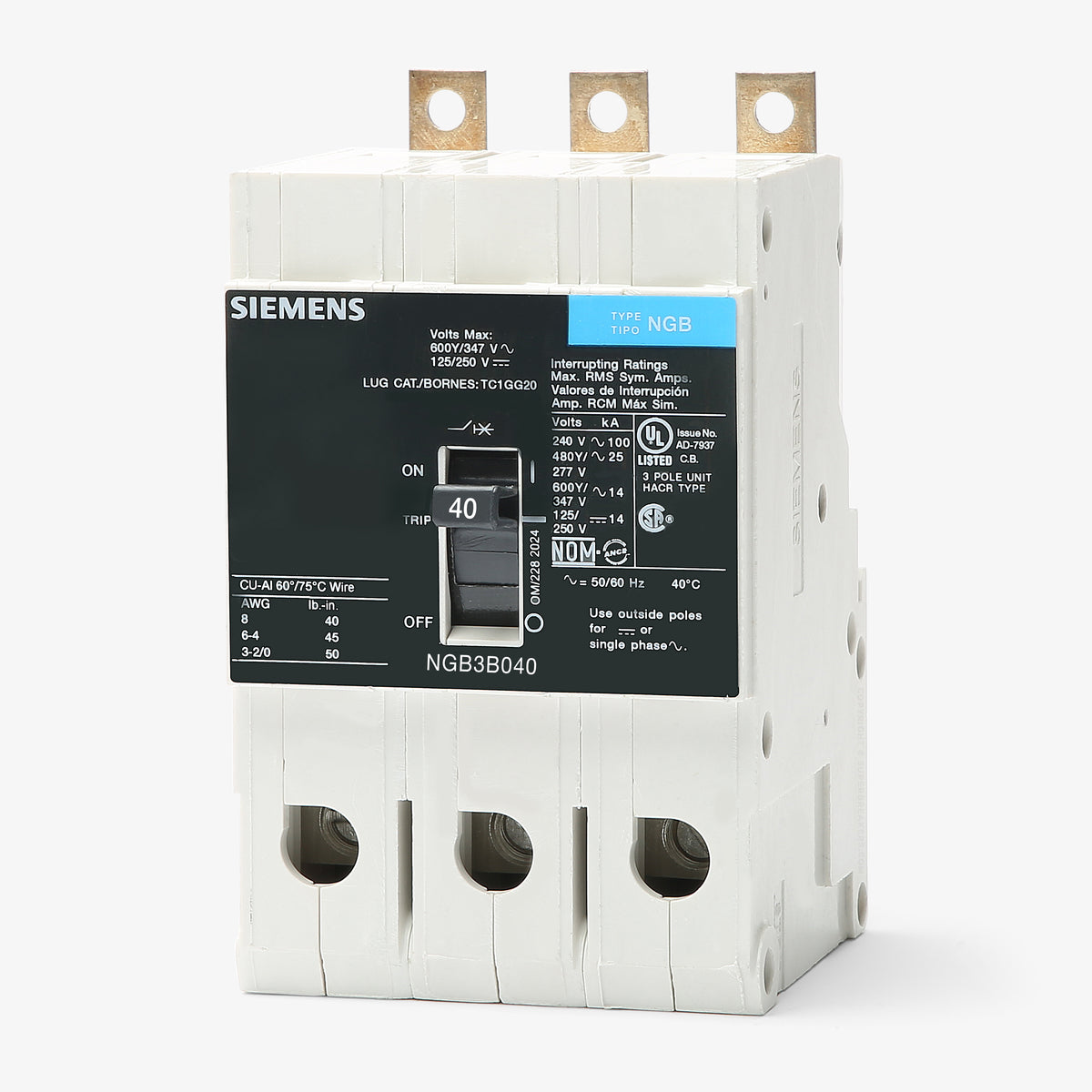

Siemens NGB3B040B Molded Case Circuit Breaker

  • 40A
  • 3 Pole
  • Bolt-On
Siemens NGB3B040B
Molded Case Circuit Breaker
Brand Siemens
SKU NGB3B040B
Select Item Condition
Earn 334 SuperPoints
  • 40A
  • 3 Pole
  • Bolt-On

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Siemens NGB3B040B - 40A 3 Pole Molded Case Circuit Breaker

Siemens NGB3B040B - 40A 3 Pole Molded Case Circuit Breaker

New

$334.60 In Stock

Quantity

Similar Items

Description

Engineered for commercial applications, the Siemens NGB3B040B is a 3-pole, 40A molded case circuit breaker from the SENTRON family. It provides dependable thermal-magnetic trip protection. This bolt-on MCCB installs into Siemens P1, P2, and P3 panelboards. It features a reverse-feed capable design and accepts 8-1/0 AWG copper wire via standard lugs. Rated for 100kAIC at 240VAC and 25kAIC at 480Y/277VAC. Note that this unit is replaced by the 3VA51 series, which requires a mounting kit.

Specifications

Key specifications
Brand Siemens
Part Number NGB3B040B
Series NGB
Amperage 40A
Poles 3
Mounting Style Bolt-On
Voltage 240VAC, 480Y/277VAC, 600Y/347VAC, 125/250VDC
Phase 3
AIC Rating 100kA @ 240VAC, 25kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 14kA @ 125/250VDC
Fit and installation
Terminal Type Lugs
For Use With Siemens P1, P2, P3 Panelboards
Wire Gauge 8-1/0 AWG (Cu), 8-2/0 AWG (Al)
Max Wire 1/0 AWG (Cu), 2/0 AWG (Al)
Min Wire 8 AWG
Protection and operation
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Standards and features
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment
Accessories Load Side Lugs (3TC1GG20)
Standards CSA C22.2 No. 5, UL 489, NEMA AB 1
Approval CSA, HACR, UL
Temp Rating 40C
Construction Features HACR Rated, Reverse Feed

Product FAQs

8 answers
Which Siemens panelboards are compatible with the NGB3B040B?

This bolt-on molded case circuit breaker is designed for direct installation in Siemens P1, P2, and P3 panelboards.

Does this breaker include both line and load-side lugs?

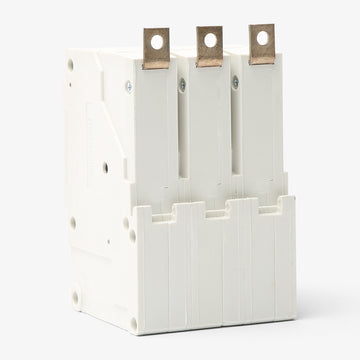

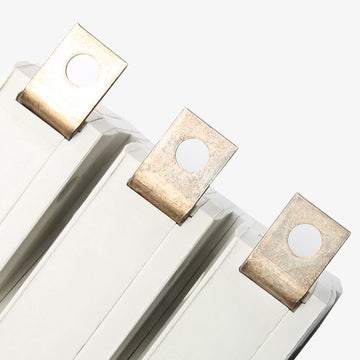

No. Because it is designed for panelboard mounting, the line side bolts directly to the panel bus. Mechanical lugs are provided on the load side only.

Can the NGB3B040B circuit breaker be reverse fed?

Yes. The thermal-magnetic trip unit is non-interchangeable, making this breaker suitable for reverse-feed applications.

Is the Siemens NGB3B040B suitable for HVAC equipment?

Yes. This breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration systems.

Can this 40A NGB breaker be used in DC branch circuits?

Yes. It is rated for DC distribution applications up to 125/250VDC with a maximum interrupting capacity of 14kAIC.

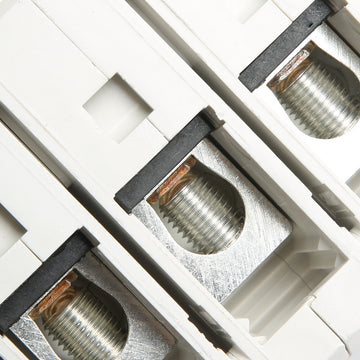

What size wire do the NGB3B040B lugs accept?

The factory-installed load-side lugs accept 8 to 1/0 AWG copper wire or 8 to 2/0 AWG aluminum wire.

Are the trip settings adjustable on this NGB breaker?

No. It features fixed thermal (long-time) and fixed magnetic (instantaneous) trip functions that cannot be modified in the field.

Can I use this breaker to replace an older ITE NGB3B040B?

Yes. Siemens manufactures the current NGB series as a direct replacement for legacy ITE breakers sharing the same catalog number and frame size.
