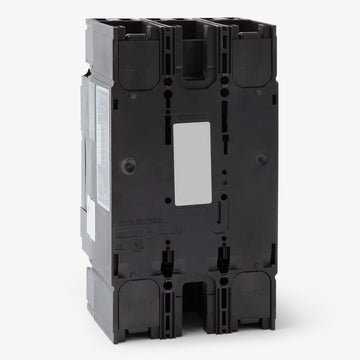

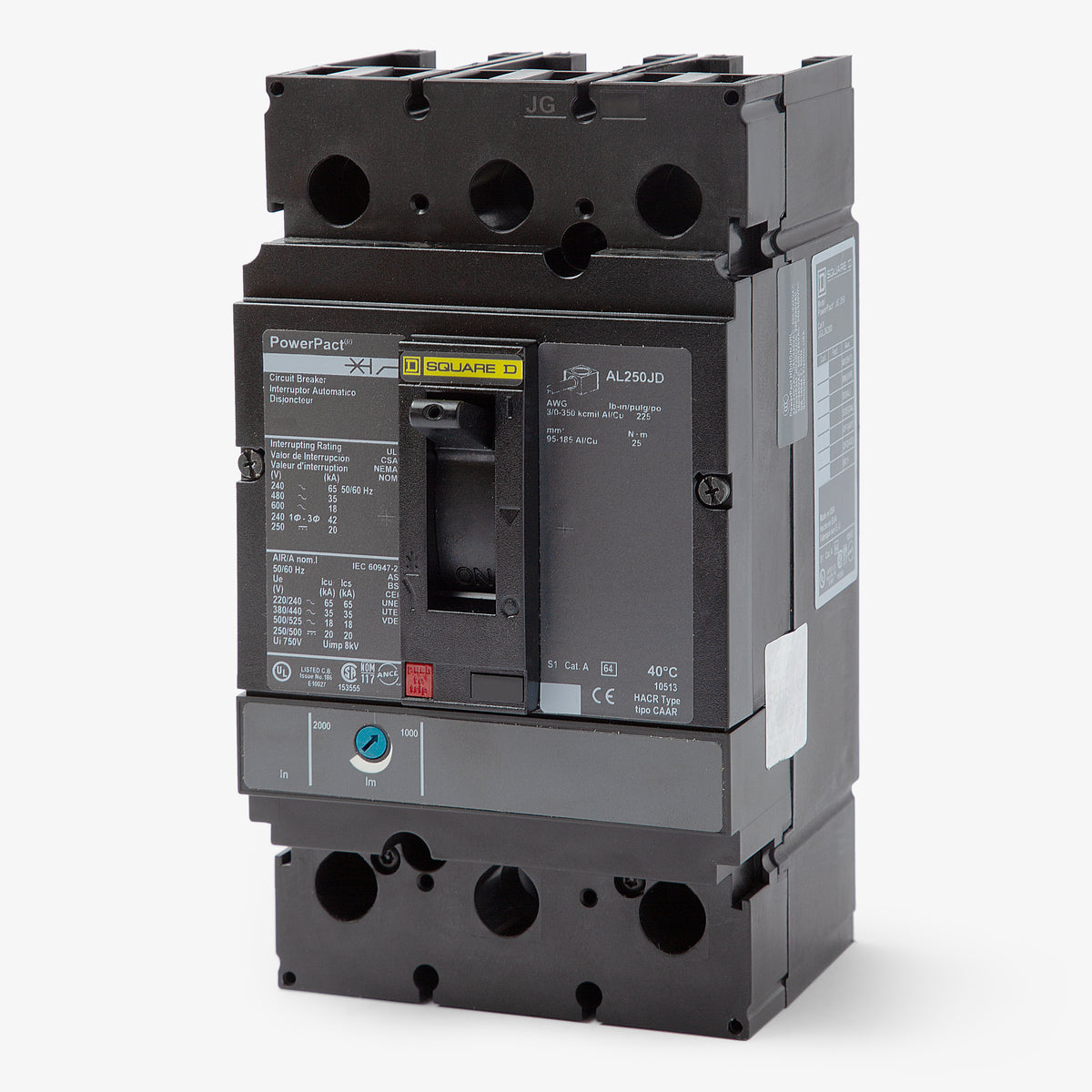

Square D JJL36250 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Unit Mount
Square D
JJL36250
Molded Case Circuit Breaker
Brand
Square D
SKU
JJL36250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D JJL36250 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D JJL36250 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | JJL36250 |
| Series | JJL |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D J-Frame Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator |
Quantity
Square D JJL36250 - 250A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | JJL36250-R |
| Series | JJL |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D J-Frame Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator |
Similar Items
200A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Belonging to the Square D PowerPacT J-Frame family, the JJL36250 provides 250 amps of robust thermal-magnetic protection. Built for commercial applications, it delivers reliable long-time and instantaneous (LI) trip functions. This 3-pole unit-mount breaker installs into Square D J-Frame enclosures, switchboards, and motor control centers, serving as a drop-in replacement for legacy KH36250 models. Rated at 65 kAIC at 480VAC, it features an adjustable magnetic trip and the Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | JJL36250 |
| Series | JJL |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D J-Frame Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator |
Product FAQs
7 answersCan the JJL36250 be reverse-fed?
Yes, standard unit-mount PowerPacT J-Frame thermal-magnetic circuit breakers like the JJL36250 are suitable for reverse connection.

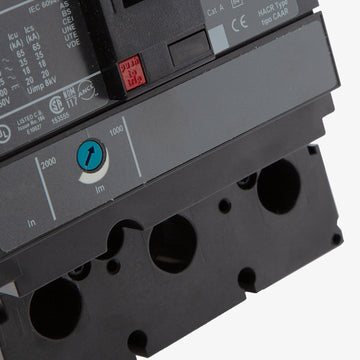

Is the trip unit on the JJL36250 adjustable?
While the thermal trip setting is fixed, the magnetic trip is adjustable. For this 250A unit, the magnetic settings feature a hold current of 1250A and a guaranteed trip current of 2500A.

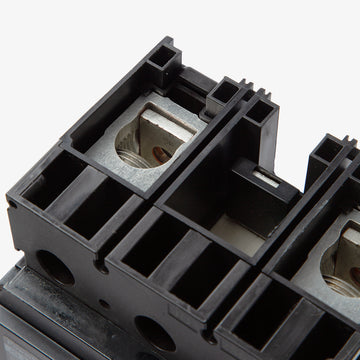

What is the correct tightening torque for the standard lugs on this breaker?
The standard AL250JD lugs require approximately 225 lb-in (25 N.m) of torque. Always verify with the torque specifications printed on the device label and use a 5/16-inch hex bit to properly secure the conductors.
How does the JJL36250 compare to the JDL36250 and JGL36250?
The second letter in the part number indicates the interrupting capacity. The JJL provides a 65kA rating at 480VAC, whereas the JDL offers 18kA and the JGL provides 35kA at the same voltage.
Can field-installable accessories be added to this breaker?
Yes, the PowerPacT J-Frame supports a variety of internal field-installable accessories, including shunt trips (MX), undervoltage releases (MN), auxiliary contacts (OF), and alarm switches (SD).
Is this circuit breaker rated for 80 percent or 100 percent continuous current?
The standard JJL36250 is an 80 percent rated circuit breaker. Applications requiring a 100 percent continuous current rating will require a different catalog configuration.
What safety and compliance standards does the JJL36250 meet?
This circuit breaker is UL 489 Listed for overcurrent protection. It also carries CSA, NOM, IEC, and CE markings for compliance across multiple regions.
