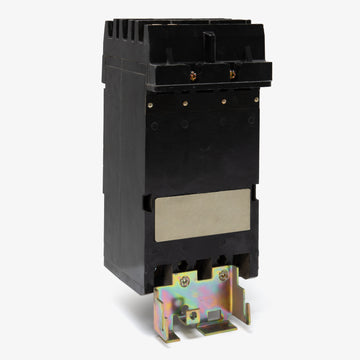

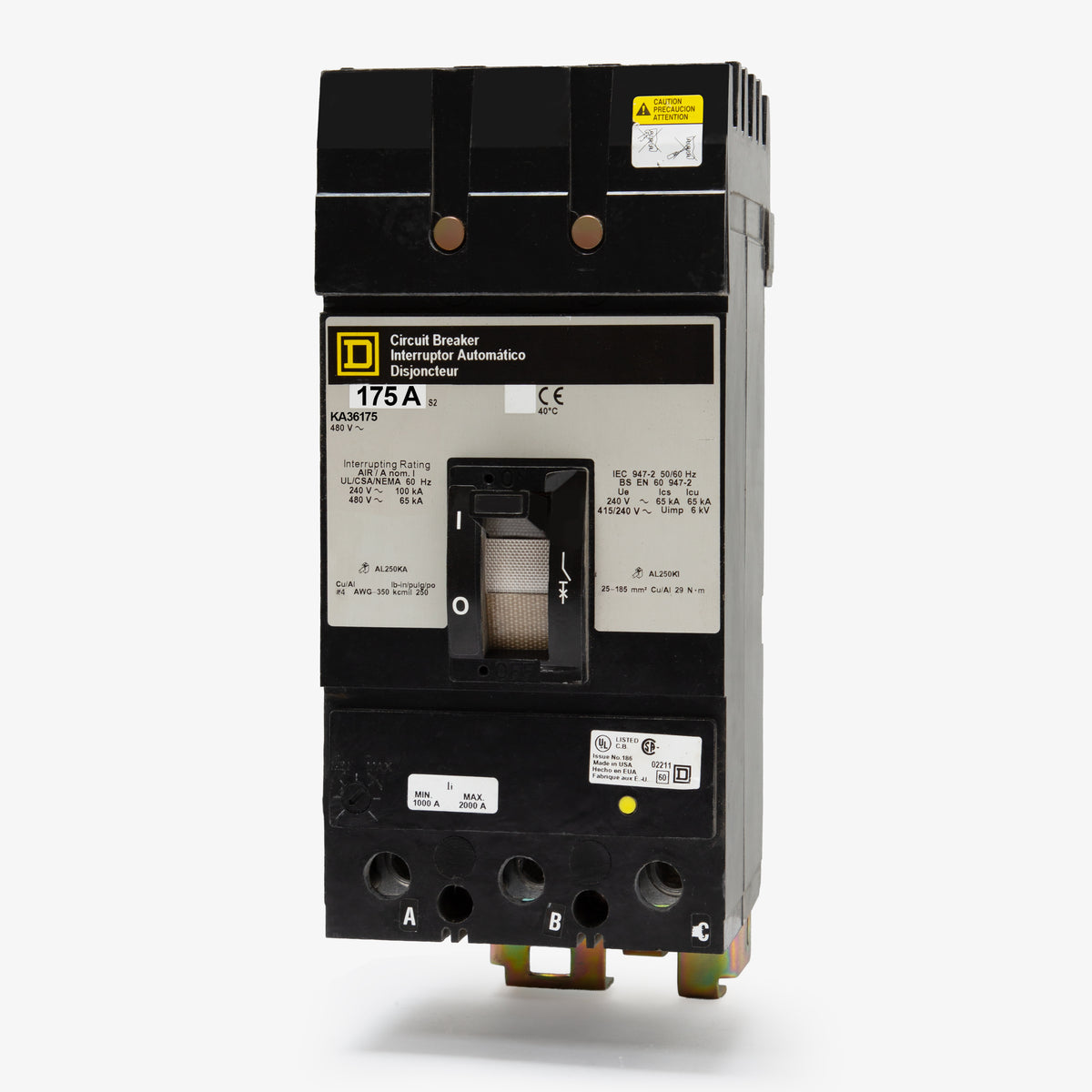

Square D KA36175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- I-Line
Square D
KA36175
Molded Case Circuit Breaker
Brand
Square D
SKU
KA36175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KA36175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Square D KA36175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA36175 |
| Series | KA |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D KA36175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA36175-R |
| Series | KA |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial environments, the Square D KA36175 is a 3-pole, 175A molded case circuit breaker from the legacy K-Frame family. It provides robust overcurrent protection for demanding electrical systems. This unit mounts into Square D I-Line panelboards and switchboards. As a legacy component, it is replaced by the PowerPact JGA36175, making it an ideal drop-in solution for maintaining existing infrastructure. It features a fixed thermal and adjustable magnetic trip unit (LI).Specifications
| Brand | Square D |
|---|---|
| Part Number | KA36175-R |
| Series | KA |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
8 answersWhich panelboards accept the KA36175 circuit breaker?
It is designed specifically for Square D I-Line panelboards and switchboards. Its plug-on jaw connection will not fit standard NQOD, NF, or QO load centers.
How is the KA36175 installed into the panel?

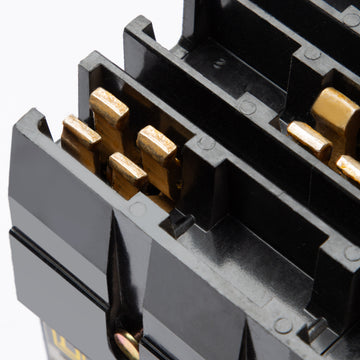

It utilizes the Square D I-Line plug-on system. The line side features spring-loaded clamping jaws that secure directly onto the I-Line busway, while the load side uses traditional mechanical lugs for outgoing field wiring.
What is the purpose of the adjustable magnetic trip on this breaker?
The adjustable magnetic trip allows electricians to tune the instantaneous short-circuit response. This flexibility helps prevent nuisance tripping from temporary current spikes, such as motor inrush currents, without sacrificing overload protection.
Can I land aluminum conductors directly on the KA36175 lugs?
Yes, the included factory lugs are dual-rated for both aluminum and copper wire. You can use conductors ranging from 4 AWG up to 350 kcmil.
What is the modern replacement for the KA36175?
The KA36175 is a legacy K-frame circuit breaker. For new installations or drop-in upgrades, Square D replaced this line with the PowerPact J-frame series, typically crossing to catalog numbers like JGA36175 or JGL36175.
Can I use this breaker for life-safety ground-fault protection?
No, the KA36175 features a standard thermal-magnetic trip unit strictly for overcurrent and short-circuit protection. It does not provide Equipment Ground-Fault Protection (EGFP) or Class A GFCI capabilities.
How does the trip function code LI operate?
The LI designation means the breaker provides Long-Time (L) overload protection via a fixed thermal element, and Instantaneous (I) short-circuit protection via an adjustable magnetic element.
Is the KA36175 suitable for direct current (DC) circuits?
Yes, it is rated for up to 250VDC with an interrupting capacity of 10kA. This makes it suitable for specific industrial DC distribution applications, provided the system voltage falls within this limit.
