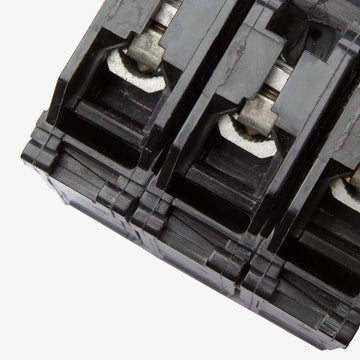

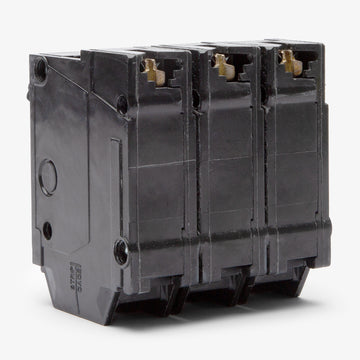

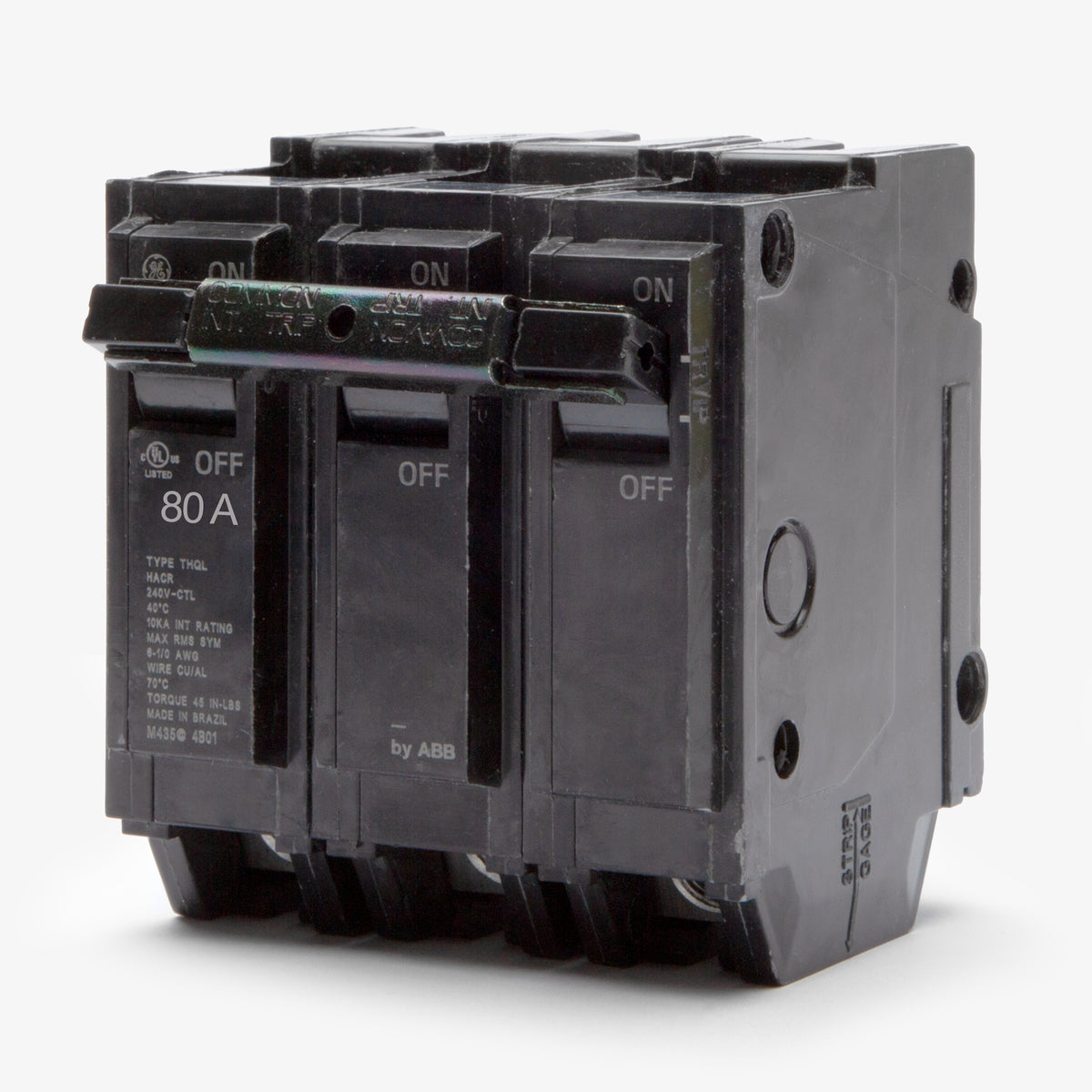

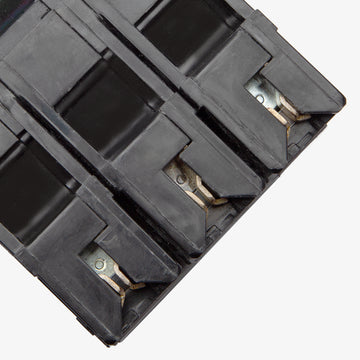

ABB / General Electric THQL32080 Miniature Circuit Breaker
- 80A
- 3 Pole
- Plug-On
ABB / General Electric
THQL32080
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL32080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL32080 - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQL32080 - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL32080 |
| Series | THQL |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards (Types AL, AQ), GE PowerMark Gold Load Centers |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQL32080 - 80A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL32080-R |
| Series | THQL |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards (Types AL, AQ), GE PowerMark Gold Load Centers |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQL32090
90A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL32090ST1
90A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL32070
70A 3 Pole Miniature Circuit Breaker
Description
Built for commercial applications, the GE THQL32080 is a 3-pole miniature circuit breaker rated for 80A at 240VAC. It features a Q-Line frame and thermal-magnetic trip technology for dependable protection. This plug-on breaker mounts into GE PowerMark Gold load centers and A-Series panelboards (Types AL, AQ). It accepts 6-1/0 AWG copper or 4-1/0 AWG aluminum wire. Rated at 10 kAIC, it includes an internal common trip and quick-make/quick-break contacts. It is HACR rated for HVAC equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL32080 |
| Series | THQL |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards (Types AL, AQ), GE PowerMark Gold Load Centers |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
7 answersWhich panelboards and load centers accept the THQL32080?
This plug-on breaker mounts directly into GE PowerMark Gold load centers and GE A-Series panelboards, specifically Types AL and AQ.
Is there a difference between the ABB THQL32080 and the General Electric THQL32080?
No. ABB acquired GE Industrial Solutions, and they continue to manufacture the THQL series. Breakers labeled ABB or General Electric are identical, fully interchangeable, and share the same UL listings for PowerMark Gold load centers.
What is the difference between the THQL32080 and THHQL32080?
The difference is the short-circuit interrupting rating. The THQL32080 is rated for 10 kAIC at 240VAC, whereas the THHQL32080 is rated for 22 kAIC. Both feature the same 80A thermal-magnetic trip and fit the same Q-Line panel spaces.
How much space does this 3-pole breaker require in the panel?
THQL Q-Line breakers are standard 1-inch per pole. This 3-pole breaker requires three adjacent 1-inch spaces, totaling 3 inches of overall panel width.
Is the THQL32080 HACR rated?
Yes, this breaker is HACR rated. It is approved for overcurrent protection on compatible heating, air conditioning, and refrigeration equipment circuits.
What are the lug tightening torque specifications for the THQL32080?
Torque requirements depend on the installed wire size. Tighten #6 to #4 AWG conductors to 45 in-lb, and #3 to 1/0 AWG conductors to 50 in-lb.
What is the rated operating temperature for the conductor wiring?
The terminal lugs are rated for use with 60 degree Celsius or 75 degree Celsius copper or aluminum conductors.
