ABB / General Electric THQL32080ST1 Miniature Circuit Breaker
- 80A
- 3 Pole
- Plug-On
ABB / General Electric
THQL32080ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL32080ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

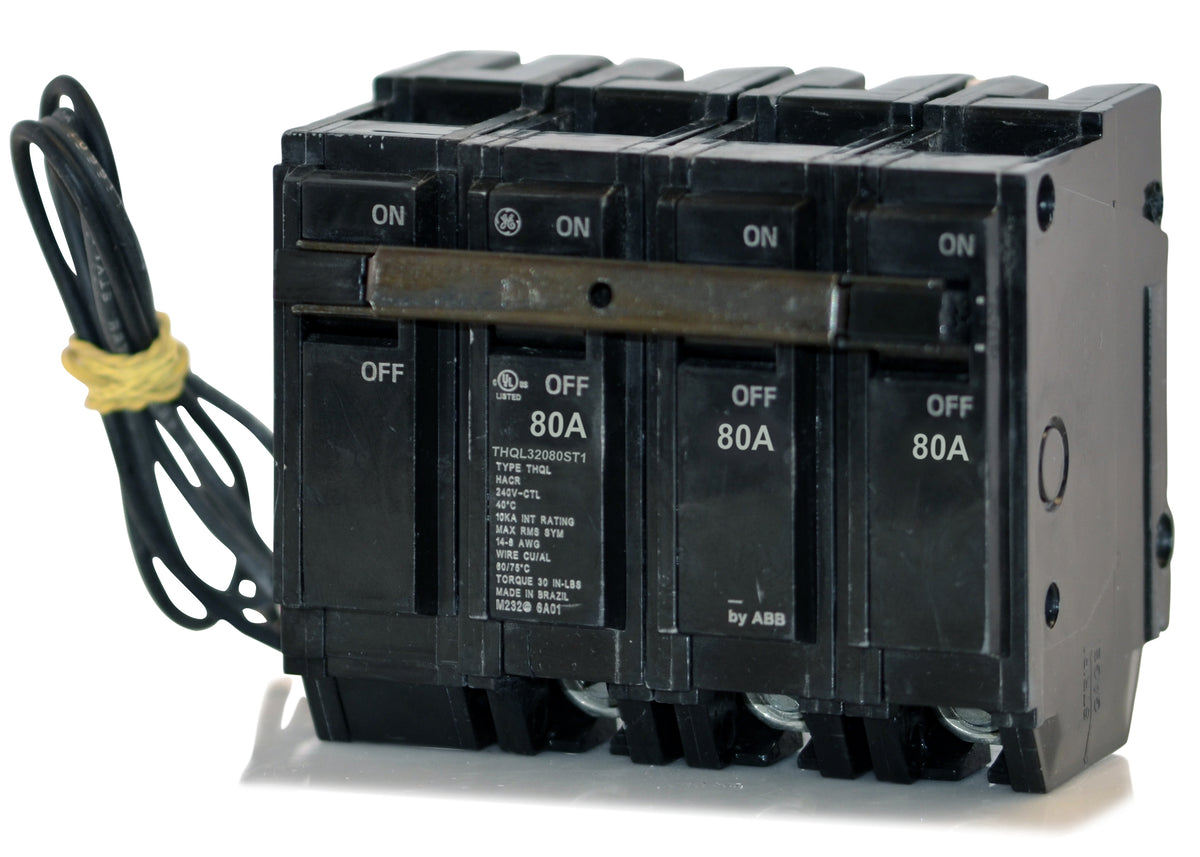

ABB / General Electric THQL32080ST1 - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL32100ST1
100A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL32050ST1
50A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL32030ST1
30A 3 Pole Miniature Circuit Breaker
Description
Providing remote tripping capabilities, the GE THQL32080ST1 is a 3-pole, 80A miniature circuit breaker with a 120VAC shunt trip. It operates at 240VAC and utilizes thermal-magnetic technology to deliver reliable protection. This Q-Line breaker features a plug-on mounting style for installation into GE A-Series panelboards, specifically Types AL and AQ. The box lugs accept 6-1/0 AWG copper or 4-1/0 AWG aluminum wiring.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL32080ST1 |
| Series | THQL |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards (Types AL, AQ) |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Auxiliary Switch |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
8 answersWhat does the ST1 suffix indicate on the THQL32080ST1?
The ST1 suffix means this breaker includes a factory-installed 120VAC shunt trip. This allows the breaker to be opened remotely by an external control signal, such as a fire alarm interface or emergency stop button.
Which panelboards are compatible with the THQL32080ST1?
This plug-in Q-Line breaker is designed for GE A-Series panelboards, specifically Types AL and AQ. It will not fit panels requiring bolt-on branch breakers.
Can I install this plug-in breaker in a panel that requires bolt-on connections?
No. The THQL series features a plug-in connection. If your GE panelboard requires bolt-on branch breakers, you must use the THQB series equivalent, such as the THQB32080ST1.
Are ABB and GE THQL circuit breakers interchangeable?
Yes. ABB acquired GE Industrial Solutions, and current production breakers may carry ABB, GE, or combined branding. They retain the same catalog numbers and are fully interchangeable for form, fit, and function.
What are the accepted wire gauges for the THQL32080ST1 box lugs?
The lugs accommodate 6 AWG to 1/0 AWG copper wire, or 4 AWG to 1/0 AWG aluminum wire. Always verify local codes for proper ampacity sizing and apply the manufacturer torque specifications printed on the breaker.
How does the shunt trip mechanism operate on this breaker?
The internal shunt trip coil is actuated by an external 120VAC control circuit. When voltage is applied to the coil leads, it mechanically forces the breaker to trip and open the circuit.
Is this breaker suitable for HVAC or generator emergency shutdown circuits?
Yes. The integrated 120V shunt trip makes this breaker ideal for commercial and light industrial applications that require a remote disconnect, including HVAC shutdowns and generator control panels.
How does the remote trip interact with the standard breaker protections?
The 120VAC shunt trip operates independently of the primary protection. The breaker still utilizes its thermal-magnetic Long-Time and Instantaneous (LI) functions to automatically trip during overloads or short circuits, even if no remote signal is sent.
