Siemens HGG2B030L Molded Case Circuit Breaker
- 30A
- 2 Pole
- Unit Mount
Siemens
HGG2B030L
Molded Case Circuit Breaker
Brand
Siemens
SKU
HGG2B030L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

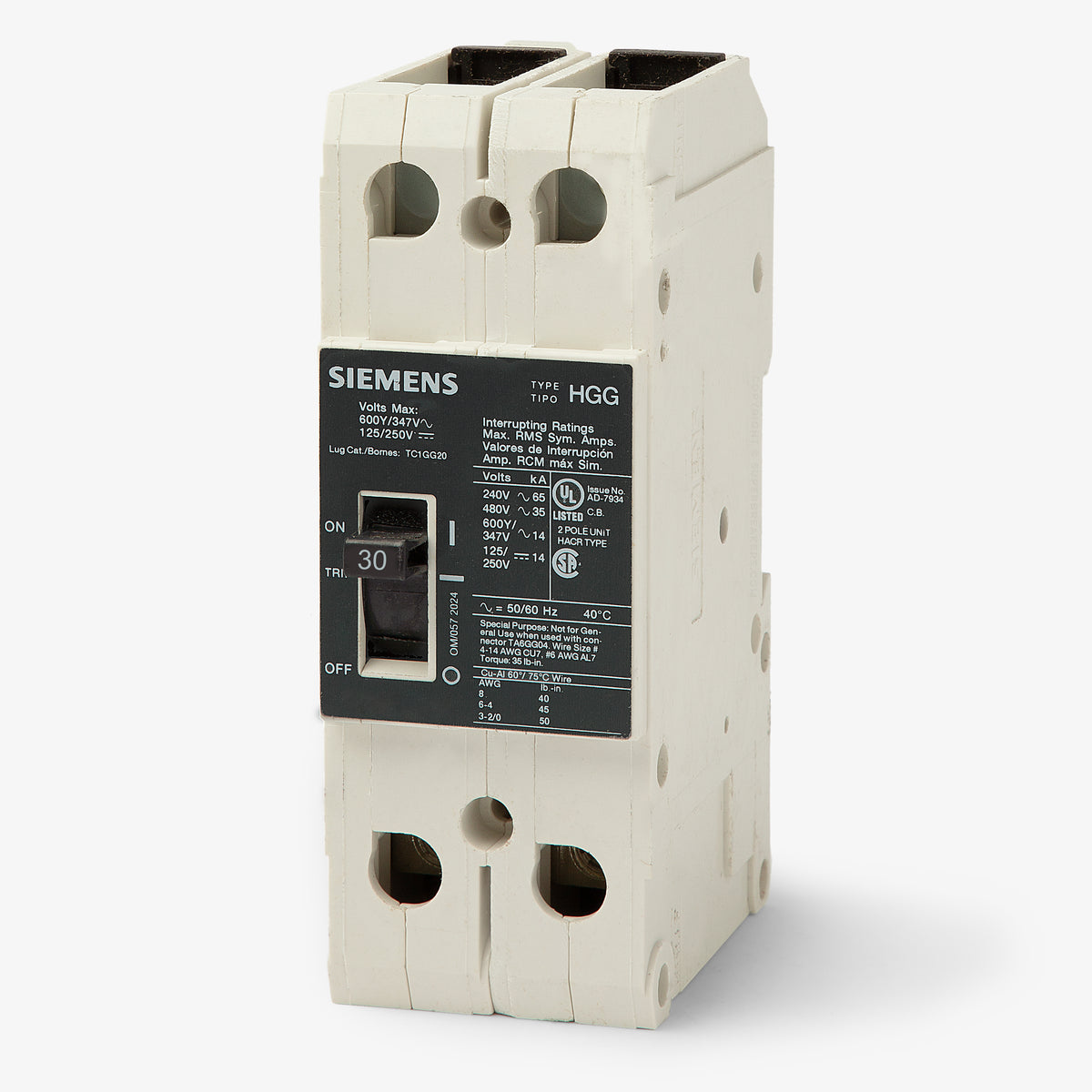

Siemens HGG2B030L - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
20A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Siemens HGG2B030L provides robust overcurrent protection in a compact unit mount design. This 2-pole, 30A breaker features fixed thermal and magnetic trip settings, making it ideal for general-purpose power distribution. It installs easily into Siemens enclosures, switchboards, and standard DIN rails. Rated for 65kA at 240V, this HACR and HID-rated MCCB replaces legacy NGG models and is replaced by the 3VA5130-5ED21-0AA0.Specifications
| Brand | Siemens |
|---|---|
| Series | HGG |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 30kA @ 250VDC |
| Frame Type | HGG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Enclosures, DIN Rail, Industrial Control Panels |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Side Lugs (TC1Q1) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, HID, UL |
| Temp Rating | 40C |
Product FAQs
5 answersHow is the HGG2B030L circuit breaker mounted within a panel?

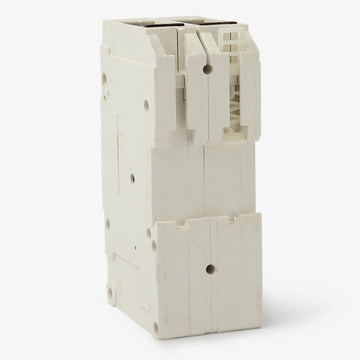

This unit mount breaker can be installed using standard screw mounting or snapped directly onto a DIN rail. This dual mounting capability makes it highly adaptable for industrial control panels and custom Siemens enclosures.
What are the acceptable wire sizes for the terminals on this 30A breaker?

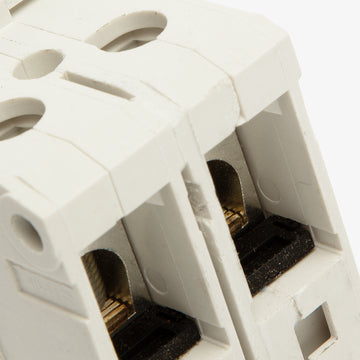

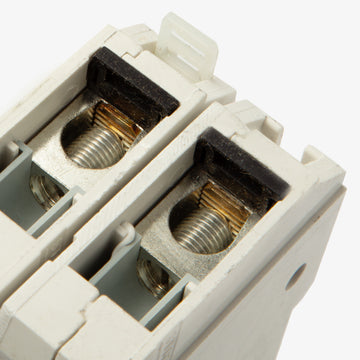

The feed-thru lugs accept 14 AWG to 10 AWG wire. Both copper (Cu) and aluminum (Al) conductors are permitted, provided they are sized appropriately for the 30 amp load and application requirements.
Is the HGG2B030L suitable for direct current (DC) applications?
Yes, in addition to its standard AC ratings, this breaker is rated for use in DC circuits up to 250VDC. It provides a 30kA interrupting rating for these DC applications.
What type of protection is provided by the fixed thermal magnetic trip unit?
The breaker utilizes an LI trip function, meaning it provides Long-Time (thermal) protection against sustained overloads and Instantaneous (magnetic) protection against short circuits. Both the thermal and magnetic trip points are fixed and non-adjustable.
Which breaker family and frame group does the HGG2B030L belong to?
It is part of the Siemens SENTRON family and falls under the GB/GG frame group. This is important to note when selecting compatible accessories, handle mechanisms, or enclosure mounting hardware designed specifically for GG frame breakers.
