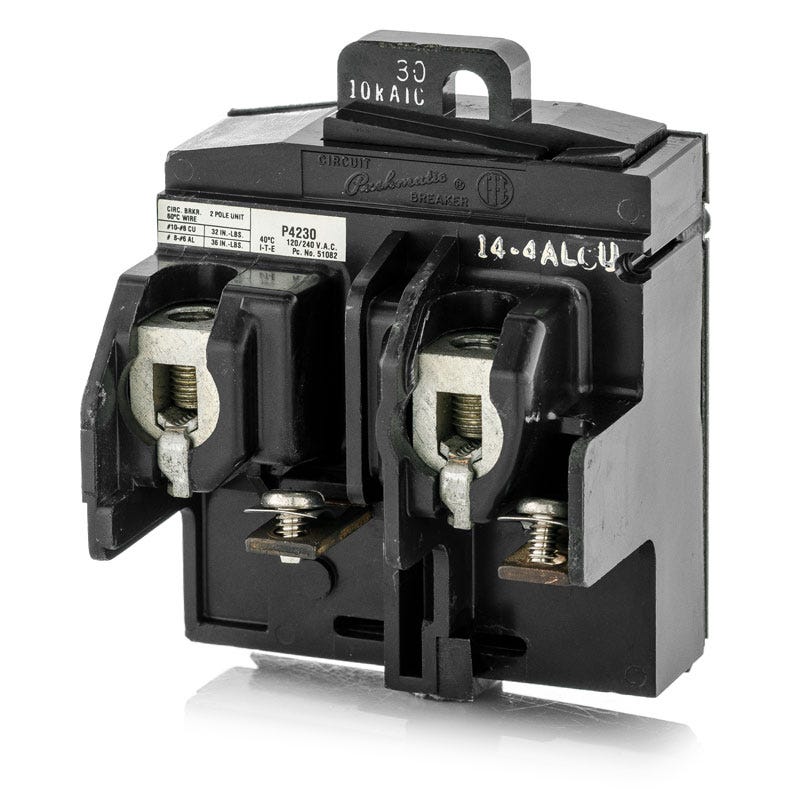

Siemens / ITE P4230 Molded Case Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
Siemens / ITE
P4230
Molded Case Circuit Breaker
Brand
Siemens / ITE
SKU
P4230
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens / ITE P4230 - 30A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
70A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Part of the classic Pushmatic line, this 30A, two-pole molded case circuit breaker provides reliable thermal-magnetic protection for residential and commercial systems. It is designed to replace aging units without requiring panel modifications. The bolt-on design mounts securely into vintage Pushmatic load centers, serving as an exact cross-reference for the UBIP230 and P230. Rated for 10kAIC at 120/240VAC, it features the signature push-button actuation that defines the series.Specifications
| Brand | Siemens / ITE |
|---|---|
| Series | P |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | Pushmatic Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhat load centers are compatible with the Siemens P4230?
The P4230 is designed specifically for vintage Pushmatic load centers. These panels were historically manufactured under the ITE, Bulldog, and Siemens brands.
What legacy part numbers does the P4230 replace?
This 30A, 2-pole breaker serves as a direct replacement for older P230 and UBIP230 Pushmatic circuit breakers.
How is the P4230 actuated?
Unlike standard toggle breakers, the P4230 features the signature push-button actuation characteristic of the Pushmatic series to manually open and close the circuit.
How does the trip mechanism function on the P4230?
The breaker uses fixed thermal-magnetic technology to deliver long-time overload protection and instantaneous short-circuit protection. The common trip function ensures both poles open simultaneously during a fault.
Does the P4230 require panel modifications for installation?
No, the bolt-on design is engineered to mount securely into existing Pushmatic load centers without requiring any modifications to the vintage panelboard.
