Siemens BF130A GFCI Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Siemens
BF130A
GFCI Molded Case Circuit Breaker
Brand
Siemens
SKU
BF130A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

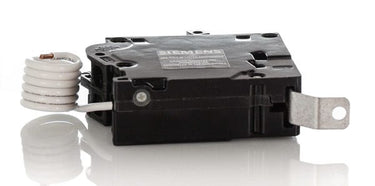

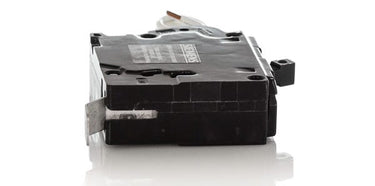

Siemens BF130A - 30A GFCI Molded Case Circuit Breaker
New
Quantity
Similar Items
25A GFCI Molded Case Circuit Breaker
20A GFCI Molded Case Circuit Breaker
20A GFCI Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Siemens BF130A provides reliable 5mA Class A ground-fault protection. This 30A, single-pole breaker operates on 120VAC systems to safeguard personnel from electrical shock hazards in damp or wet locations. It features a bolt-on mounting style designed specifically for Siemens P1, P2, and P3 panelboards. As a direct replacement for the legacy BF130, it ensures seamless integration into existing infrastructure.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BF130A |
| Series | BF |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the Siemens BF130A?
The BF130A is a bolt-on circuit breaker designed specifically for use in Siemens P1, P2, and P3 panelboards.
What level of ground fault protection does the BF130A provide?
This breaker provides 5mA Class A ground fault protection, which is designed to protect personnel from electrical shock hazards in damp or wet locations.
How is the neutral connected on this GFCI breaker?
The BF130A features a pigtail neutral connection that must be wired directly to the neutral bus bar of the panelboard for the ground fault sensing to function properly.
What wire sizes are accepted by the BF130A terminals?
The load lugs accept 14 to 10 AWG copper wire or 12 to 10 AWG aluminum wire.
Can the Siemens BF130A replace older ITE breakers?
Yes, the Siemens BF130A is a direct replacement for legacy ITE BF130 and ITE BF130A ground fault circuit breakers.
Does this breaker provide both overcurrent and ground fault protection?
Yes, the BF130A utilizes thermal magnetic trip technology for standard overload and short circuit protection, combined with a 5mA sensor for ground fault interruption.
