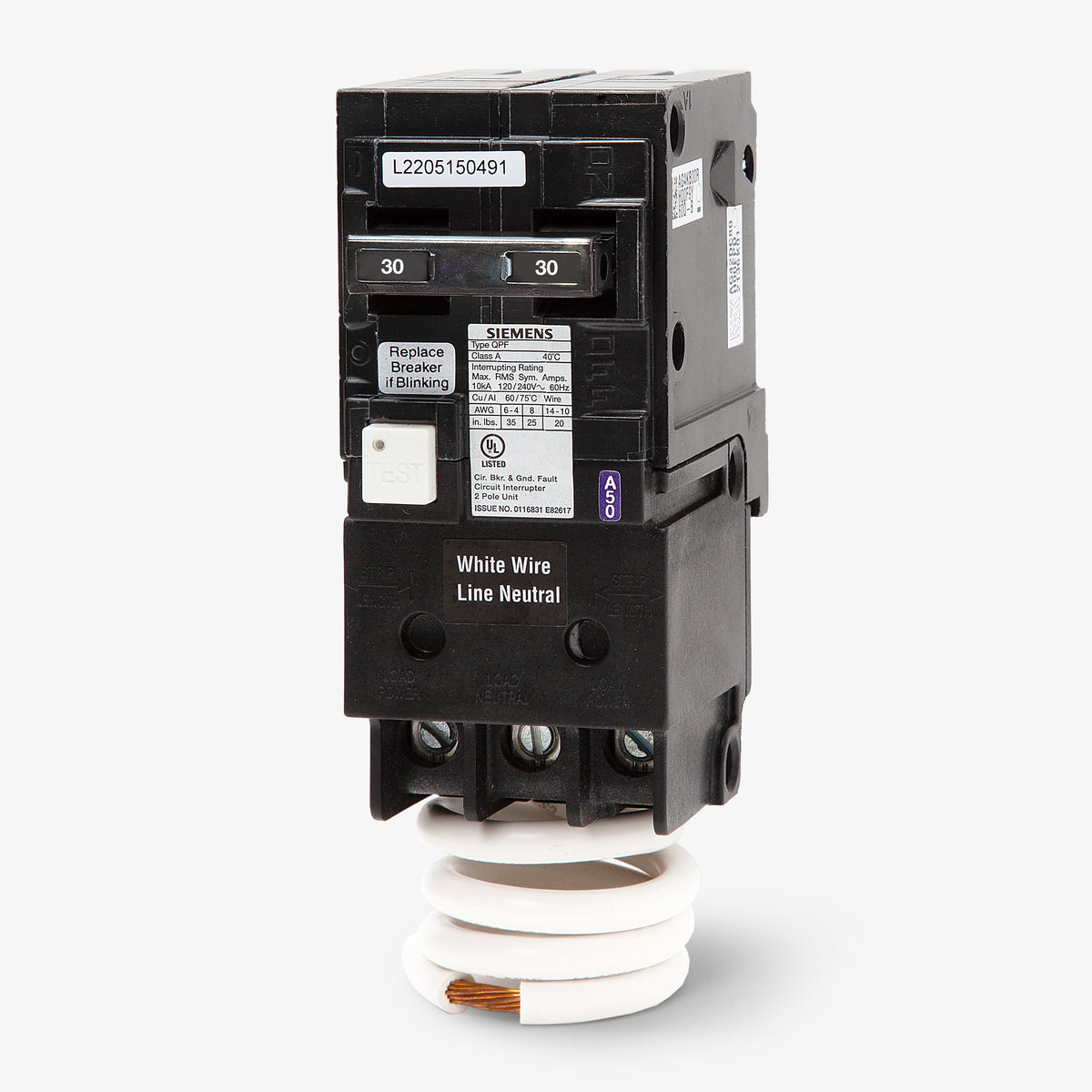

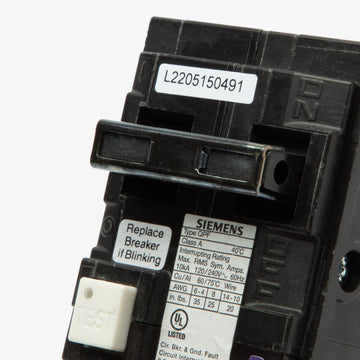

Siemens QF230 GFCI Miniature Circuit Breaker
- 30A
- 2 Pole

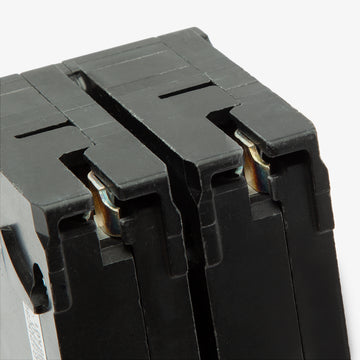

- Plug-On
Siemens
QF230
GFCI Miniature Circuit Breaker
Brand
Siemens
SKU
QF230
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QF230 - 30A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Siemens QF230 - 30A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QF230 |
| Series | QF |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers (EQ, ES, PL, Ultimate) |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Sold out
Quantity
Siemens QF230 - 30A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QF230-R |
| Series | QF |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers (EQ, ES, PL, Ultimate) |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Similar Items
35A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
Description
Rated 10 kAIC at 120/240V, this 30-amp GFCI breaker provides Class A 5mA personnel protection for residential and commercial applications. It mounts into Siemens EQ, ES, PL, and Ultimate load centers using a standard plug-on connection. Note that this legacy model has been replaced by the newer Q230GF. Featuring thermal-magnetic trip technology and a pigtail neutral, it ensures reliable ground fault interruption for wet or damp locations as required by NEC code.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QF230 |
| Series | QF |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers (EQ, ES, PL, Ultimate) |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
5 answersWhich load centers are compatible with the Siemens QF230 GFCI breaker?
This breaker is designed for use in Siemens EQ, ES, PL, and Ultimate series load centers. It requires two standard 1-inch spaces for installation.
What level of ground fault protection does the QF230 provide?
The QF230 provides Class A personnel protection. It is designed to trip when it detects a ground fault current imbalance of 5mA, making it suitable for wet or damp locations.
How is the neutral connection handled on the QF230?
This breaker features a standard pigtail neutral. The coiled white wire must be connected directly to the neutral bus bar in your panel for the ground fault sensing circuitry to function correctly.
Has the Siemens QF230 been replaced by a newer model?
Yes, the QF230 is a legacy catalog number. Siemens has replaced it with the Q230GF and QF230A models, which include updated self-testing features to meet newer UL requirements.
Can I use this breaker for a 240V hot tub or spa circuit?
Yes, as a 2-pole 120/240VAC GFCI breaker, it is commonly used to provide ground fault protection for 240V applications like hot tubs, spas, and large appliances in wet locations.
