Siemens QF240A GFCI Miniature Circuit Breaker
- 40A
- 2 Pole
- Plug-On
Siemens
QF240A
GFCI Miniature Circuit Breaker
Brand
Siemens
SKU
QF240A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

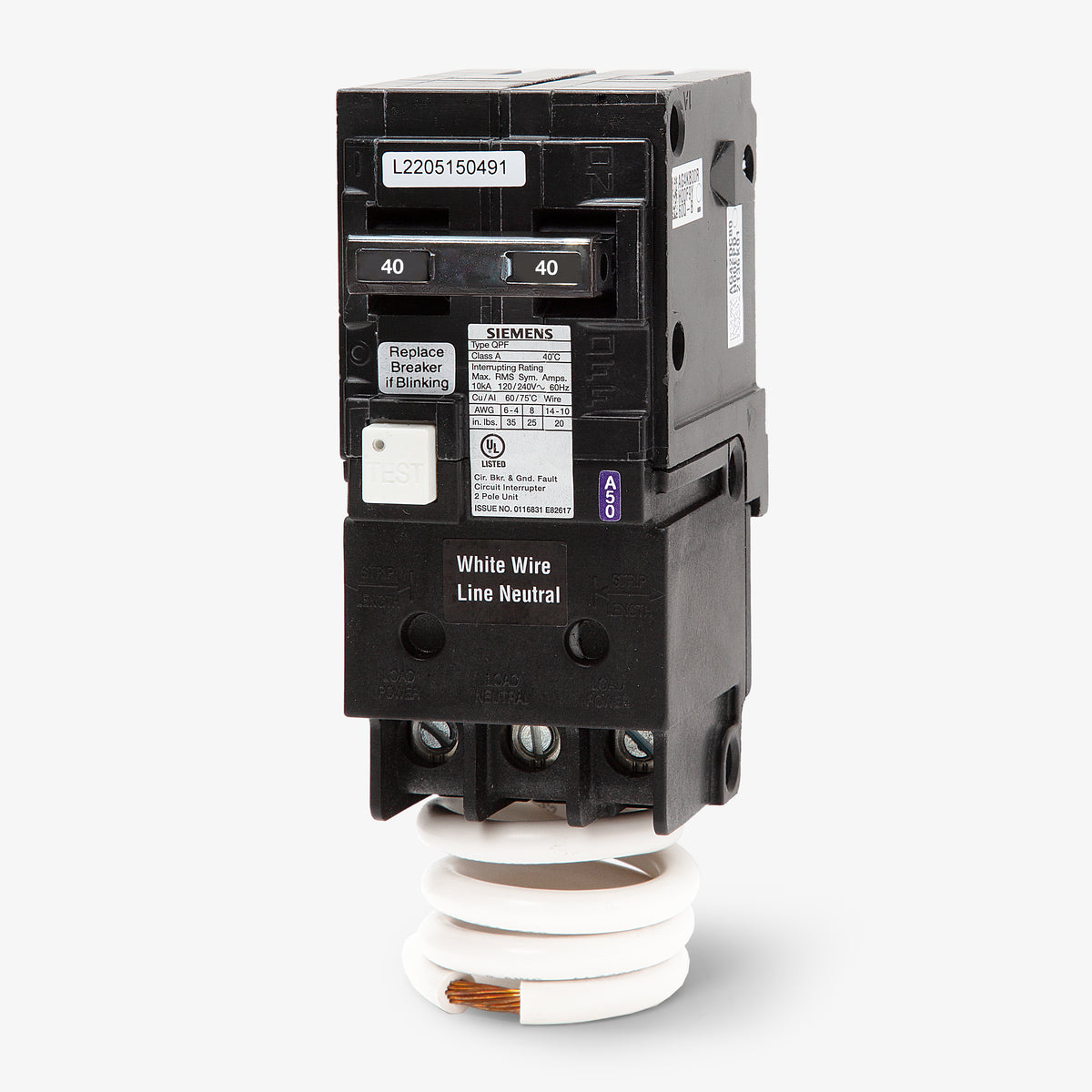

Siemens QF240A - 40A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
40A GFCI Miniature Circuit Breaker
45A GFCI Miniature Circuit Breaker
35A GFCI Miniature Circuit Breaker
Description
Engineered for wet and damp locations, the Siemens QF240A provides 5mA Class A ground-fault protection for 120/240V circuits. This 40A, two-pole GFCI breaker is ideal for residential applications like spas and outdoor installations. It mounts into Siemens EQ, ES, PL, and Ultimate load centers, serving as a replacement for the legacy QF240. Featuring a 10kAIC rating and a pigtail neutral, the unit includes an automated self-test function to ensure ongoing safety compliance.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QF240A |
| Series | QF |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens EQ, ES, PL, Ultimate Load Centers |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral Wire |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test, Common Trip |
Product FAQs
6 answersWhat level of ground-fault protection does the QF240A provide?
It provides Class A 5mA ground-fault protection. This is designed for personnel protection in wet or damp locations, such as spas, hot tubs, and outdoor equipment.
Can this 2-pole GFCI breaker be used on a 240V circuit without a load neutral?
Yes. A load neutral is not required for 240V-only applications. However, the white pigtail wire on the breaker must still be connected to the panel neutral bus bar to power the internal GFCI testing and sensing circuitry.
Which Siemens load centers accept the QF240A breaker?
This plug-on breaker is approved for installation in Siemens EQ, ES, PL, and Ultimate series load centers.
How is the neutral connection made for this breaker?
The QF240A utilizes a pigtail neutral. The attached white wire must be routed and terminated at the neutral bus bar in the panel, rather than plugging directly onto a neutral bar.
Is there a 40A Siemens GFCI breaker with a higher interrupting rating?
Yes. The QF240A has a standard 10kAIC rating. If your system requires a higher fault current capacity, the Siemens QF240H offers a 22kAIC rating.
What is the difference between the QF240A and the Q240GF?
The Q240GF is the newer generation of this 40A 2-pole GFCI breaker. The QF240A is the original legacy version. Both provide Class A 5mA protection and mount in the same Siemens enclosures.
