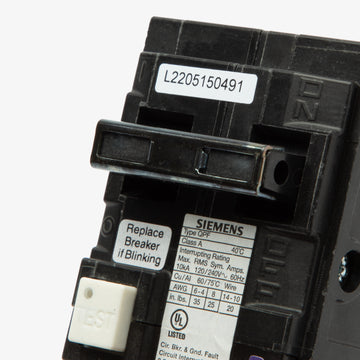

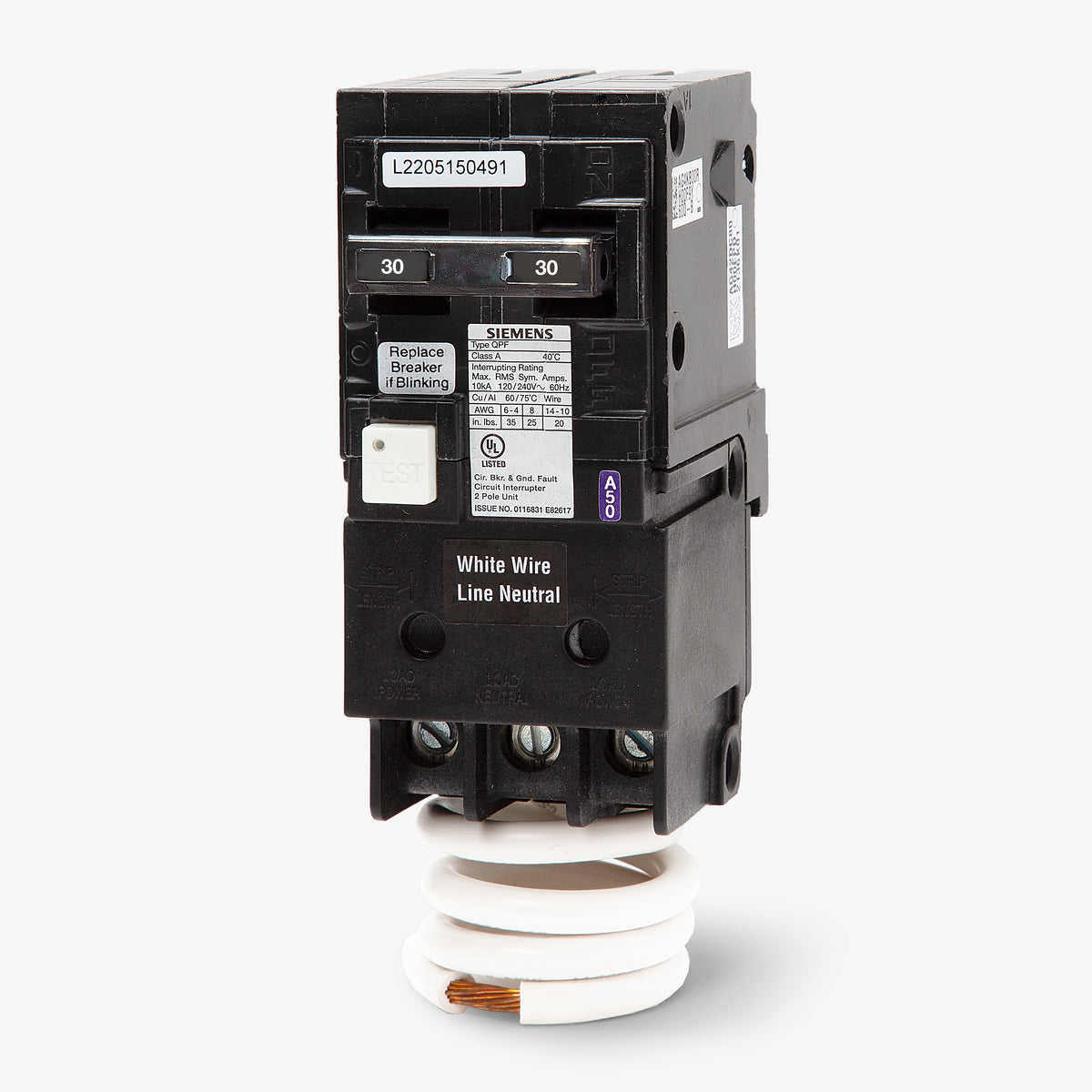

Siemens QF230A GFCI Miniature Circuit Breaker
- 30A
- 2 Pole

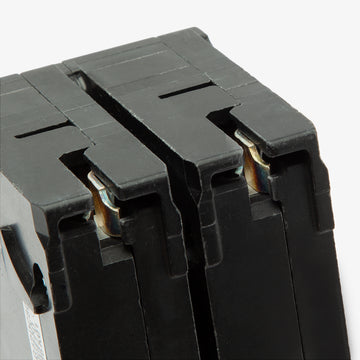

- Plug-On
Siemens
QF230A
GFCI Miniature Circuit Breaker
Brand
Siemens
SKU
QF230A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QF230A - 30A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
35A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
Description
The QF230A adds self-test functionality to standard 5mA Class A ground-fault protection. It is designed for 120/240VAC residential and commercial applications requiring 30 amps. Equipped with a plug-on mounting style and pigtail neutral, it fits seamlessly into Siemens EQ, ES, PL, and Ultimate panels. This model is officially replaced by the Q230GF. Thermal-magnetic trip technology and a 10kAIC rating ensure code-compliant safety for spas, bathrooms, and other damp locations.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QF230A |
| Series | QF |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers (EQ, ES, PL, Ultimate) |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test, Common Trip |
Product FAQs
6 answersWhat is the ground fault trip threshold for the QF230A?
This breaker provides Class A ground fault protection, which is designed to trip when it detects a ground fault current of 5mA to protect personnel from electrical shock.
What is the difference between the Siemens QF230 and the QF230A?
The QF230A is the direct replacement for the legacy QF230. The A suffix indicates the addition of automatic self-testing and lockout features to comply with updated UL 943 standards for GFCI protection.
Can the QF230A protect a straight 240V load that does not use a neutral wire?
Yes. For a 240V load without a neutral, connect the two hot wires to the breaker and leave the load neutral lug empty. The breaker's white pigtail wire must still be connected to the panel neutral bus to power the internal GFCI circuitry.
How is the pigtail neutral connected on this GFCI breaker?
The coiled white pigtail wire must be routed and connected directly to the neutral bus bar in your Siemens load center. This provides the 120V reference required for the breaker's internal testing and ground fault sensing electronics.
Which load centers are approved for the QF230A?
This breaker is compatible with Siemens EQ, ES, PL, and Ultimate series load centers. Verify that your specific panel label lists type QP or QPF breakers for approved use.
Does this breaker include an automatic self-test feature?
Yes. The QF230A includes a continuous self-testing function that automatically verifies the ground fault circuitry is working properly. If a failure is detected, the breaker will trip and lock out to prevent it from being reset.
