ABB / General Electric FBV26TE040RV Molded Case Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
ABB / General Electric
FBV26TE040RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBV26TE040RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

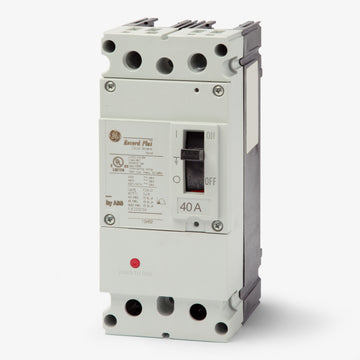

ABB / General Electric FBV26TE040RV - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBV26TE050RV
50A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricFBV26TE030RV
30A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricFBV26TE025RV
25A 2 Pole Molded Case Circuit Breaker
Description
Providing robust circuit protection, the GE FBV26TE040RV is a 2-pole, 40A molded case circuit breaker from the Record Plus line. It utilizes fixed thermal and magnetic trip units to safeguard industrial and commercial electrical systems. This bolt-on MCCB mounts into GE A-Series Type AD panelboards and includes load lugs and line panel connections. It can be replaced by the ABB Tmax XT series with a retrofit kit. Rated 65kAIC at 240V, it features current-limiting and reverse feed capabilities.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBV26TE040RV |
| Series | FBV |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Type AD Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Lugs, Line Panel Connections |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Naval Rated, Double-Break Rotary Contact Structure |
Product FAQs
7 answersWhich panelboards are compatible with the FBV26TE040RV circuit breaker?
This breaker is specifically designed for installation in GE A-Series Type AD panelboards.
What wire sizes and materials are supported by the FBV26TE040RV terminals?
The standard factory lugs accept both copper (Cu) and aluminum (Al) conductors ranging from 10 AWG to 4 AWG.
Is the trip unit on the FBV26TE040RV adjustable?
No, this Record Plus FB frame breaker is equipped with a fixed thermal and fixed magnetic trip unit. The Long-Time and Instantaneous (LI) protection settings cannot be adjusted in the field.
Why is the FBV26TE040RV listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. As a result, Record Plus circuit breakers like the FBV26TE040RV may arrive with either ABB or GE branding, but they are the exact same component and are fully interchangeable.
How is the FBV26TE040RV secured inside the panelboard?
It utilizes a bolt-on connection type, which fastens directly to the panelboard bus. This provides a secure, vibration-resistant connection suitable for commercial and industrial environments.
What fault conditions does the FBV26TE040RV protect against?
Utilizing thermal-magnetic technology, it provides Long-Time protection for standard overloads and Instantaneous protection to quickly clear severe short circuits.
What frame family does the FBV26TE040RV belong to?
It is part of the GE Record Plus family and uses the FB frame footprint. Verifying the frame size is critical when allocating panelboard space or selecting compatible accessories.
