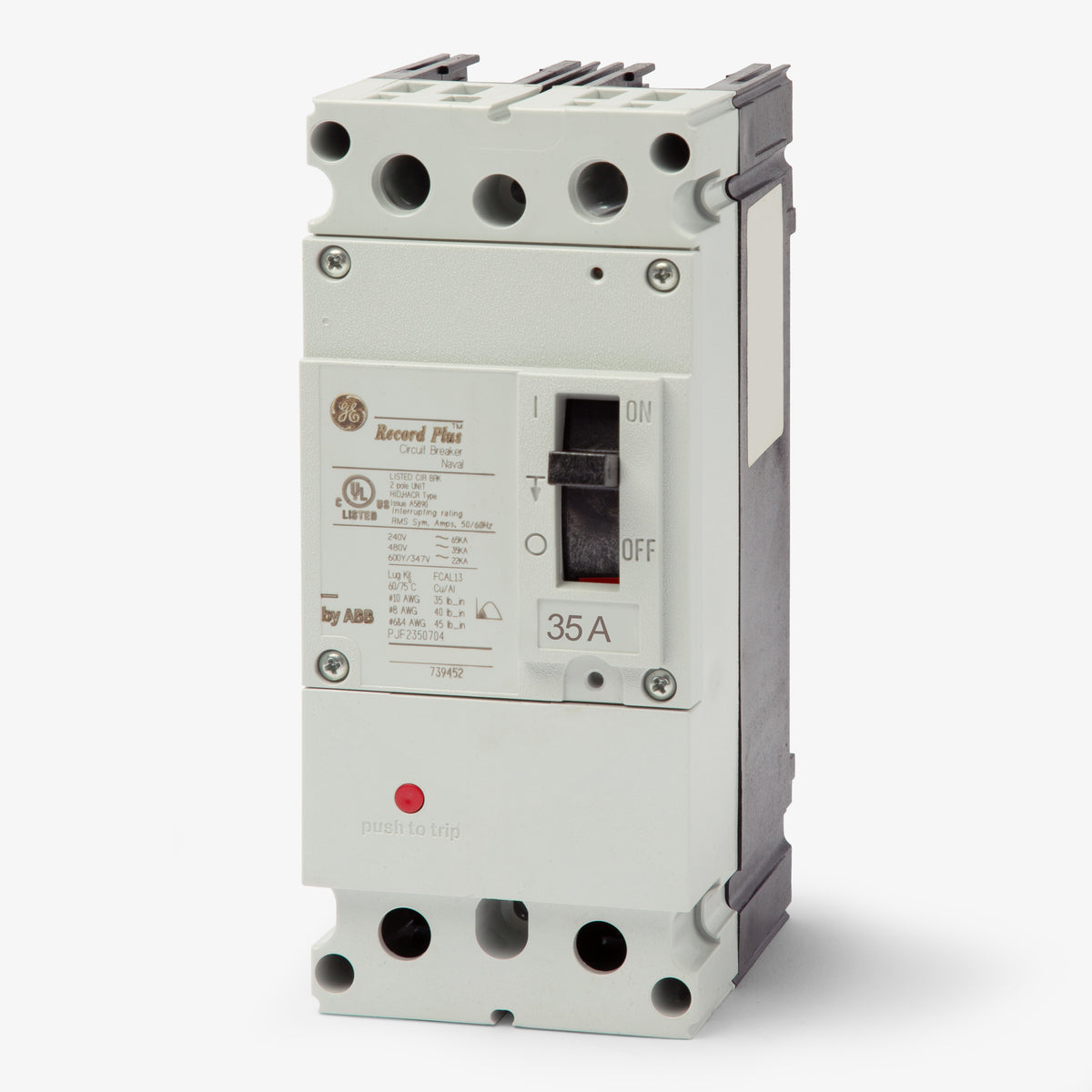

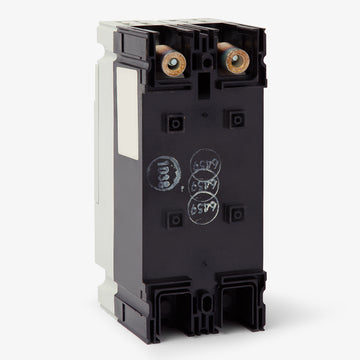

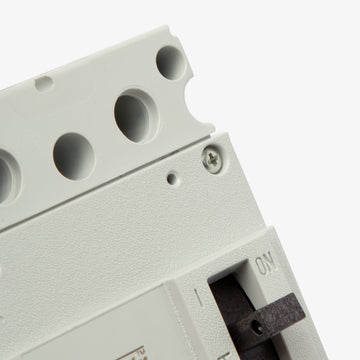

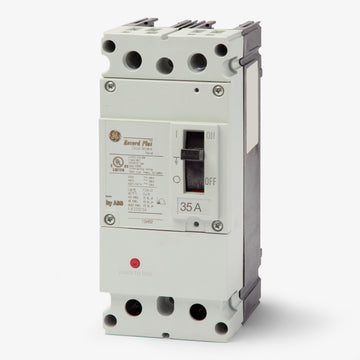

ABB / General Electric FBV26TE035RV Molded Case Circuit Breaker
- 35A
- 2 Pole
- Bolt-On
ABB / General Electric
FBV26TE035RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBV26TE035RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBV26TE035RV - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBV26TE025RV
25A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricFBV26TE050RV
50A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricFBV26TE020RV
20A 2 Pole Molded Case Circuit Breaker
Description
Engineered for reliable power distribution, the GE FBV26TE035RV is a 35A, 2-pole thermal-magnetic MCCB. Part of the Record Plus family, it delivers robust overcurrent and short-circuit protection for commercial and industrial facilities. This bolt-on breaker installs into GE A-Series AD and AD Plus panelboards. It includes factory-installed load lugs and panel connections for streamlined setup. With a 65kAIC rating at 240V and 35kAIC at 480V, this unit is HACR, HID, and Naval rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | FBV |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series AD / AD Plus Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Lugs, Line Panel Connections |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Reverse Feed |
Product FAQs
6 answersWhich panelboards are compatible with the FBV26TE035RV circuit breaker?

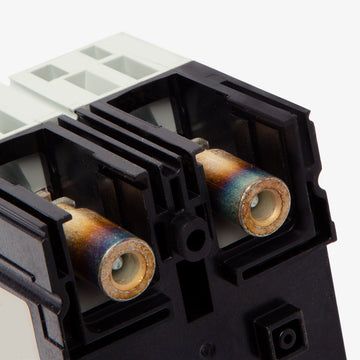

This breaker is designed specifically for use in GE A-Series AD and AD Plus panelboards. The RV suffix in the catalog number indicates it includes load lugs and specialized line connections for these specific panels.
Why is this breaker listed under both ABB and General Electric brands?
ABB acquired GE Industrial Solutions. As a result, Record Plus FB series breakers may be branded as either ABB or General Electric depending on the manufacturing date. Both brands represent the exact same FBV26TE035RV component.
What wire sizes and materials are accepted by the load lugs on this breaker?
The factory-installed load lugs accept 10 AWG to 4 AWG wire and are rated for both copper (Cu) and aluminum (Al) conductors.
Is the FBV26TE035RV suitable for reverse feed applications?
Yes, Record Plus FB frame circuit breakers feature a fixed thermal magnetic trip unit and are suitable for reverse feed installations.
What does the V in the FBV26TE035RV catalog number signify?
In the Record Plus FB frame family, the V designates the specific interrupting capacity tier. For this 2-pole breaker, it indicates a maximum rating of 65kAIC at 240VAC, 35kAIC at 480VAC, and 22kAIC at 600Y/347VAC.
Does this breaker mount to a standard DIN rail?
No, the FBV26TE035RV is a bolt-on molded case circuit breaker. It bolts directly to the bus of compatible GE A-Series AD or AD Plus panelboards rather than mounting to a DIN rail.
