Square D FA14040A Molded Case Circuit Breaker
- 40A
- 1 Pole
- I-Line
Square D
FA14040A
Molded Case Circuit Breaker
Brand
Square D
SKU
FA14040A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

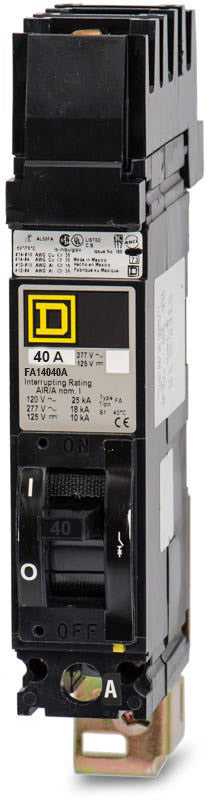

Square D FA14040A - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
90A 1 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
40A 1 Pole Molded Case Circuit Breaker
Description
Providing reliable overcurrent defense, the FA14040A is a 40A, 1-pole molded case circuit breaker from Square D. This legacy F-Frame unit handles demanding commercial loads. It installs into Square D I-Line panelboards via a secure plug-on mounting system. Facilities needing current equivalents can substitute this unit with the BDA140401. With an 18 kAIC rating at 277VAC, it features fixed thermal-magnetic trip functions, a Visi-Trip indicator, and a Phase A connection.Specifications
| Brand | Square D |
|---|---|
| Series | FA |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
5 answersWhat panelboards are compatible with the FA14040A circuit breaker?
The FA14040A features a plug-on I-Line connection that mounts directly onto the busbar of Square D I-Line panelboards and switchboards. It is not compatible with standard QO, NQ, or NF series load centers.
What type of wire can be used with the FA14040A terminals?
The factory-installed mechanical lugs accept 14 AWG to 1/0 AWG copper or aluminum conductors. Always apply an approved oxide-inhibiting joint compound when terminating aluminum wire to prevent corrosion.
Is the FA14040A suitable for direct current (DC) systems?
Yes, this thermal-magnetic breaker is dual-rated for both AC and DC systems. It can safely interrupt faults up to 10kA at 125VDC, making it a viable option for specific control circuits, battery banks, or industrial DC applications.
Is the Square D FA frame series still the current standard?
The FA series is a legacy F-frame molded case circuit breaker. While still widely supported and available, Schneider Electric has transitioned modern I-Line replacements to the PowerPact H-frame series for newer installations requiring updated technology.
What safety procedures apply when installing this I-Line breaker?
Because I-Line breakers plug directly into the panel busbar, the panelboard should be fully de-energized before installation. Licensed electricians must follow all NFPA 70E safety guidelines, including proper lockout/tagout procedures and wearing appropriate personal protective equipment (PPE).
