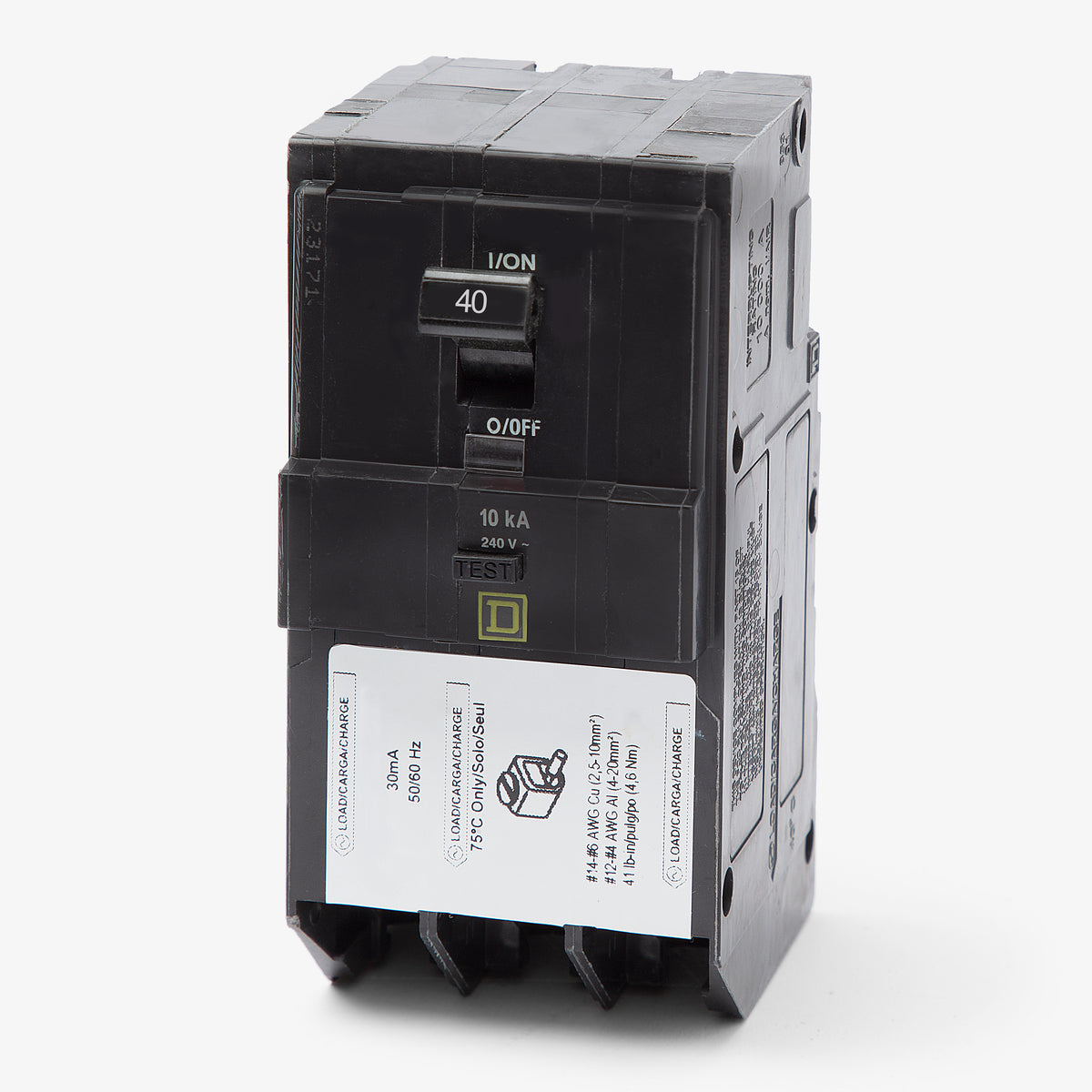

Square D QO340EPD GFEP Miniature Circuit Breaker
- 40A
- 3 Pole
- Plug-On
Square D
QO340EPD
GFEP Miniature Circuit Breaker
Brand
Square D
SKU
QO340EPD
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO340EPD - 40A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
15A GFEP Miniature Circuit Breaker
40A GFEP Miniature Circuit Breaker
Description
Built to safeguard sensitive machinery, this 40A three-pole breaker offers Class B 30mA ground fault protection. The plug-on design integrates seamlessly into Square D QO load centers and NQ panelboards for commercial deployments. Equipped with box lug terminals and the highly visible Visi-Trip red indicator, it ensures rapid troubleshooting and reliable thermal-magnetic defense against overloads and low-level faults.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO340EPD |
| Series | QO |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, UL 1053 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
8 answersWhat panels accept the QO340EPD circuit breaker?
This plug-on breaker is designed exclusively for Square D QO load centers and NQ panelboards. It is not compatible with Square D Homeline or panels from other manufacturers.
How many panel spaces does the QO340EPD require?
As a 3-pole QO breaker, it requires three standard 0.75-inch spaces in a compatible 3-phase QO or NQ panel.
What does the EPD designation mean on this breaker?
EPD stands for Equipment Protection Device. It provides a 30mA Class B ground fault trip threshold designed to protect machinery and equipment, such as heat tracing or snow melting systems, rather than personnel.
What is the difference between this EPD breaker and a standard GFCI?
A standard GFCI breaker trips at a 5mA threshold to protect personnel from electrical shock. This EPD breaker trips at 30mA to prevent equipment damage while avoiding nuisance tripping on systems with higher natural leakage current.
How is the neutral connection handled during installation?
This breaker features a pigtail neutral wire that must be connected directly to the panel neutral bar. This connection is required to power the internal ground fault monitoring circuitry.
Does this breaker provide visual trip indication?
Yes, it includes the Square D Visi-Trip indicator. When the breaker trips due to an overload, short circuit, or ground fault, a highly visible red flag appears in the indicator window to assist with fast troubleshooting.
Is there a bolt-on equivalent for the QO340EPD?
Yes. For commercial or industrial applications requiring a bolt-on connection, such as in NQOD or specific NQ panelboards, the equivalent model is the QOB340EPD.
Can this 3-pole breaker be installed in a single-phase panel?
No. This 3-pole breaker is designed specifically for 3-phase systems. It will not physically fit or operate correctly in a standard single-phase load center.
