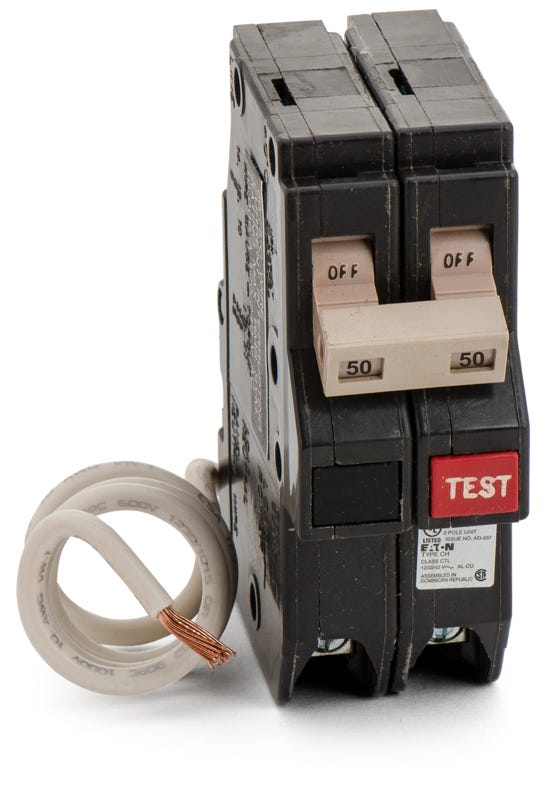

Eaton / Cutler-Hammer CH250GFI GFCI Miniature Circuit Breaker
- 50A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CH250GFI
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH250GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CH250GFI - 50A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer CH250GFI - 50A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH250GFI |
| Series | CH |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | 5mA Ground Fault Protection, Common Trip |
Sold out
Quantity
Eaton / Cutler-Hammer CH250GFI - 50A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH250GFI-R |
| Series | CH |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | 5mA Ground Fault Protection, Common Trip |
Similar Items
40A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerCHFN230GF
30A GFCI Miniature Circuit Breaker
Description
Part of the CH family, this 50-amp GFCI breaker delivers critical 5mA ground fault protection for demanding electrical loads. It is an excellent choice for satisfying NEC code requirements in wet environments, making it highly suitable for spa panels and outdoor equipment. The two-pole unit mounts into Eaton Type CH load centers using a plug-on configuration and includes a traditional pigtail neutral. This model is superseded by the CH250GFT self-test breaker. Rated 10kAIC at 120/240V.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH250GFI-R |
| Series | CH |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | 5mA Ground Fault Protection, Common Trip |
Product FAQs
6 answersWhat load centers are compatible with the CH250GFI breaker?
This breaker is designed exclusively for Eaton and Cutler-Hammer Type CH load centers. It requires two 3/4-inch spaces. It will not fit in Type BR panels or other 1-inch load centers.
How is the neutral connected on the CH250GFI?
This breaker features a pigtail neutral design. The coiled white pigtail wire must be connected directly to the panel's neutral bus bar, while the neutral wire from the load connects to the designated neutral lug on the breaker.
What is the ground fault trip threshold for the CH250GFI?
This breaker provides Class A ground fault protection, meaning it is designed to trip when it detects a ground fault leakage current of 5mA (milliamps).
Is there a difference between the Cutler-Hammer CH250GFI and the Eaton CH250GFI?
No. Eaton acquired Cutler-Hammer and continues to manufacture the CH series under the Eaton name. They are fully interchangeable and represent the exact same breaker.
Is the CH250GFI HACR rated for HVAC equipment?
Yes, all Eaton Type CH circuit breakers are HACR rated, making this breaker suitable for heating, air conditioning, and refrigeration equipment that requires 50-amp ground fault protection.
Can the CH250GFI be used for hot tub or spa disconnects?
Yes. This 50A GFCI breaker is commonly used to protect hot tubs and spas, and it is the exact replacement breaker used inside the Eaton CH50SPA 50-amp spa panel.
