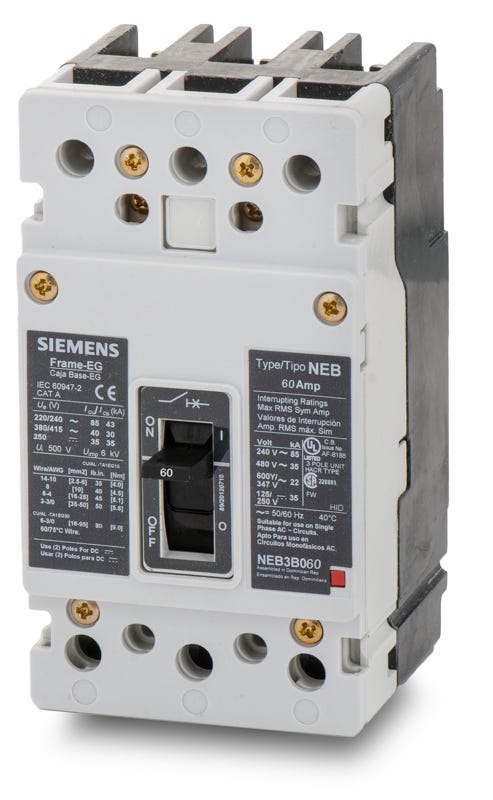

Siemens NEB3B060B Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Siemens
NEB3B060B
Molded Case Circuit Breaker
Brand
Siemens
SKU
NEB3B060B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

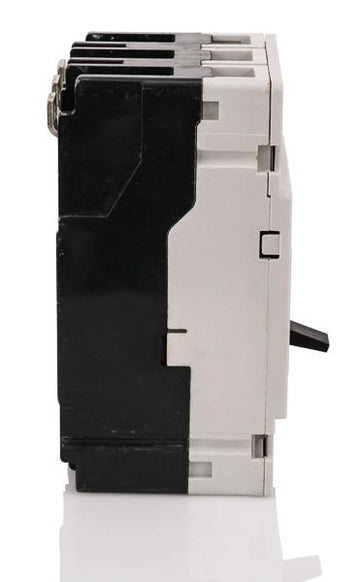

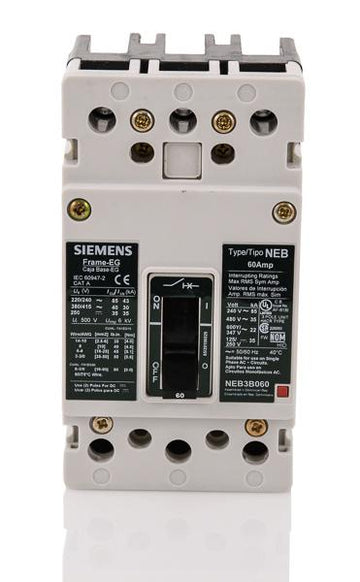

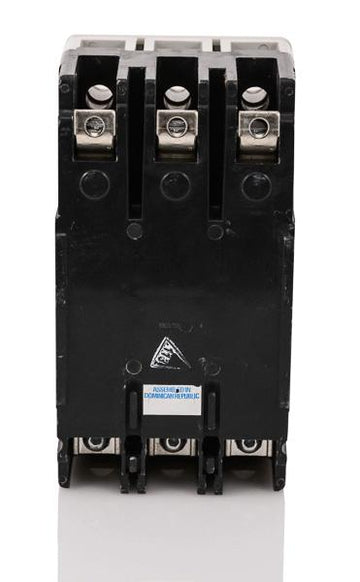

Siemens NEB3B060B - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Providing reliable commercial protection, the NEB3B060B is a 60A, 3-pole MCCB. It features a quick-make/quick-break mechanism with fixed thermal and magnetic trip functions. This NEB frame breaker mounts into Siemens P1, P2, and P3 panelboards via a bolt-on connection. It is replaced by the 3VA4160-6ED34-0AA0 model, which requires a 3VA41 mounting kit. Capable of handling 35kAIC at 480VAC, it ensures robust fault clearing. The unit is HACR rated and supports reverse feed applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | NEB3B060B |
| Series | NEB |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 35kA @ 250VDC |
| Frame Type | NEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs (TA1EG10) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhich Siemens panelboards accept the NEB3B060B?
This breaker mounts directly into Siemens P1, P2, and P3 panelboards. Because it uses a bolt-on connection, it secures directly to the panel bus for a reliable installation.
What is the direct replacement for the NEB3B060B?
The NEB3B060B has been replaced by the newer 3VA4160-6ED34-0AA0 model. Note that installing the replacement breaker requires a 3VA41 mounting kit for proper panelboard integration.
Is the NEB3B060B suitable for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Does the NEB3B060B support reverse feed installations?
Yes, this breaker is approved for reverse feed applications, allowing it to be back-fed when required by your system design.
Are the trip settings on the NEB3B060B adjustable?
No, this breaker features a non-interchangeable trip unit with fixed thermal and fixed magnetic trip functions. It utilizes a quick-make, quick-break mechanism for reliable fault clearing.
