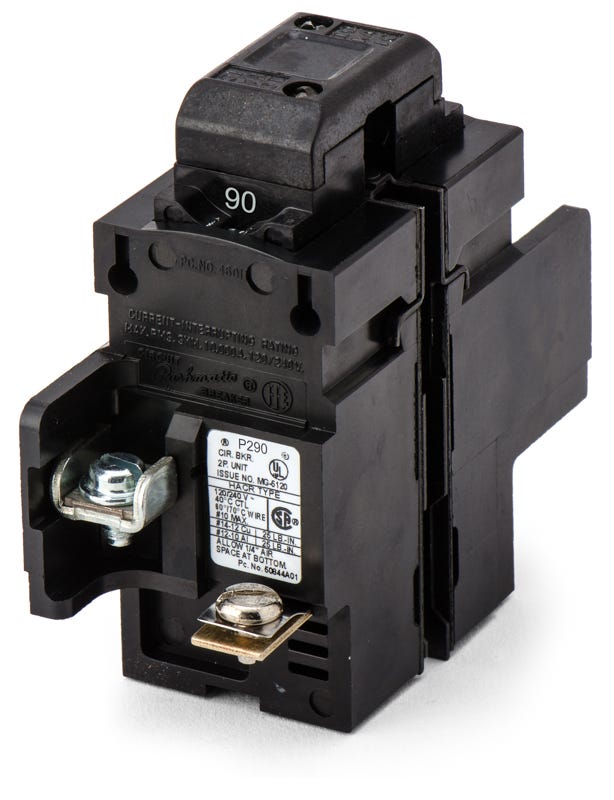

Siemens P290 Molded Case Circuit Breaker
- 90A
- 2 Pole
- Bolt-On
Siemens
P290
Molded Case Circuit Breaker
Brand
Siemens
SKU
P290
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens P290 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Siemens P290 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | P290 |
| Series | P |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | ITE / Siemens Pushmatic Load Centers |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Siemens P290 - 90A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | P290-R |
| Series | P |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | ITE / Siemens Pushmatic Load Centers |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
20A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
Providing robust overcurrent protection for legacy infrastructure, the Siemens P290 is a 90-amp, two-pole molded case circuit breaker. It features the signature push-button design characteristic of the Pushmatic family, offering a simple method for resetting tripped circuits. This component is engineered to fit seamlessly into older ITE and Siemens Pushmatic panelboards. The bolt-on mounting style ensures a secure connection to the busbar. It features a 10 kAIC rating at 120/240VAC.Specifications
| Brand | Siemens |
|---|---|
| Part Number | P290 |
| Series | P |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | ITE / Siemens Pushmatic Load Centers |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhich load centers accept the Siemens P290 breaker?
This breaker is specifically engineered to fit legacy ITE and Siemens Pushmatic load centers. It features the signature push-button design required for these older panels.
Is the Siemens P290 the same as the ITE P290?
Yes, Siemens acquired ITE and continues to manufacture replacements under the same P290 catalog number. It serves as a direct replacement for legacy ITE Pushmatic breakers.
How do you reset the P290 after a trip event?
Unlike traditional toggle breakers, the P290 uses the Pushmatic push-button mechanism. You simply press the indicator button on the front of the breaker to reset the circuit.
How does the P290 connect to the panel busbar?
It utilizes a bolt-on connection specific to Pushmatic load centers. The breaker must be screwed directly into the busbar to ensure a secure, vibration-resistant electrical contact.
Can I use aluminum wire with the P290 breaker?
Yes, the load lugs on the P290 are rated for both copper and aluminum conductors. When terminating aluminum wire, ensure you apply an appropriate antioxidant compound to prevent oxidation and maintain a secure connection.
