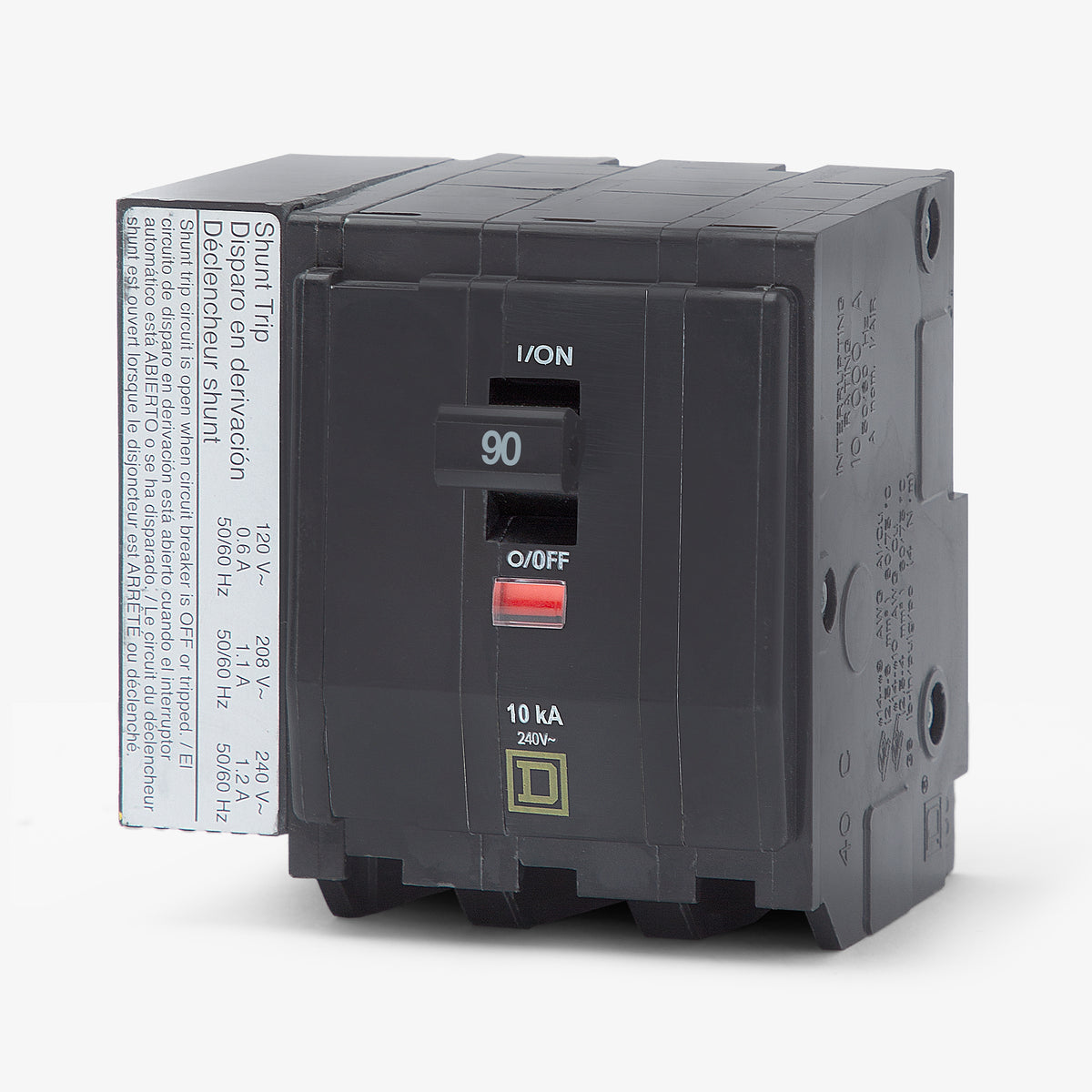

Square D QO390-1021 QO3901021 - 90A 3 Pole Miniature Circuit Breaker
- 90A
- 3 Pole

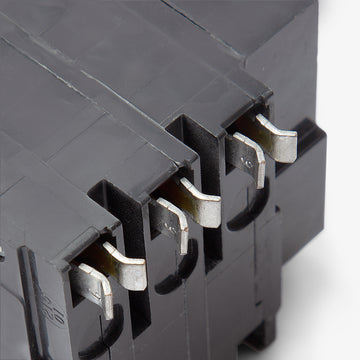

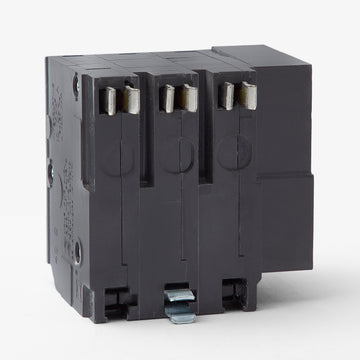

- Plug-On
Square D
QO390-1021
QO3901021 - 90A 3 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QO390-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO3901021 - 90A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
80A 3 Pole Miniature Circuit Breaker
70A 3 Pole Miniature Circuit Breaker
QO3601021 - 60A 3 Pole Miniature Circuit Breaker
Description
Integrating a 120/208/240VAC shunt trip mechanism, this specialized 90A breaker enables remote tripping capabilities for safety and control systems. The unit requires four panel spaces and installs into compatible Square D QO load centers and NQ panelboards. Along with its remote operation features, it includes the standard Visi-Trip visual indicator and carries a HACR rating, making it highly suitable for demanding commercial HVAC and industrial motor applications.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO390-1021 |
| Series | QO |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
8 answersWhat does the 1021 suffix mean on the QO3901021?
The 1021 suffix indicates that this breaker includes a factory-installed 120/208/240VAC shunt trip mechanism. This allows the breaker to be tripped remotely by applying voltage to the shunt trip coil, which is commonly used for emergency stops or safety control systems.
How many panel spaces does the QO3901021 require?
This breaker requires four standard 3/4-inch spaces in a QO load center or NQ panelboard. Three spaces are used for the 3-pole breaker itself, and one additional space is required for the factory-installed shunt trip module.
Can I add a shunt trip to a standard QO390 breaker in the field?
No. Square D shunt trips for QO breakers must be factory-installed. If you need a 90A 3-pole breaker with a 120/240VAC shunt trip, you must purchase the QO3901021 directly rather than attempting to modify a standard QO390.

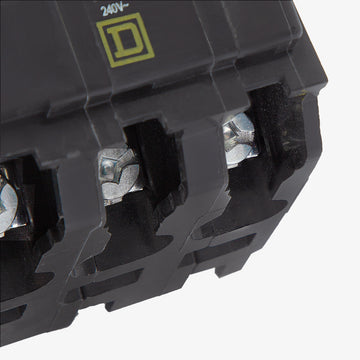

What wire sizes are accepted by the QO3901021 terminals?
The main box lugs on this 90A breaker accept 4 AWG to 2/0 AWG aluminum or copper wire. The separate shunt trip terminals accept two 14 AWG to 12 AWG copper wires for the control circuit.
What panels are compatible with the QO3901021?
This plug-on breaker is designed exclusively for use in Square D QO load centers and NQ panelboards. It is not compatible with Homeline (HOM) load centers or I-Line panelboards.
Does this breaker feature Visi-Trip indication?
Yes, the QO3901021 includes the Square D Visi-Trip visual indicator. When the breaker trips due to an overcurrent, short circuit, or a remote shunt trip command, the handle moves to a center position and a red indicator appears in the window.
Is the QO3901021 HACR rated?
Yes, this breaker carries a HACR rating. This makes it suitable for group motor applications commonly found in commercial heating, air conditioning, and refrigeration equipment.
What is the bolt-on equivalent to the QO3901021?
The bolt-on equivalent for use in NQ or NQOD panelboards is the QOB390VH1021. Note that the QO3901021 features a plug-on connection and cannot be bolted to the busbar.
